Lamborghini Diablo VT (1993-1998) - Dashboard Instruments

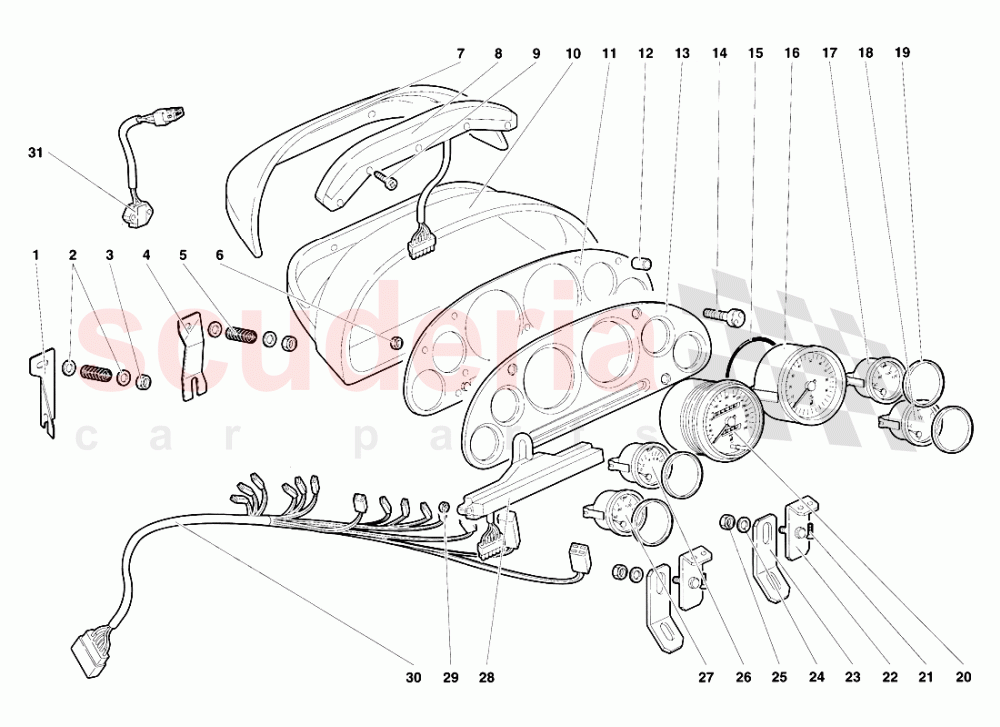

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414415	BRACKET	9414415 BRACKET STAFFA	$69.12	1
002	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	4
003	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	4
004	9414414	BRACKET	9414414 BRACKET STAFFA	$44.25	1
005	9414416	SPRING	9414416 SPRING MOLLA	$18.74 MSRP: ~~19.60~~ (4.4% off)	2
006	N0211963	NUT	N0211963 NUT DADO	$0.76	5
007	9414427	REAR DASHBOARD P.	9414427 REAR DASHBOARD P. CRUSCOTTO POST.	$191.07	1
008	6033214	WARNING LIGHTS	6033214 WARNING LIGHTS GRUPPOSPIE	$402.00	1
009	8700449	SCREW	8700449 SCREW VITE	$2.99 MSRP: ~~7.37~~ (59.4% off)	5
010	9414426	FRONT DASHBOARD P.	9414426 FRONT DASHBOARD P. CRUSCOTTO ANT.	-	1	Enquire
011	9414428	INSTRUMENT PANEL	9414428 INSTRUMENT PANEL PLANCIA PORTASTRUMENTI	$243.19	1
012	9414407	SPACER	9414407 SPACER DISTANZIALE	$32.82	5
013	9414429	PLATE	9414429 PLATE PIASTRA	$216.41	1
014	9414420	SCREW	9414420 SCREW VITE	$32.82	4
015	8609802	SEAL	8609802 SEAL ANELLO TENUTA	$0.62 MSRP: ~~7.28~~ (91.5% off)	1
016	6029656	REVOLUTION COUNT.	6029656 REVOLUTION COUNT. CONTAGIRI	$1,594.30	1
017	6029660	WATER TEMP. GAUGE	6029660 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACQUA	$400.75	1
018	6029657	FUEL LEVEL GAUGE	6029657 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	$269.25	1
019	6030886	SPACER	6030886 SPACER DISTANZIALE	$55.02	4
020	6029655	SPEEDOMETER-KM	6029655 SPEEDOMETER-KM CONTACHILOMETRI	$1,317.21	1
021	8700457	SCREW	8700457 SCREW VITE	$0.07	4
022	9414433	BRACKET	9414433 BRACKET STAFFA	$63.04	2
023	9414432	BRACKET	9414432 BRACKET STAFFA	$32.33	2
024	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	2
025	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	2
026	6029658	OIL PRESSURE GAUGE	6029658 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	$400.75	1
027	6029659	OIL TEMPERATURE GA.	6029659 OIL TEMPERATURE GA. INDICATORE TEMPERATURA OLIO	$631.53	1
028	6033213	WARNING LIGHTS	6033213 WARNING LIGHTS GRUPPO SPIE	$629.66	1
029	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT DADO	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
030	6134538	ELECT CABLE	6134538 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
031	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	$233.07	1
