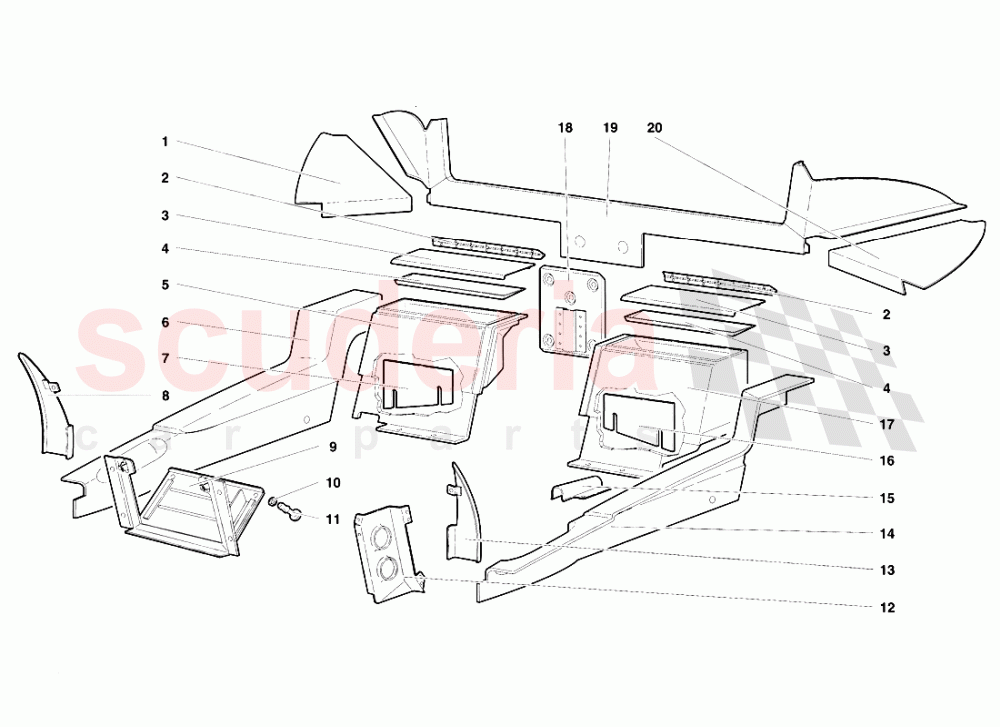

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9458233	RIGHT PANEL	9458233 RIGHT PANEL PANNELLO DX	$82.03 MSRP: ~~97.10~~ (15.5% off)	1
002	9458331	HINGE	9458331 HINGE CERNIERA	$11.87 MSRP: ~~12.05~~ (1.5% off)	2
003	9458329	COVER	9458329 COVER COPERCHIO	$450.37	2
004	9458330	FRAMING	9458330 FRAMING OSSATURA	$21.91 MSRP: ~~22.90~~ (4.3% off)	2
005	9458305	RIGHT UTILITY HOLDER	9458305 RIGHT UTILITY HOLDER PORTAOGGETTI DX	$1,356.30	1
006	9458300	RIGHT PANEL	9458300 RIGHT PANEL COPRIBRANCARDO DX	$1,059.55	1
007	9458360	BRACKET	9458360 BRACKET STAFFA	$9.81	1
008	9458311	RIGHT PANEL	9458311 RIGHT PANEL PANNELLO DX	$93.17	1
009	9458038	PLATE	9458038 PLATE PIASTRA POGGIAPIEDI	$399.50	1
010	9458350	RUBBER RING	9458350 RUBBER RING ANELLO GOMMA	$0.88 MSRP: ~~7.22~~ (87.8% off)	2
011	9458348	SCREW	9458348 SCREW VITE Dl FERMO	$12.52	2
012	4131808	PLATE	4131808 PLATE PIASTRA	$238.21 MSRP: ~~248.50~~ (4.1% off)	1
013	9458312	LEFT PANEL	9458312 LEFT PANEL PANNELLO SX	-	1	Enquire
014	9458301	LEFT PANEL	9458301 LEFT PANEL COPRIBRANCARDO SX	$1,059.55	1
015	9458358	PLATE	9458358 PLATE PIASTRA	$14.92	1
016	9458343	BRACKET	9458343 BRACKET STAFFA	$9.81	1
017	9458351	LEFT UTILITY HOLDER	9458351 LEFT UTILITY HOLDER PORTAOGGETTI SX	$946.65	1
018	9490324	SUPPORT - SUPPORTO	9490324 SUPPORT - SUPPORTO O	$67.23	1
019	9458239	PANEL	9458239 PANEL PANNELLO	$207.19	1
020	9458236	LEFT PANEL	9458236 LEFT PANEL PANNELLO SX	$66.26	1
