Electrical System 4 of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

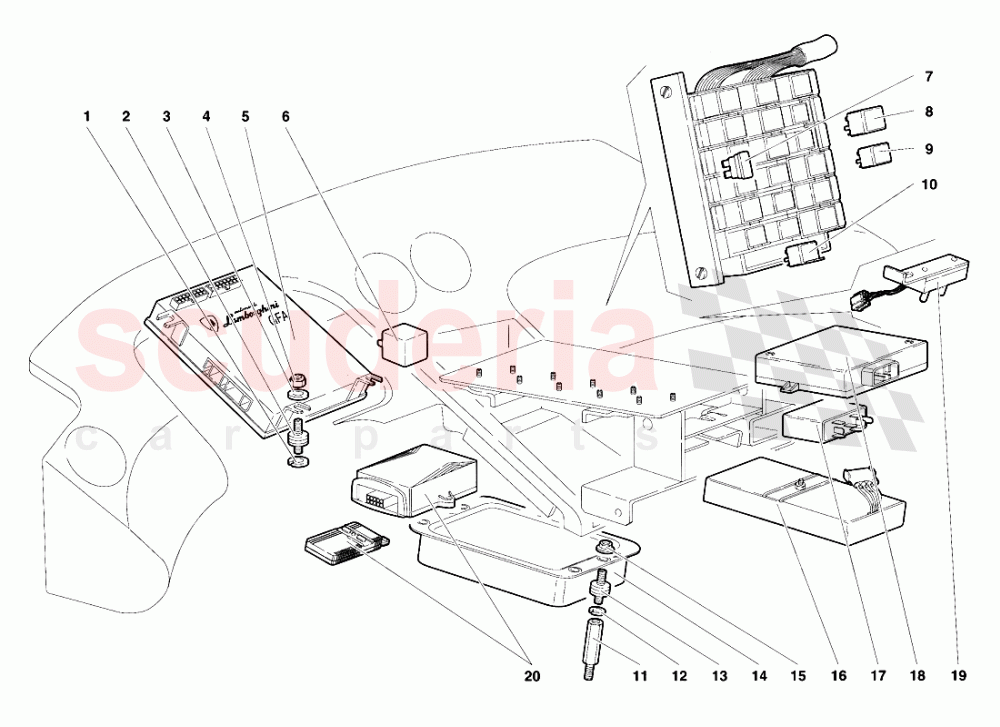

Lamborghini Diablo VT (1993-1998) - Electrical System 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	3
002	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$14.65	3
003	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
004	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	3
005	6033362	E.C.U. GFA	6033362 E.C.U. GFA CENTRALINA GFA	-	1	Enquire
006	6030676	RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10	6030676 RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10 TELERUTTORE	$157.58 MSRP: ~~160.00~~ (1.5% off)	1
007	1629258	FUSE	1629258 FUSE FUSIBILE20AMP.	$0.61 MSRP: ~~7.28~~ (91.6% off)	1
007	1629259	FUSE	1629259 FUSE FUSIBILE30AMP.	$0.61	1
007	1626697	FUSE	1626697 FUSE FUSIBILE10AMP.	$0.61	1
007	1626193	FUSE	1626193 FUSE FUSIBILE15AMP.	$0.61	1
007	1626192	FUSE	1626192 FUSE FUSIBILE5AMP.	$0.61	1
007	1629257	FUSE	1629257 FUSE FUSIBILE7.5AMP.	$1.50	1
007	1633966	FUSE	1633966 FUSE FUSIBILE25AMP.	$0.61	1
008	6319913	RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151	6319913 RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151 87A BOSCH 0.332.204.151	$63.16	1
008	6311154	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151	6311154 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 87 BOSCH 0.332.014.151	$48.08	1
009	6034961	RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112	6034961 RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112 RELAY/DIODO 87 BOSCH 0.332.014.1 12	$46.03	1
009	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 87B BOSCH 0.332.015.006	$57.69	1
010	6033965	DIODES ASSEMBLY	6033965 DIODES ASSEMBLY GRUPPO DIODI (ITALAMEC 454/10)	$75.80	1
011	1128397	STUD	1128397 STUD COLONNETTA	$35.30	2
012	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	2
013	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$14.65	2
014	5133176	KONI E.C.U.	5133176 KONI E.C.U. CENTRALINA KONI	$1,606.69	1
015	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	2
016	6030677	E.C.U.	6030677 E.C.U. CENTRALINA LOW TIRE	$676.17	1
017	5929915	LOCKING E.C.U.	5929915 LOCKING E.C.U. CENTR. CHIUSURA CENTR.	$444.38	1
018	6032856	E.C.U.	6032856 E.C.U. CENTRALINA ALZAVETRO (ANSOR)	$1,415.64	1
019	6133372	SWITCH	6133372 SWITCH INTERRUTTORE	$647.65	1
020	5934376	REMO. LOCKING E.C.U.	5934376 REMO. LOCKING E.C.U. CENTRALINA CHIUSURA CENTR.	$917.70	1
