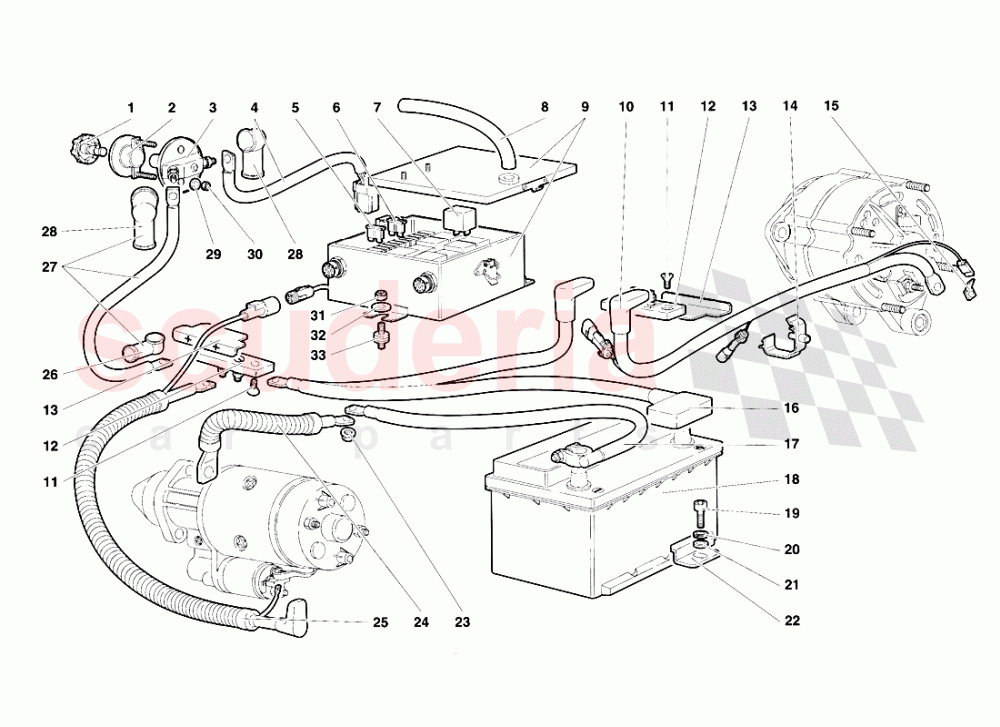

Lamborghini Diablo VT (1993-1998) - Electrical System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5931167	KNOB	5931167 KNOB POMELLO	$89.84	1
002	5931299	FLANGE	5931299 FLANGE FLANGIA	$233.25 MSRP: ~~243.50~~ (4.2% off)	1
003	5931163	CONNECTING BLOCK	5931163 CONNECTING BLOCK BLOCCHETTO CONNESSIONE	$235.12	1
004	6133729	ELECT CABLE	6133729 ELECT CABLE CAVO ELETTRICO	$33.93	1
005	1626193	FUSE	1626193 FUSE FUSIBILEDA15AMP.	$0.61	1
005	1626697	FUSE	1626697 FUSE FUSIBILEDA10AMP.	$0.61	1
005	1626192	FUSE	1626192 FUSE FUSIBILEDA5AMP.	$0.61	1
005	1633966	FUSE	1633966 FUSE FUSIBILEDA25AMP.	$0.61	1
006	6134479	DIODE D.R.L. - (Valid for SWITZERLAND version - April 1994) DIODE D.R.L.	6134479 DIODE D.R.L. - (Valid for SWITZERLAND version - April 1994) DIODE D.R.L. DIODO	$40.62	1
007	6311154	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151	6311154 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 TELERUT. 87 BOSCH 0.332.014.151	$48.08	1
007	6319913	RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151	6319913 RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151 TELERUT. 87a BOSCH 0.332.204.151	$63.16	1
007	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 TELERUT. 87b BOSCH 0.332.015.006	$57.69	1
008	6134396	PIPE	6134396 PIPE TUBO	$104.97	1
009	6133752	CASE	6133752 CASE SCATOLA	$315.56	1
010	6133727	ELECT CABLE	6133727 ELECT CABLE CAVO ELETTRICO	$632.76	1
011	8700801	SCREW	8700801 SCREW VITE	$0.21	4
012	1606170	ELECTRIC CONNECT.	1606170 ELECTRIC CONNECT. CONNESSIONE ELETTRICA	$62.76	2
013	6132457	PLATE	6132457 PLATE TARGHETTA	$6.76	2
014	8832006	STRAP	8832006 STRAP FASCETTA	$2.99	3
015	6131975	CONTACT PLATE	6131975 CONTACT PLATE PIASTRINA CONTATTO	$0.40	1
016	6134530	ELECT CABLE	6134530 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
017	6134536	ELECT CABLE	6134536 ELECT CABLE CAVO ELETTRICO	$88.16	1
018	1624948	BATTERY	1624948 BATTERY BATTERIA	$1,147.87	1
019	8700815	SCREW IN STOCK	8700815 SCREW VITE IN STOCK	$0.21 MSRP: ~~7.36~~ (97.1% off)	1
020	8410819	WASHER	8410819 WASHER RONDELLA	$2.29 MSRP: ~~2.40~~ (4.6% off)	1
021	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	1
022	4130608	PLATE	4130608 PLATE LAMIERINO	$32.49	1
023	8200824	NUT	8200824 NUT DADO	$0.46 MSRP: ~~7.31~~ (93.7% off)	1
024	6130080	ELECT CABLE	6130080 ELECT CABLE CAVO ELETTRICO	$310.47	1
025	6133726	ELECT CABLE	6133726 ELECT CABLE CAVO ELETTRICO	$400.75	1
026	6134287	SHIELD	6134287 SHIELD PROTEZIONE	$36.68	1
027	6133728	ELECT CABLE	6133728 ELECT CABLE CAVO ELETTRICO	$50.81	1
028	6132132	SHIELD	6132132 SHIELD PROTEZIONE	$3.85	2
029	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
030	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	2
031	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	3
032	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
033	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$14.65	3
