Lamborghini Diablo VT (1993-1998) - Electrical System (Valid for R.H.D. Version - April 1994) 3

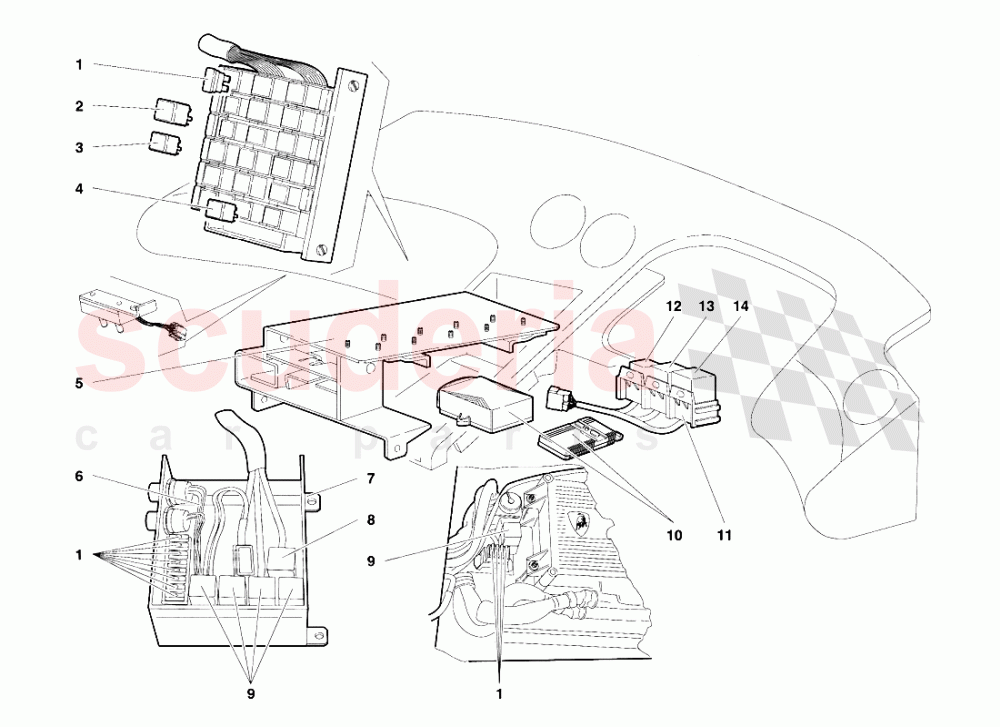

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1629259	FUSE	1629259 FUSE (Valid for R.H.D. version - April 1994) FUSIBILE 30 AMP.	-	1	Enquire
001	1633966	FUSE	1633966 FUSE (Valid for R.H.D. version - April 1994) FUSIBILE 25 AMP.	-	1	Enquire
001	1626697	FUSE	1626697 FUSE (Valid for R.H.D. version - April 1994) FUSIBILE10AMP.	-	1	Enquire
001	1629258	FUSE	1629258 FUSE (Valid for R.H.D. version - April 1994) FUSIBILE 20 AMP.	-	1	Enquire
001	1629257	FUSE	1629257 FUSE (Valid for R.H.D. version - April 1994) FUSIBILE 7,5 AMP.	-	1	Enquire
001	1626193	FUSE	1626193 FUSE (Valid for R.H.D. version - April 1994) FUSIBILE 15 AMP.	-	1	Enquire
001	1626192	FUSE	1626192 FUSE (Valid for R.H.D. version - April 1994) FUSIBILE5AMP.	-	1	Enquire
002	6311154	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151	6311154 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 (Valid for R.H.D. version - April 1994) 87 BOSCH 0.332.014.151	-	1	Enquire
002	6319913	RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151	6319913 RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151 (Valid for R.H.D. version - April 1994) 87A BOSCH 0.33.204.151	-	1	Enquire
003	6034961	RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112	6034961 RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112 (Valid for R.H.D. version - April 1994) /DIODO BOSCH 87 0.332.014.112	-	1	Enquire
003	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 (Valid for R.H.D. version - April 1994) 87B BOSCH 0.332.015.006	-	1	Enquire
004	6034540	DIODES ASSEMBLY	6034540 DIODES ASSEMBLY (Valid for R.H.D. version - April 1994) GRUPPO DIODI (ITALAMEC331.10)	-	1	Enquire
005	9414627	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	9414627 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for R.H.D. version - April 1994) O	-	1	Enquire
006	6130615	ELECT CABLE	6130615 ELECT CABLE (Valid for R.H.D. version - April 1994) CABLAGGIO	-	1	Enquire
007	6130086	RELAY HOUSING	6130086 RELAY HOUSING (Valid for R.H.D. version - April 1994) SCATOLA RELAY POST.	-	1	Enquire
008	1625477	RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 384	1625477 RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 384 (Valid for R.H.D. version - April 1994) ITALAMEC 384	-	1	Enquire
009	6319913	RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151	6319913 RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151 (Valid for R.H.D. version - April 1994) BOSCH 0.332.204.151	-	1	Enquire
009	6311154	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151	6311154 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 (Valid for R.H.D. version - April 1994) BOSCH 0.332.014.151	-	1	Enquire
009	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 (Valid for R.H.D. version - April 1994) BOSCH 0.332.015.006	-	1	Enquire
010	5934378	REMO. LOCKING E.C.U.	5934378 REMO. LOCKING E.C.U. (Valid for R.H.D. version - April 1994) CENTRALINA CHIUSURA CENTR.	-	1	Enquire
011	6134626	RELAYS SUPPORT	6134626 RELAYS SUPPORT (Valid for R.H.D. version - April 1994) SUPPORTO RELAYS	-	1	Enquire
012	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 (Valid for R.H.D. version - April 1994) BOSCH 87B 0332.015.006	-	1	Enquire
013	6319913	RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151	6319913 RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151 (Valid for R.H.D. version - April 1994) 87A BOSCH 0332.204.151	-	1	Enquire
014	6030676	RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10	6030676 RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10 (Valid for R.H.D. version - April 1994) ITALAMEC 424.10	-	1	Enquire
