Driven Shaft of Lamborghini Lamborghini Diablo SV (1999)

View All

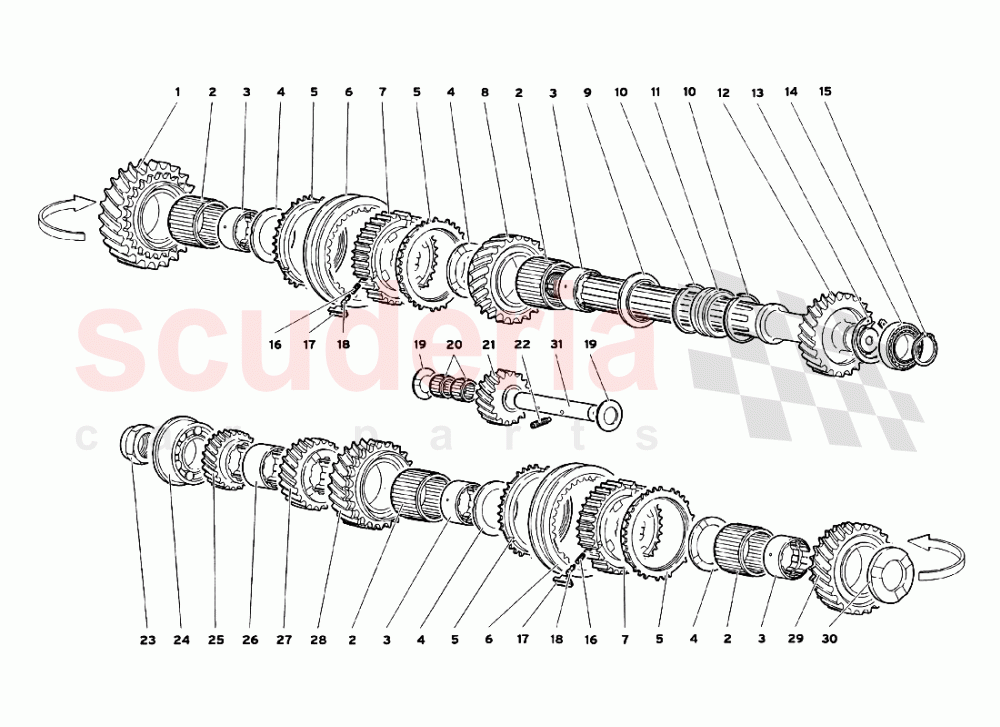

Lamborghini Diablo SV (1999) - Driven Shaft

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	2424886	GEAR	2424886 GEAR INGRANAGGIO 1 - MARCIA	$1,978.92 MSRP: ~~2,060.00~~ (3.9% off)	1
002	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIA A RULLI	$47.83 MSRP: ~~50.10~~ (4.5% off)	4
003	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$508.06	4
004	2424864	WASHER	2424864 WASHER RONDELLA	$188.17	4
005	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,527.07	4
006	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING MANICOTTO DISINNESTO	$1,383.39	2
007	2421680	SYNCHRONIZER	2421680 SYNCHRONIZER CORPO SINCRONIZZATORE	$323.82	2
008	2424891	GEAR	2424891 GEAR INGRANAGGIO R.M.	$446.64	1
009	2424860	SHIM	2424860 SHIM DISTANZIALE	$128.41	1
010	8576201	RETAINER RING	8576201 RETAINER RING ANELLO RITEGNO	$3.06	2
011	8524011	BEARING	8524011 BEARING CUSCINETTO	$149.11	1
012	2437436	COUNTERSHAFT	2437436 COUNTERSHAFT ALBERO SECONDARIO	$3,418.11	1
013	8576601	RETAINER RING	8576601 RETAINER RING ANELLO RITEGNO	$0.82 MSRP: ~~7.26~~ (88.7% off)	1
014	8523009	BEARING	8523009 BEARING CUSCINETTO	$67.17	1
015	8583001	RETAINER RING	8583001 RETAINER RING ANELLO RITEGNO	$9.67	1
016	2421418	SPRING	2421418 SPRING MOLLA	$67.60	6
017	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	$29.70	6
018	2421419	PIN	2421419 PIN PERNO	$34.81	6
019	2424862	WASHER	2424862 WASHER RONDELLA	$228.30	2
020	8522008	ROLLER CAGE	8522008 ROLLER CAGE GABBIA A RULLI	$27.11	2
021	2424869	GEAR	2424869 GEAR INGRANAGGIO R.M.	$243.19	1
022	8700649	SCREW	8700649 SCREW VITE	$7.93 MSRP: ~~8.25~~ (3.9% off)	1
023	2431824	NUT	2431824 NUT DADO	$269.25	1
024	8503006	BEARING	8503006 BEARING CUSCINETTO	$694.79	1
025	24001213	GEAR	24001213 GEAR INGRANAGGIO 5 - MARCIA	$256.84 MSRP: ~~260.00~~ (1.2% off)	1
026	24001451	SPLINED BUSHING	24001451 SPLINED BUSHING BOCCOLA DENTATA	$59.68	1
027	24001638	GEAR	24001638 GEAR INGRANAGGIO 4 - MARCIA	$264.89	1
028	2424888	GEAR	2424888 GEAR INGRANAGGIO 3 - MARCIA	$1,749.38 MSRP: ~~1,820.00~~ (3.9% off)	1
029	2427098	GEAR	2427098 GEAR INGRANAGGIO 2 - MARCIA	$5,001.01	1
030	2424863	WASHER	2424863 WASHER RONDELLA	$99.14 MSRP: ~~100.50~~ (1.4% off)	1
031	2424865	SMALL SHAFT	2424865 SMALL SHAFT ALBERINO	$112.20	1
