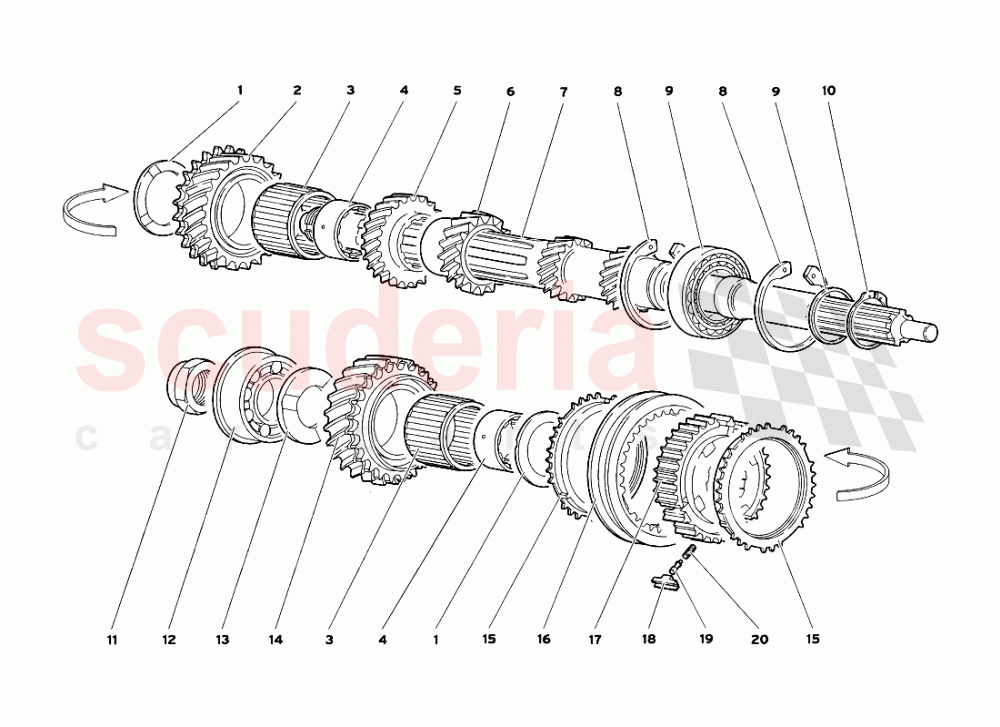

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2424864	WASHER	2424864 WASHER DISTANZIALE	$188.17	2
002	24001637	GEAR	24001637 GEAR INGRANAGGIO 4 - MARCIA	-	1	Enquire
003	8524701	ROLLER CAGE	8524701 ROLLER CAGE GABBIA A RULLI	$47.83 MSRP: ~~50.10~~ (4.5% off)	2
004	2420124	SPLINED BUSHING	2420124 SPLINED BUSHING BOCCOLA DENTATA	$508.06	2
005	2424873	GEAR	2424873 GEAR INGRANAGGIO 3 - MARCIA	$255.59 MSRP: ~~259.00~~ (1.3% off)	1
006	2427097	GEAR	2427097 GEAR INGRANAGGIO 2 - MARCIA	$251.24 MSRP: ~~254.00~~ (1.1% off)	1
007	2430938	MAIN SHAFT	2430938 MAIN SHAFT ALBERO PRIMARIO	$1,062.04 MSRP: ~~1,075.00~~ (1.2% off)	1
008	8578001	RETAINER RING	8578001 RETAINER RING ANELLO RITEGNO	$6.61	2
009	8524010	BEARING	8524010 BEARING CUSCINETTO	-	1	Enquire
010	2424859	RING	2424859 RING ANELLO	$23.65	1
011	2431824	NUT	2431824 NUT DADO	$269.25	1
012	8503006	BEARING	8503006 BEARING CUSCINETTO	$694.79	1
013	2424861	SPACER	2424861 SPACER DISTANZIALE	$146.92	1
014	24001212	GEAR	24001212 GEAR INGRANAGGIO 5 - MARCIA	$436.73	1
015	2421416	FRICTION RING	2421416 FRICTION RING ANELLO SINCRONIZZATORE	$1,527.07	2
016	2425150	SLEEVE T/OBEARING	2425150 SLEEVE T/OBEARING ANELLO INNESTO	$1,383.39	1
017	2421680	SYNCHRONIZER	2421680 SYNCHRONIZER CORPO SINCRONIZZATORE	$323.82	1
018	2421420	BRAKE PAD	2421420 BRAKE PAD PATTING	$29.70	3
019	2421419	PIN	2421419 PIN PERNO	$34.81	3
020	2421418	SPRING	2421418 SPRING MOLLA	$67.60	3
