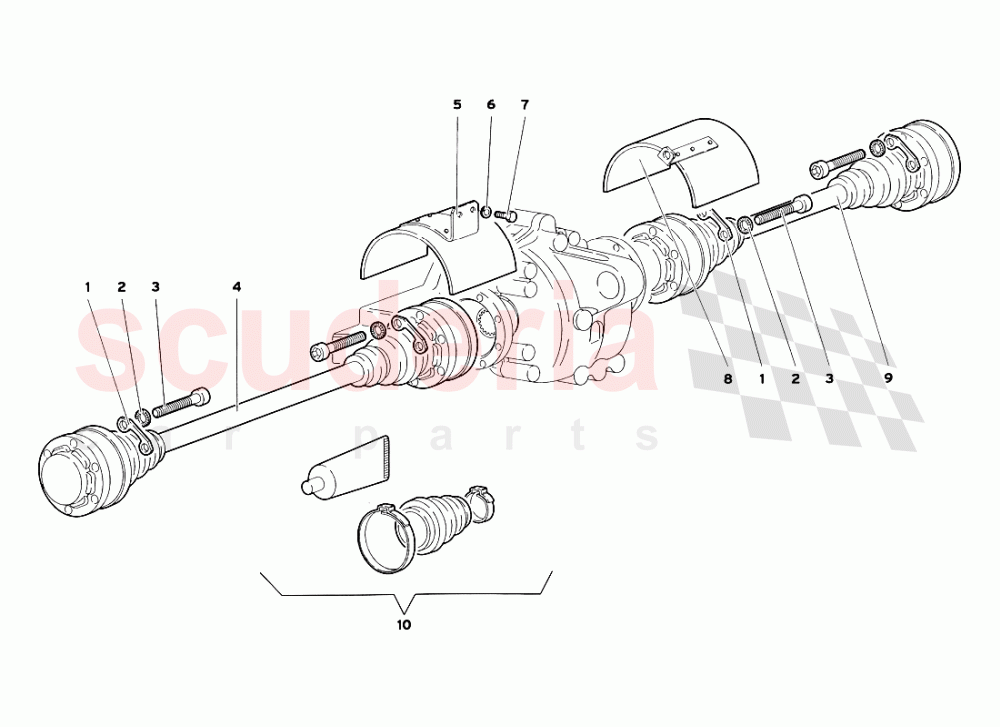

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2533290	PLATE	2533290 PLATE PIASTRINA	-	12	Enquire
002	8411011	WASHER IN STOCK	8411011 WASHER RONDELLA IN STOCK	-	24	Enquire
003	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD VITE IN STOCK	-	24	Enquire
004	2534286	LEFT HALF SHAFT	2534286 LEFT HALF SHAFT SEMIASSE POST.SX	-	1	Enquire
005	2530901	SHIELD	2530901 SHIELD PROTEZIONE SX	-	1	Enquire
006	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	-	2	Enquire
007	8700644	SCREW	8700644 SCREW VITE	-	2	Enquire
008	2530896	Shield	2530896 Shield PROTEZIONE DX	-	1	Enquire
009	2534285	RIGHT HALF SHAFT	2534285 RIGHT HALF SHAFT SEMIASSE POST.DX	-	1	Enquire
010	2537315	BOOT KIT	2537315 BOOT KIT KITCUFFIA	-	1	Enquire
