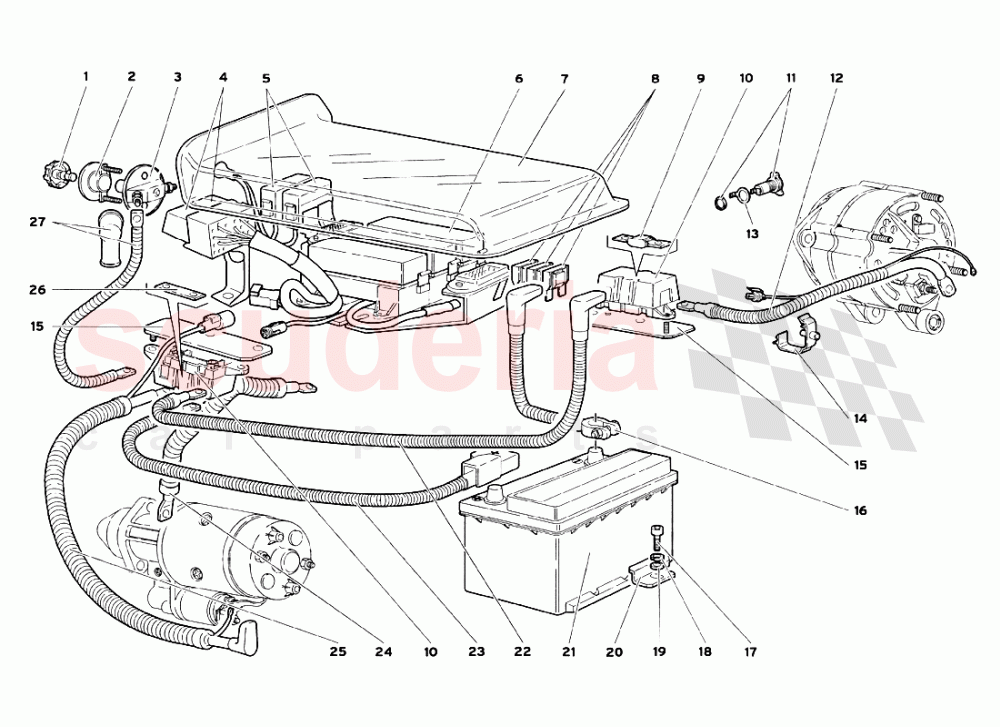

Lamborghini Diablo SV (1999) - Electrical System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5931167	KNOB	5931167 KNOB POMELLO	-	1	Enquire
002	5931299	FLANGE	5931299 FLANGE FLANGIA	-	1	Enquire
003	5931163	CONNECTING BLOCK	5931163 CONNECTING BLOCK STACCABATTERIA	-	1	Enquire
004	5937770	RELAY	5937770 RELAY RELE	-	2	Enquire
005	6137478	CASE	6137478 CASE SCATOLA MEGA FUSE	-	2	Enquire
006	61002728	CASE	61002728 CASE SCATOLA RELE/FUSE	-	1	Enquire
007	5937289	SHIELD	5937289 SHIELD PROTEZIONE	-	1	Enquire
008	6138010	MEGAFUSE	6138010 MEGAFUSE FUSIBILEDA80 A	-	2	Enquire
008	6138009	MEGAFUSE	6138009 MEGAFUSE FUSIBILEDA50 A	-	1	Enquire
009	6137479	FUSE	6137479 FUSE FUSIBILE	-	1	Enquire
010	6137478	CASE	6137478 CASE SCATOLA	-	2	Enquire
011	5936741	TAP BATTERY CHARG.	5936741 TAP BATTERY CHARG. PRESA PER CARICA BATTERIA	-	1	Enquire
012	6137477	ELECT CABLE	6137477 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
013	5937868	GROUND CONNEC.	5937868 GROUND CONNEC. LINGUETTA PER PR. CARICA BATT.	-	1	Enquire
014	8832006	STRAP	8832006 STRAP FASCETTA	-	3	Enquire
015	5937655	SUPPORT - SUPPORTO	5937655 SUPPORT - SUPPORTO O	-	2	Enquire
016	6136784	GROUND CABLE	6136784 GROUND CABLE CAVO MASSA	-	1	Enquire
017	8700815	SCREW	8700815 SCREW VITE	-	1	Enquire
018	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 RONDELLA	-	1	Enquire
019	8410820	WASHER	8410820 WASHER RONDELLA	-	1	Enquire
020	4130608	PLATE	4130608 PLATE STAFFA	-	1	Enquire
021	59004598	BATTERY	59004598 BATTERY BATTERIA	-	1	Enquire
022	6137474	ELECT CABLE	6137474 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
023	6137475	ELECT CABLE	6137475 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
024	6135923	GROUND CABLE	6135923 GROUND CABLE CAVO MASSA	-	1	Enquire
025	6137473	ELECT CABLE	6137473 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
026	6137471	CONNECTION	6137471 CONNECTION CONNESSIONE	-	1	Enquire
027	6137476	ELECT CABLE	6137476 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
