Phase Sensors (Up To Engine 2219)

Lamborghini Diablo SV (1999)

Find Your Part

Lamborghini Diablo SV (1999) - Phase Sensors (Up To Engine 2219)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

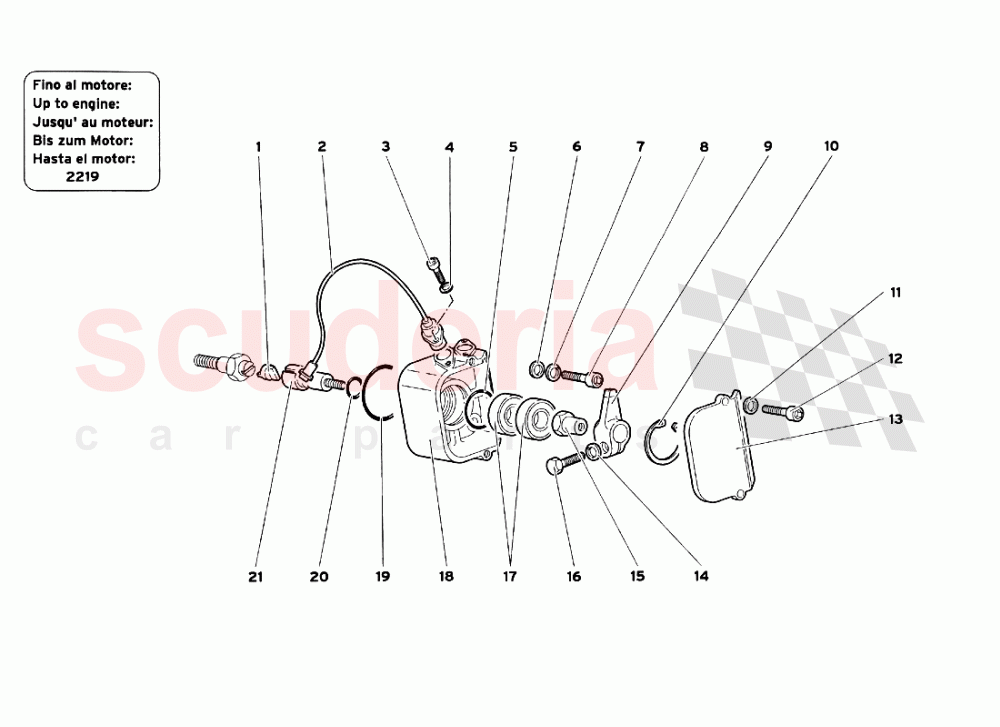

Phase Sensors (Up To Engine 2219) of Lamborghini Lamborghini Diablo SV (1999) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1634052
COUPLING
GIUNTOACROCE 		$347.40 (4% off) 1
002 7M905381
FLYWHEEL TIMING SENSOR 		$700.59 2
003 N10648502
SCREW M5X10
VITE
IN STOCK 		$1.32 (81.6% off) 4
004 8410503
WASHER
RONDELLA 		$0.19 (97.4% off) 4
005 8603503
SEAL RING
ANELLO TENUTA
IN STOCK 		$4.16 1
006 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 4
007 8410602
WASHER
RONDELLA
IN STOCK 		$44.87 4
008 WHT003101
SCREW
VITE
IN STOCK 		$1.47 (79.8% off) 4
009 1632292
PULSE GENERATOR
GENERATORE Dl IMPULSI 		$222.10 1
010 7M109381
RETAINING RING
ANELLO RITEGNO
IN STOCK 		$1.68 (76.5% off) 1
011 8410503
WASHER
RONDELLA 		$0.19 (97.4% off) 2
012 N10648502
SCREW M5X10
VITE
IN STOCK 		$1.32 (81.6% off) 2
013 16001286
COVER
COPERCHIO 		$21.16 1
014 8410602
WASHER
RONDELLA
IN STOCK 		$44.87 1
015 1632291
NUT
DADO 		$55.77 1
016 8700670
SCREW
VITE 		$0.28 (96.2% off) 1
017 410109264
BEARING
CUSCINETTO
IN STOCK 		$29.09 2
018 16001285
CASE
SCATOLA 		$495.05 (1.2% off) 1
019 8605001
SEAL
ANELLO TENUTA
IN STOCK 		$1.13 (84.5% off) 1
020 8600905
SEAL RING
ANELLO TENUTA 		$9.49 (3.7% off) 1
021 1632289
SMALL SHAFT
ALBERINO 		$74.44 1
