Electrical System 1

Lamborghini Diablo SV (1999)

Find Your Part

Lamborghini Diablo SV (1999) - Electrical System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

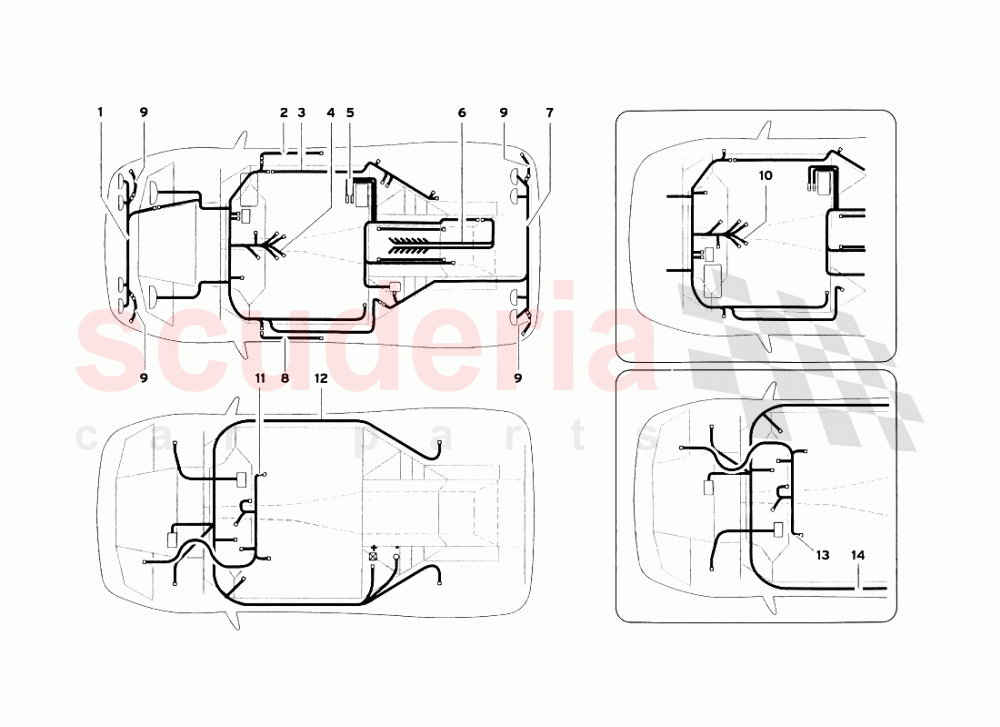

Electrical System 1 of Lamborghini Lamborghini Diablo SV (1999) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 6138167
CABLE
CABLAGGIO ANT. 		$178.66 (1.3% off) 1
002 6137047
CABLE
CABLAGGIO PORTA DX 		$316.40 (1.1% off) 1
003 6138163
CABLE
CABLAGGIO POST. DX 		$322.58 1
004 61002125
CABLE
CABLAGGIO CENTRALE 		$3,120.35 (1.1% off) 1
005 61002726
CABLE
CABLAGGIO INIEZIONE 		$3,238.21 (4.1% off) 1
006 6138160
CABLE
CABLAGGIO MOTORE 		$666.25 1
007 6138164
CABLE
CABLAGGIO POST. SX 		$547.15 (1.2% off) 1
008 6137046
CABLE
CABLAGGIO PORTA SX 		$286.60 (1.2% off) 1
009 6138210
CABLE
(Valid for USA - July 1999) CABLAGGIO SIDE MARKER 		$48.58 (4.4% off) 4
009 6138210
CABLE
(Valid for CANADA - July 1999) CABLAGGIO SIDE MARKER 		$48.58 (4.4% off) 4
010 61002136
CABLE
(Valid for AUSTRALIA - July 1999) CABLAGGIO CENTRALE 		$3,337.46 1
010 61002136
CABLE
(Valid for GB - July 1999) CABLAGGIO CENTRALE 		$3,337.46 1
011 6137795
CABLE
CABLAGGIO AIR BAG 		$152.63 (1.2% off) 1
012 6138218
CABLE
CABLAGGIO ABS 		$552.12 1
013 6137795
CABLE
(Valid for AUSTRALIA - July 1999) CABLAGGIO AIR BAG 		$152.63 (1.2% off) 1
013 6137795
CABLE
(Valid for GB - July 1999) CABLAGGIO AIR BAG 		$152.63 (1.2% off) 1
014 6138219
CABLE
(Valid for GB - July 1999) CABLAGGIO ABS 		$552.12 1
014 6138219
CABLE
(Valid for AUSTRALIA - July 1999) CABLAGGIO ABS V 		$552.12 1
