Accessories for Left Cylinder Head 1 of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Accessories for Left Cylinder Head 1

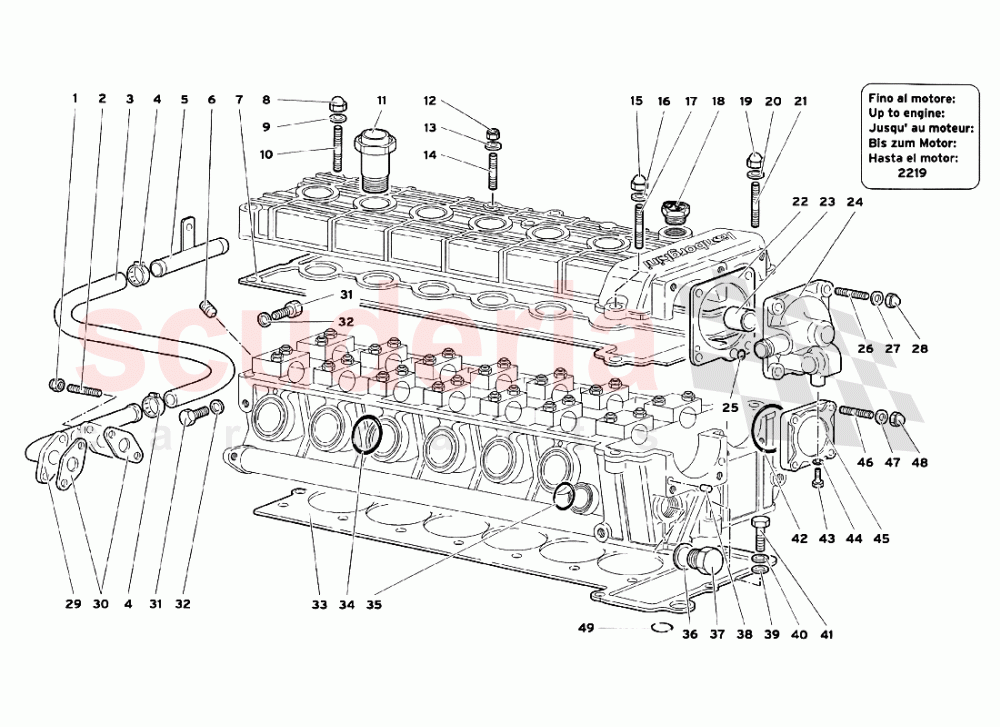

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	4
002	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	$24.62 MSRP: ~~25.65~~ (4% off)	4
003	410819370	Sleeve for Auxiliary Water Pump	410819370 Sleeve for Auxiliary Water Pump TUBO	$64.90	1
004	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$44.10	2
005	1730064	CONNECTION	1730064 CONNECTION GIUNZIONE INTERMEDIA	$23.61 MSRP: ~~23.90~~ (1.2% off)	1
006	8700852	SCREW	8700852 SCREW TAPPO	$0.46 MSRP: ~~7.31~~ (93.7% off)	1
007	11001012	GASKET	11001012 GASKET GUARNIZIONE	$44.36	1
008	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
009	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
010	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$12.05 MSRP: ~~12.55~~ (4% off)	1
011	1134281	UNION	1134281 UNION BOCCHETTONE	$204.08 MSRP: ~~206.50~~ (1.2% off)	6
012	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	1
013	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
014	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	1
015	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
016	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
017	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	$14.35 MSRP: ~~15.00~~ (4.3% off)	1
018	1136032	CAP	1136032 CAP TAPPO INTRODUZIONE	$13.95 MSRP: ~~14.15~~ (1.4% off)	1
019	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
020	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
021	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	$11.87 MSRP: ~~12.30~~ (3.5% off)	1
022	11001010	GASKET	11001010 GASKET GUARNIZIONE	$44.74 MSRP: ~~46.75~~ (4.3% off)	1
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	$55.88	1
024	11001059	VENT PIPE - COVER	11001059 VENT PIPE - COVER COPERCHIO - SFIATO	$461.53	1
025	8600905	SEAL RING	8600905 SEAL RING ANELLO TENUTA	$9.49 MSRP: ~~9.85~~ (3.7% off)	1
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.30	4
027	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.19	4
028	8200816	NUT	8200816 NUT DADO	$5.14	4
029	1734153	PIPE	1734153 PIPE RACCORDO	$742.57	1
030	1121254	GASKET	1121254 GASKET GUARNIZIONE	$9.33	2
031	8100839	SCREW	8100839 SCREW VITE	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
032	8400818	WASHER	8400818 WASHER RONDELLA	-	2	Enquire
033	11000988	Gasket IN STOCK	11000988 Gasket GUARNIZIONE IN STOCK	$405.18	1
034	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	$8.17 MSRP: ~~8.45~~ (3.3% off)	6
035	8603503	SEAL RING IN STOCK	8603503 SEAL RING ANELLO TENUTA IN STOCK	$4.16	2
036	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
037	7M103035	PLUG	7M103035 PLUG	$62.89	1
038	8850616	DOWEL	8850616 DOWEL GRANO	-	2	Enquire
039	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	1
040	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
041	8100807	SCREW	8100807 SCREW VITE	$0.83 MSRP: ~~7.27~~ (88.6% off)	1
042	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.29	1
043	8100631	SCREW	8100631 SCREW VITE	$0.12 MSRP: ~~7.37~~ (98.4% off)	1
044	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.89 MSRP: ~~7.31~~ (87.8% off)	1
045	1114502	COVER	1114502 COVER COPERCHIO	$189.21	1
046	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.56	12
047	8400620	WASHER	8400620 WASHER RONDELLA	$1.50 MSRP: ~~7.38~~ (79.7% off)	12
048	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	12
049	8601203	SEAL	8601203 SEAL ANELLO TENUTA	$0.88	1
