Air Filters of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Air Filters

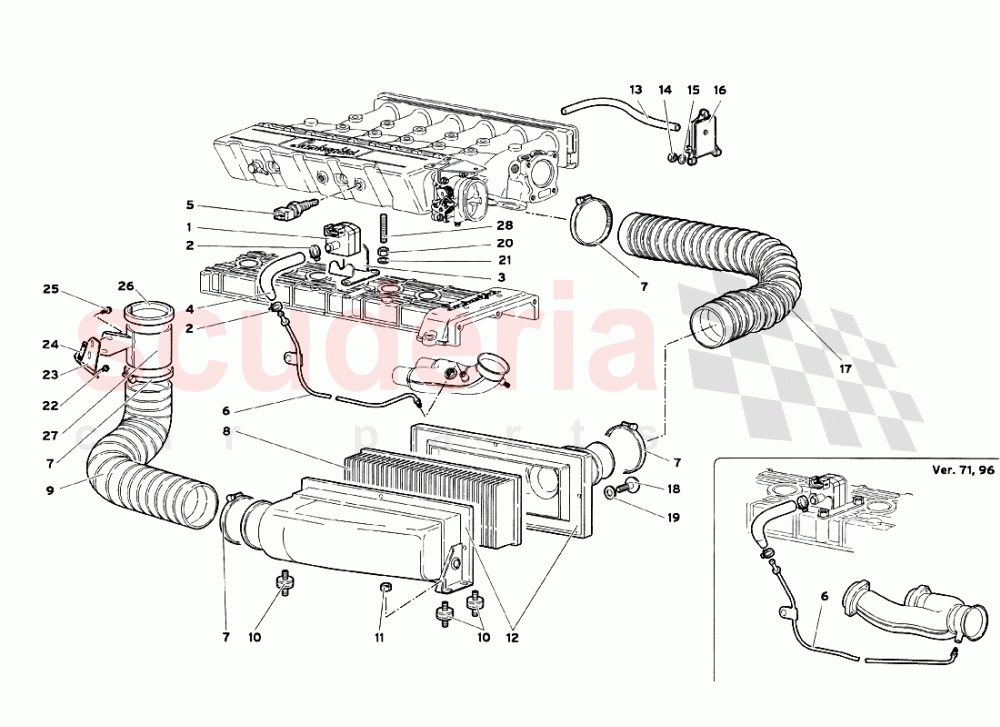

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	20001200	SENSOR - SENSORE	20001200 SENSOR - SENSORE	$729.53	2
002	8830901	CLAMP	8830901 CLAMP FASCETTA	$6.45	4
003	20001197	LEFT SUPPORT	20001197 LEFT SUPPORT SUPPORTOSX	$90.57 MSRP: ~~94.70~~ (4.4% off)	1
003	20001196	RIGHT SUPPORT	20001196 RIGHT SUPPORT SUPPORTO DX	$90.57 MSRP: ~~94.70~~ (4.4% off)	1
004	20001201	PIPE	20001201 PIPE TUBO	-	2	Enquire
005	7M919529	Air Temperature Sensor	7M919529 Air Temperature Sensor	$286.97	2
006	20001298	RIGHT PIPE	20001298 RIGHT PIPE (Valid for USA - July 1999) TUBO DX	$69.12 MSRP: ~~72.10~~ (4.1% off)	1
006	20001298	RIGHT PIPE	20001298 RIGHT PIPE (Valid for CANADA - July 1999) TUBO DX	$69.12 MSRP: ~~72.10~~ (4.1% off)	1
006	20001299	LEFT PIPE	20001299 LEFT PIPE (Valid for CANADA - July 1999) TUBO SX	$223.96 MSRP: ~~232.50~~ (3.7% off)	1
006	20001299	LEFT PIPE	20001299 LEFT PIPE (Valid for USA - July 1999) TUBO SX	$223.96 MSRP: ~~232.50~~ (3.7% off)	1
006	20001199	LEFT PIPE	20001199 LEFT PIPE TUBO SX	$178.78	1
006	20001198	RIGHT PIPE	20001198 RIGHT PIPE TUBO DX	$288.07	1
007	8838701	STRAP IN STOCK	8838701 STRAP FASCETTA IN STOCK	$7.10 MSRP: ~~7.30~~ (2.7% off)	8
008	7M133843	Air Filter IN STOCK	7M133843 Air Filter IN STOCK	$28.13	2
009	1337438	PIPE	1337438 PIPE TUBO	$379.25	2
010	9411508	ELASTIC SUPPORT	9411508 ELASTIC SUPPORT SUPPORTO ELASTICO	$31.72	6
011	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	6
012	13001215	RIGHT CASE	13001215 RIGHT CASE SCATOLA FILTRO ARIA DX	$887.09	1
012	13001216	LEFT CASE	13001216 LEFT CASE SCATOLA FILTRO ARIA SX	$925.56	1
013	1330454	PIPE	1330454 PIPE TUBO	$141.46 MSRP: ~~147.50~~ (4.1% off)	2
014	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	6
015	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	6
016	7M919529A	PRESSURE SENSOR IN STOCK	7M919529A PRESSURE SENSOR SENSORE PRESSIONE IN STOCK	$439.51	2
017	1331286	RIGHT FLEX. HOSE	1331286 RIGHT FLEX. HOSE TUBO DX	$114.39	1
017	1333774	LEFT FLEX. HOSE IN STOCK	1333774 LEFT FLEX. HOSE TUBO SX IN STOCK	$270.70	1
018	8700691	SCREW	8700691 SCREW VITE	$3.12	8
019	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.25 MSRP: ~~7.33~~ (82.9% off)	8
020	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	4
021	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
022	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	4
023	9453169	LEFT BRACKET	9453169 LEFT BRACKET STAFFA SX	$59.43	1
023	9453168	RIGHT BRACKET	9453168 RIGHT BRACKET STAFFA DX	$59.43	1
024	9453172	BRACKET	9453172 BRACKET STAFFA	$8.96	2
025	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT VITE	$0.95	4
026	9453162	GASKET	9453162 GASKET GUARNIZIONE	$31.63	2
027	9453171	LEFT SUPPORT	9453171 LEFT SUPPORT SUPPORTO SX	$266.13	1
027	9453170	RIGHT SUPPORT	9453170 RIGHT SUPPORT SUPPORTO DX	$266.13	1
028	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.96 MSRP: ~~5.10~~ (2.7% off)	4
