Accessories for Right Cylinder Head 2 of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Accessories for Right Cylinder Head 2

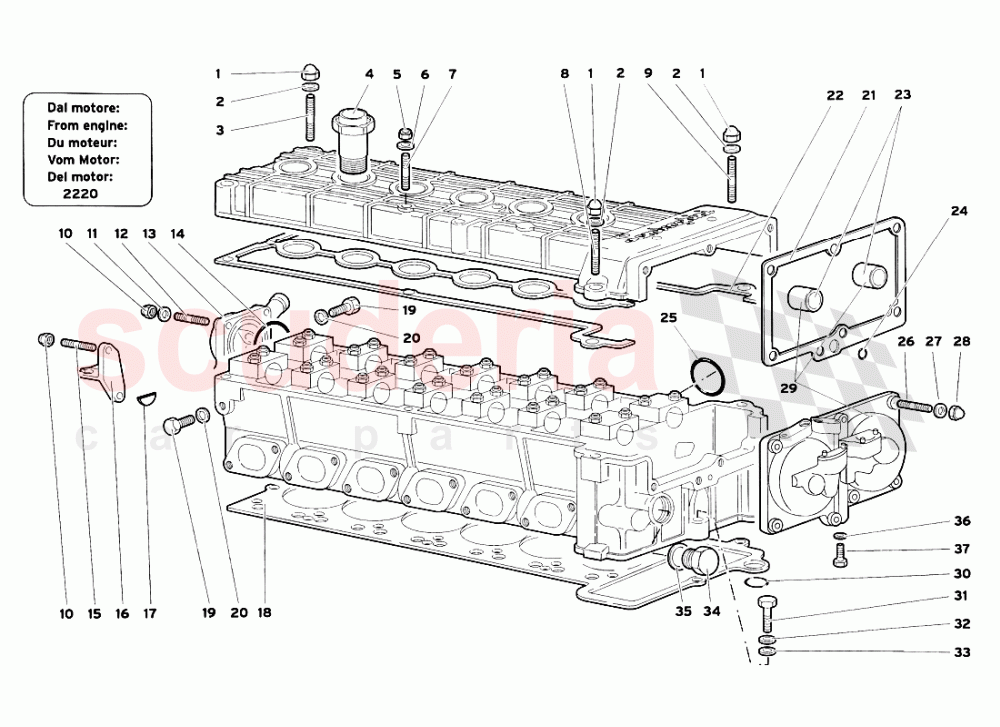

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT	8200605 NUT DADO	-	3	Enquire
002	8400606	WASHER	8400606 WASHER RONDELLA	-	3	Enquire
003	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	-	1	Enquire
004	1134281	UNION	1134281 UNION BOCCHETTONE	-	6	Enquire
005	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	1	Enquire
006	8400606	WASHER	8400606 WASHER RONDELLA	-	1	Enquire
007	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	-	1	Enquire
008	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	-	1	Enquire
009	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	-	1	Enquire
010	8200605	NUT	8200605 NUT DADO	-	8	Enquire
011	8410602	WASHER	8410602 WASHER RONDELLA	-	6	Enquire
012	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	-	4	Enquire
013	1133383	VENT PIPE	1133383 VENT PIPE COPERCHIO - SFIATO	-	1	Enquire
014	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	-	1	Enquire
015	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	-	2	Enquire
016	11003953	SUPPORT	11003953 SUPPORT FERMAGUAINA	-	1	Enquire
017	11003411	COVER	11003411 COVER COPERCHIO	-	1	Enquire
018	11000987	GASKET	11000987 GASKET GUARNIZIONE	-	1	Enquire
019	8100839	SCREW	8100839 SCREW VITE	-	3	Enquire
020	8400818	WASHER	8400818 WASHER RONDELLA	-	3	Enquire
021	11003889	GASKET	11003889 GASKET GUARNIZIONE	-	1	Enquire
022	11003696	GASKET	11003696 GASKET GUARNIZIONE	-	1	Enquire
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	-	2	Enquire
024	8600906	SEAL	8600906 SEAL ANELLO TENUTA	-	1	Enquire
025	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	-	6	Enquire
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	7	Enquire
027	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	7	Enquire
028	8200816	NUT	8200816 NUT DADO	-	7	Enquire
029	11006398	COVER	11006398 COVER COPERCHIO COMPLETO	-	1	Enquire
030	8601203	SEAL	8601203 SEAL ANELLO TENUTA	-	1	Enquire
031	8100807	SCREW	8100807 SCREW VITE	-	1	Enquire
032	N0152785	WASHER	N0152785 WASHER RONDELLA	-	1	Enquire
033	N0122094	WASHER	N0122094 WASHER RONDELLA	-	1	Enquire
034	7M103035	PLUG	7M103035 PLUG	-	1	Enquire
035	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
036	WHT003041	WASHER	WHT003041 WASHER RONDELLA	-	1	Enquire
037	8100631	SCREW	8100631 SCREW VITE	-	1	Enquire
