Steering (Comfort Pack) of Lamborghini Lamborghini Diablo SV (1998)

View All

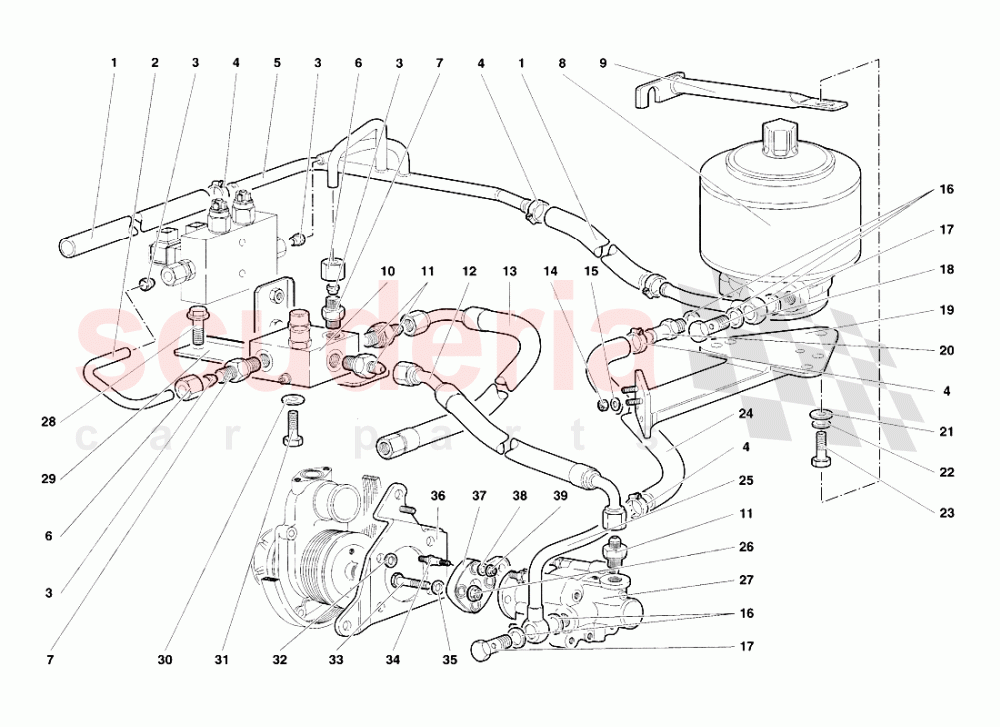

Lamborghini Diablo SV (1998) - Steering (Comfort Pack)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4034577	PIPE	4034577 PIPE (Comfort pack) TUBO	-	2	Enquire
002	5134578	RIGID PIPE	5134578 RIGID PIPE (Comfort pack) TUBAZIONE RIGIDA	-	1	Enquire
003	4036492	BUSHING	4036492 BUSHING (Comfort pack) BUSSOLA	-	4	Enquire
004	8831524	STRAP	8831524 STRAP (Comfort pack) FASCETTA	-	6	Enquire
005	5134584	RIGID PIPE	5134584 RIGID PIPE (Comfort pack) TUBAZIONE RIGIDA	-	1	Enquire
006	4036493	NUT	4036493 NUT (Comfort pack) DADO	-	2	Enquire
007	4036490	CONNECTION	4036490 CONNECTION (Comfort pack) RACCORDO	-	2	Enquire
008	4036488	W/W RESERVOIR	4036488 W/W RESERVOIR (Comfort pack) SERBATOIO	-	1	Enquire
009	4036796	BRACKET	4036796 BRACKET (Comfort pack) STAFFA	-	1	Enquire
010	4034570	VALVE	4034570 VALVE (Comfort pack) VALVOLA	-	1	Enquire
011	4033472	CONNECTION	4033472 CONNECTION (Comfort pack) RACCORDO	-	3	Enquire
012	4034576	PIPE	4034576 PIPE (Comfort pack) TUBO	-	1	Enquire
013	4034582	PIPE	4034582 PIPE (Comfort pack) TUBO	-	1	Enquire
014	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING (Comfort pack) DADO	-	2	Enquire
015	WHT002961	WASHER	WHT002961 WASHER (Comfort pack) RONDELLA	-	2	Enquire
016	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Comfort pack) RONDELLA	-	5	Enquire
017	4009760	SCREW	4009760 SCREW (Comfort pack) VITE FORATA	-	2	Enquire
018	4036521	CONNECTION	4036521 CONNECTION (Comfort pack) RACCORDO	-	1	Enquire
019	4036489	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4036489 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO (Comfort pack) O	-	1	Enquire
020	4036491	CONNECTION	4036491 CONNECTION (Comfort pack) RACCORDO	-	1	Enquire
021	8400801	WASHER	8400801 WASHER (Comfort pack) RONDELLA	-	3	Enquire
022	8410819	WASHER	8410819 WASHER (Comfort pack) RONDELLA	-	3	Enquire
023	8100812	SCREW	8100812 SCREW (Comfort pack) VITE	-	3	Enquire
024	4033457	PIPE	4033457 PIPE (Comfort pack) TUBO	-	1	Enquire
025	4033467	CONNECTION	4033467 CONNECTION (Comfort pack) RACCORDO	-	1	Enquire
026	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING (Comfort pack) DADO	-	2	Enquire
027	4036816	OIL PUMP	4036816 OIL PUMP (Comfort pack) POMPAOLIO	-	1	Enquire
028	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT (Comfort pack) VITE	-	1	Enquire
029	4036494	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4036494 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO (Comfort pack) O	-	1	Enquire
030	WHT002961	WASHER	WHT002961 WASHER (Comfort pack) RONDELLA	-	2	Enquire
031	8100613	SCREW	8100613 SCREW (Comfort pack) VITE	-	2	Enquire
032	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 (Comfort pack) RONDELLA	-	4	Enquire
033	4037039	SCREW	4037039 SCREW (Comfort pack) VITE	-	2	Enquire
034	1737044	PIN	1737044 PIN (Comfort pack) PERNO	-	2	Enquire
035	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 (Comfort pack) RONDELLA	-	2	Enquire
036	4037040	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4037040 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO (Comfort pack) O	-	1	Enquire
037	1737220	FLEXIBLE JOINT	1737220 FLEXIBLE JOINT (Comfort pack) GIUNTO ELASTICO	-	1	Enquire
038	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) (Comfort pack) RONDELLA	-	2	Enquire
039	N0211963	NUT	N0211963 NUT (Comfort pack) DADO	-	2	Enquire
