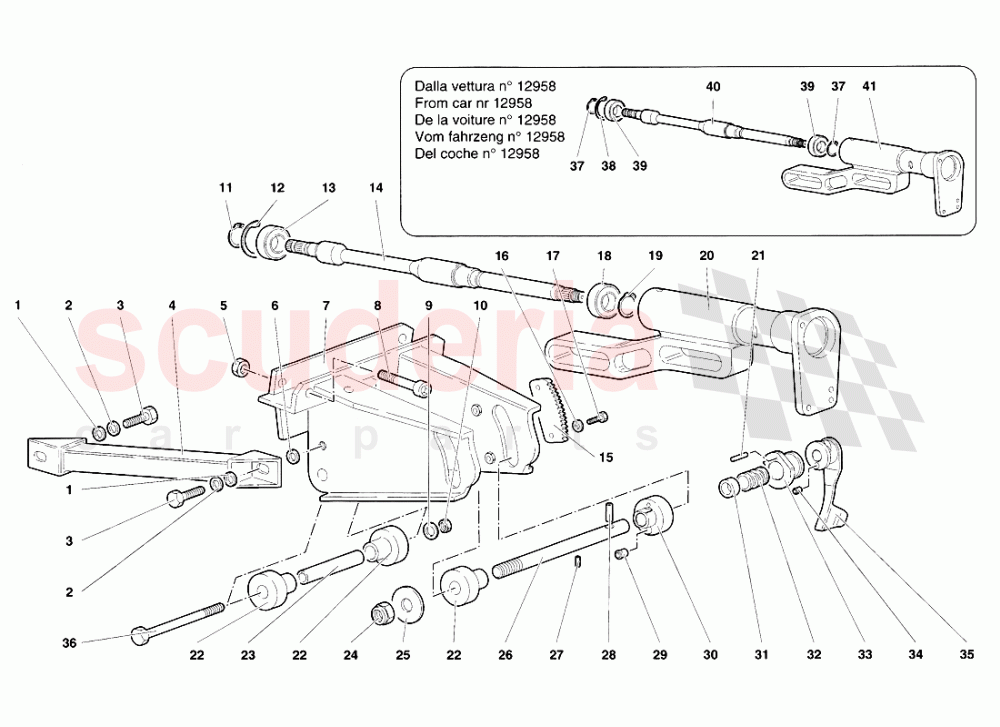

Lamborghini Diablo SV (1998) - Steering 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	2
002	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.19	2
003	N0124032	SCREW	N0124032 SCREW VITE	-	2	Enquire
004	4337924	STRUT	4337924 STRUT PUNTONE	$163.77 MSRP: ~~166.00~~ (1.3% off)	1
005	8200824	NUT	8200824 NUT DADO	$0.46 MSRP: ~~7.31~~ (93.7% off)	2
006	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO	$4.52	1
007	4338286	SUPPORT - SUPPORTO	4338286 SUPPORT - SUPPORTO O	$466.52	1
007	4338285	SUPPORT - (Valid for GB - November 1998) SUPPORTO	4338285 SUPPORT - (Valid for GB - November 1998) SUPPORTO (Valid for GB - November 1998) O	-	1	Enquire
008	8700830	SCREW	8700830 SCREW VITE	$0.68 MSRP: ~~7.28~~ (90.7% off)	2
009	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.19	1
010	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	1
011	7M109381	RETAINING RING IN STOCK	7M109381 RETAINING RING ANELLO RITEGNO IN STOCK	$1.68 MSRP: ~~7.14~~ (76.5% off)	1
012	8581501	RETAINER RING	8581501 RETAINER RING ANELLO RITEGNO	$0.36	1
013	8501703	BEARING	8501703 BEARING CUSCINETTO	-	1	Enquire
014	4337937	SMALL SHAFT	4337937 SMALL SHAFT ALBERINO	$423.06	1
015	4337941	TOOTHED STRIKER	4337941 TOOTHED STRIKER RISCONTRO DENTATO	$57.47 MSRP: ~~60.10~~ (4.4% off)	1
016	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
017	8700522	SCREW	8700522 SCREW VITE	$0.42 MSRP: ~~7.31~~ (94.3% off)	2
018	8502011	BEARING	8502011 BEARING CUSCINETTO	$62.40	1
019	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING ANELLO RITEGNO IN STOCK	$1.08 MSRP: ~~7.22~~ (85% off)	1
020	4337938	S. COLUMN SUPPORT	4337938 S. COLUMN SUPPORT SUPPORTO PIANTONE GUIDA	$1,383.39	1
021	4338318	PIN	4338318 PIN SA	$10.24 MSRP: ~~10.60~~ (3.4% off)	1
022	4337939	SPACER	4337939 SPACER DISTANZIALE	$44.66 MSRP: ~~46.65~~ (4.3% off)	3
023	4337944	BUSHING	4337944 BUSHING BOCCOLA	$55.72 MSRP: ~~58.30~~ (4.4% off)	1
024	8201231	NUT	8201231 NUT DADO	$1.44 MSRP: ~~7.11~~ (79.7% off)	1
025	410407295D	WASHER	410407295D WASHER RONDELLA	$29.71	1
026	4337942	PIN	4337942 PIN PERNO	$319.18	1
027	8900408	PIN - SPINA	8900408 PIN - SPINA SA	-	1	Enquire
028	4338065	PIN	4338065 PIN SA	$7.46 MSRP: ~~7.70~~ (3.1% off)	1
029	4338060	POSITION BALL	4338060 POSITION BALL SFERA Dl POSIZIONE	$32.70 MSRP: ~~34.15~~ (4.2% off)	1
030	4337946	SPACER	4337946 SPACER DISTANZIALE	$249.38 MSRP: ~~260.00~~ (4.1% off)	1
031	4337952	WASHER	4337952 WASHER RONDELLA	$49.70 MSRP: ~~52.00~~ (4.4% off)	1
032	4337947	SPRING	4337947 SPRING MOLLA	$12.36 MSRP: ~~12.85~~ (3.8% off)	1
033	4337948	TOOTHED TAPPET	4337948 TOOTHED TAPPET BICCHIERE DENTATO	$144.56 MSRP: ~~150.00~~ (3.6% off)	1
034	9907111	POSITION BALL	9907111 POSITION BALL SFERA Dl POSIZIONE	$10.73 MSRP: ~~11.20~~ (4.2% off)	1
035	4338317	LEVER	4338317 LEVER LEVA	$719.60 MSRP: ~~752.00~~ (4.3% off)	1
036	8100824	SCREW	8100824 SCREW VITE	$1.38 MSRP: ~~7.13~~ (80.6% off)	1
037	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING ANELLO RITEGNO IN STOCK	$1.08 MSRP: ~~7.22~~ (85% off)	2
038	8573701	RETAINING RING	8573701 RETAINING RING ANELLO RITEGNO	$0.64 MSRP: ~~7.26~~ (91.2% off)	1
039	8502011	BEARING	8502011 BEARING CUSCINETTO	$62.40	2
040	43002199	SMALL SHAFT	43002199 SMALL SHAFT ALBERINO	$134.00	1
041	43002200	S. COLUMN SUPPORT	43002200 S. COLUMN SUPPORT SUPPORTO PIANTONE GUIDA	$1,152.61 MSRP: ~~1,205.00~~ (4.3% off)	1
