Steering 4 of Lamborghini Lamborghini Diablo SV (1998)

View All

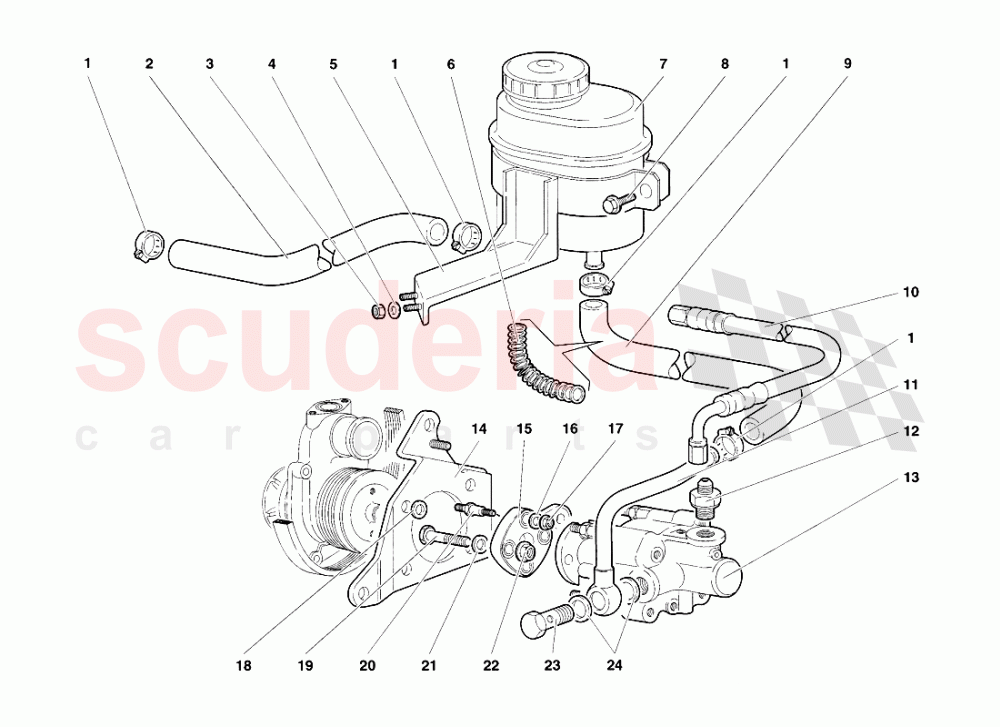

Lamborghini Diablo SV (1998) - Steering 4

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8831524	STRAP	8831524 STRAP FASCETTA	-	4	Enquire
002	4033461	PIPE	4033461 PIPE TUBO	-	1	Enquire
003	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
004	8400606	WASHER	8400606 WASHER RONDELLA	-	2	Enquire
005	4034058	SUPPORT - SUPPORTO	4034058 SUPPORT - SUPPORTO O	-	1	Enquire
006	410201212	SPRIMG	410201212 SPRIMG MOLLA	-	1	Enquire
007	4033456	OIL RESERVOIR	4033456 OIL RESERVOIR SERBATOIO OLIO	-	1	Enquire
008	N90319404	SCREW	N90319404 SCREW VITE	-	1	Enquire
009	4033457	PIPE	4033457 PIPE TUBO	-	1	Enquire
010	4033465	PIPE	4033465 PIPE TUBO	-	1	Enquire
011	4033467	CONNECTION	4033467 CONNECTION RACCORDO	-	1	Enquire
012	4033472	CONNECTION	4033472 CONNECTION RACCORDO	-	1	Enquire
013	4036816	OIL PUMP	4036816 OIL PUMP POMPAOLIO	-	1	Enquire
014	4037040	SUPPORT - (Valid for vehicles with lifting system) SUPPORTO	4037040 SUPPORT - (Valid for vehicles with lifting system) SUPPORTO O	-	1	Enquire
015	1737220	FLEXIBLE JOINT	1737220 FLEXIBLE JOINT GIUNTO ELASTICO	-	1	Enquire
016	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	-	2	Enquire
017	N0211963	NUT	N0211963 NUT DADO	-	2	Enquire
018	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 RONDELLA	-	4	Enquire
019	4037039	SCREW	4037039 SCREW VITE	-	2	Enquire
020	1737044	PIN	1737044 PIN PERNO	-	2	Enquire
021	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5 RONDELLA	-	2	Enquire
022	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING DADO	-	2	Enquire
023	4009760	SCREW	4009760 SCREW VITE FORATA	-	1	Enquire
024	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 RONDELLA	-	2	Enquire
