Oil Sump of Lamborghini Lamborghini Diablo SV (1998)

View All

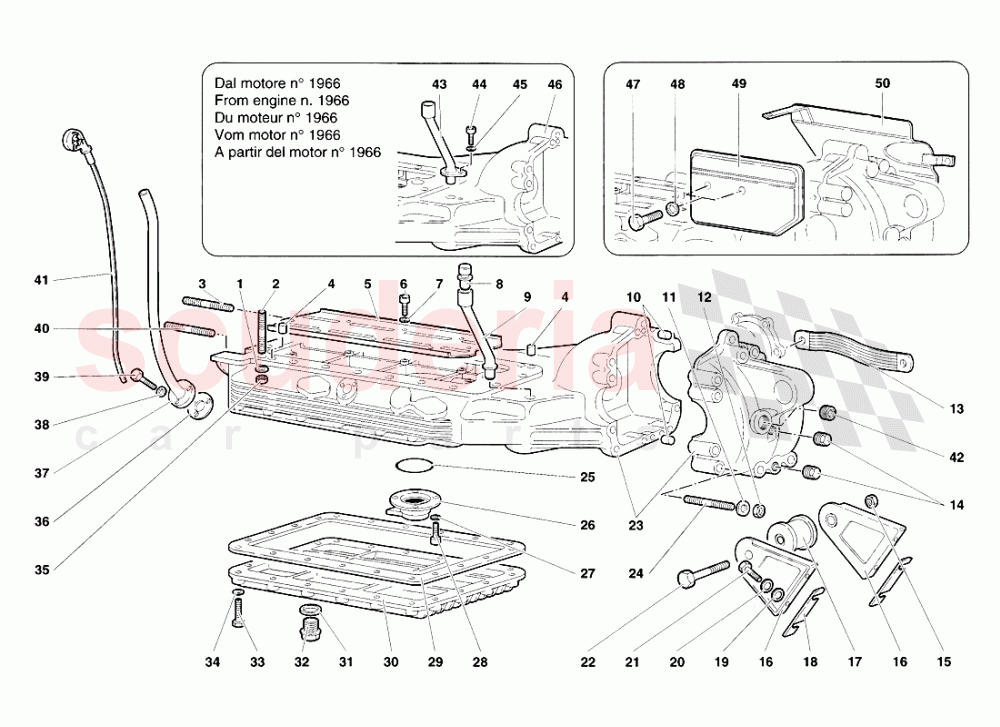

Lamborghini Diablo SV (1998) - Oil Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	18	Enquire
002	WHT003031	STUD BOLT	WHT003031 STUD BOLT PRIGIONIERO 28 MM	-	8	Enquire
002	8300806	STUD	8300806 STUD PRIGIONIERO 70 MM	-	6	Enquire
002	8300897	STUD	8300897 STUD PRIGIONIERO 106 MM	-	4	Enquire
003	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	1	Enquire
004	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
005	1827775	PLATE	1827775 PLATE PARATIA ANTISBATTIMENTO	-	1	Enquire
006	8700644	SCREW	8700644 SCREW VITE	-	8	Enquire
007	8410602	WASHER	8410602 WASHER RONDELLA	-	8	Enquire
008	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO OLIO	-	1	Enquire
009	2334402	PIPE	2334402 PIPE TUBO	-	1	Enquire
010	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
011	WHT000768	WASHER	WHT000768 WASHER	-	10	Enquire
012	N10155210	NUT	N10155210 NUT DADO	-	10	Enquire
013	1604328	GROUND CABLE	1604328 GROUND CABLE CAVO MASSA	-	2	Enquire
014	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	-	2	Enquire
015	8201416	NUT	8201416 NUT DADO	-	1	Enquire
016	4126765	BRACKET	4126765 BRACKET STAFFA	-	2	Enquire
017	B9501144	support mount	B9501144 support mount	-	1	Enquire
018	4126766	SPACER	4126766 SPACER SPESSORE Dl REGISTRO	-	1	Enquire
019	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
020	N0152785	WASHER	N0152785 WASHER RONDELLA	-	4	Enquire
021	8100862	SCREW	8100862 SCREW VITE	-	4	Enquire
022	8101430	SCREW	8101430 SCREW VITE	-	1	Enquire
023	450132001	OIL SUMP	450132001 OIL SUMP COPPA OLIO LAVORATA	-	1	Enquire
024	8301033	STUD	8301033 STUD PRIGIONIERO	-	10	Enquire
025	WHT002222	SEAL RING	WHT002222 SEAL RING	-	1	Enquire
026	1832017	FLANGE	1832017 FLANGE FLANGIA	-	1	Enquire
027	8410602	WASHER	8410602 WASHER RONDELLA	-	4	Enquire
028	8700644	SCREW	8700644 SCREW VITE	-	4	Enquire
029	1826521	GASKET	1826521 GASKET GUARNIZIONE	-	1	Enquire
030	1831852	LOWER COVER	1831852 LOWER COVER COPERCHIO INFERIORE	-	1	Enquire
031	8402202	WASHER	8402202 WASHER RONDELLA	-	1	Enquire
032	8932211	Drain Plug	8932211 Drain Plug TAPPO Dl SCARICO	-	1	Enquire
033	8100603	SCREW	8100603 SCREW VITE	-	20	Enquire
034	8410602	WASHER	8410602 WASHER RONDELLA	-	20	Enquire
035	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	-	18	Enquire
036	1830006	GASKET	1830006 GASKET GUARNIZIONE	-	1	Enquire
037	1837263	PIPE	1837263 PIPE TUBO PORTAASTA	-	1	Enquire
038	8410602	WASHER	8410602 WASHER RONDELLA	-	3	Enquire
039	8100601	SCREW	8100601 SCREW VITE	-	3	Enquire
040	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	-	2	Enquire
041	1837261	LEVEL ROD	1837261 LEVEL ROD ASTALIVELLO	-	1	Enquire
042	8932602	PLUG	8932602 PLUG TAPPO	-	1	Enquire
043	23001636	PIPE	23001636 PIPE TUBO	-	1	Enquire
044	8700547	SCREW	8700547 SCREW VITE	-	1	Enquire
045	8410503	WASHER	8410503 WASHER RONDELLA	-	1	Enquire
046	18001707	OIL SUMP	18001707 OIL SUMP COPPA OLIO	-	1	Enquire
047	8100830	SCREW	8100830 SCREW (Valid for CANADA - November 1998) VITE	-	2	Enquire
047	8100830	SCREW	8100830 SCREW (Valid for USA - November 1998) VITE	-	2	Enquire
048	8400801	WASHER	8400801 WASHER (Valid for USA - November 1998) RONDELLA	-	2	Enquire
048	8400801	WASHER	8400801 WASHER (Valid for CANADA - November 1998) RONDELLA	-	2	Enquire
049	1836047	PLATE	1836047 PLATE (Valid for USA - November 1998) PARATIA	-	1	Enquire
049	1836047	PLATE	1836047 PLATE (Valid for CANADA - November 1998) PARATIA	-	1	Enquire
050	1836048	PLATE	1836048 PLATE (Valid for USA - November 1998) PARATIA	-	1	Enquire
050	1836048	PLATE	1836048 PLATE (Valid for CANADA - November 1998) PARATIA	-	1	Enquire
