Accessories for Right Cylinder Head of Lamborghini Lamborghini Diablo SV (1998)

View All

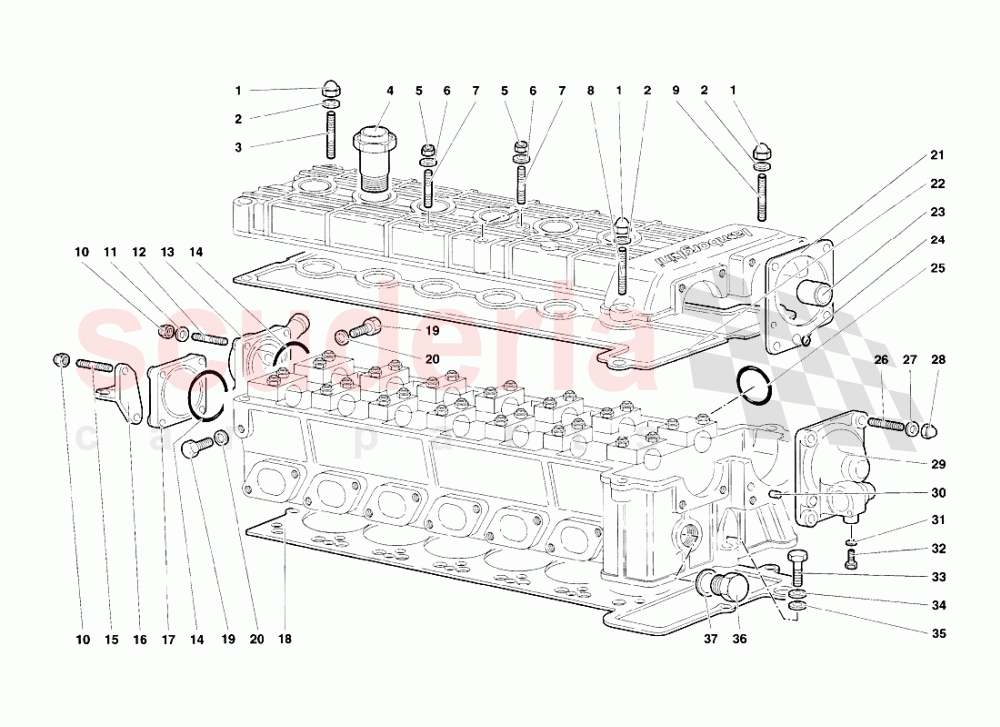

Lamborghini Diablo SV (1998) - Accessories for Right Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT	8200605 NUT DADO	-	3	Enquire
002	8400606	WASHER	8400606 WASHER RONDELLA	-	3	Enquire
003	8300649	STUD BOLT	8300649 STUD BOLT PRIGIONIERO	-	1	Enquire
004	1134281	UNION	1134281 UNION BOCCHETTONE	-	6	Enquire
005	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	3	Enquire
006	8400606	WASHER	8400606 WASHER RONDELLA	-	3	Enquire
007	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	-	3	Enquire
008	8300651	STUD BOLT	8300651 STUD BOLT PRIGIONIERO	-	1	Enquire
009	8300637	STUD BOLT	8300637 STUD BOLT PRIGIONIERO	-	1	Enquire
010	8200605	NUT	8200605 NUT DADO	-	8	Enquire
011	8410602	WASHER	8410602 WASHER RONDELLA	-	6	Enquire
012	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	-	6	Enquire
013	1133383	VENT PIPE	1133383 VENT PIPE COPERCHIO - SFIATO	-	1	Enquire
014	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	-	2	Enquire
015	8300615	STUD	8300615 STUD PRIGIONIERO	-	2	Enquire
016	1131708	BRACKET	1131708 BRACKET FERMAGUAINA	-	1	Enquire
017	1114502	COVER	1114502 COVER COPERCHIO	-	1	Enquire
018	11000987	GASKET	11000987 GASKET GUARNIZIONE	-	1	Enquire
019	8100839	SCREW	8100839 SCREW VITE	-	2	Enquire
020	8400802	WASHER	8400802 WASHER RONDELLA	-	2	Enquire
021	11001010	GASKET	11001010 GASKET GUARNIZIONE	-	1	Enquire
022	11001011	GASKET	11001011 GASKET GUARNIZIONE	-	1	Enquire
023	11000038	BUSHING	11000038 BUSHING BOCCOLA	-	1	Enquire
024	8600903	SEAL	8600903 SEAL ANELLO TENUTA	-	1	Enquire
025	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA	-	6	Enquire
026	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	-	4	Enquire
027	WHT000771	WASHER	WHT000771 WASHER RONDELLA	-	4	Enquire
028	8200816	NUT	8200816 NUT DADO	-	4	Enquire
029	11001006	COVER	11001006 COVER COPERCHIO	-	1	Enquire
030	8850616	DOWEL	8850616 DOWEL GRANO	-	2	Enquire
031	WHT003041	WASHER	WHT003041 WASHER RONDELLA	-	1	Enquire
032	8100631	SCREW	8100631 SCREW VITE	-	1	Enquire
033	8100807	SCREW	8100807 SCREW VITE	-	1	Enquire
034	N0152785	WASHER	N0152785 WASHER RONDELLA	-	1	Enquire
035	N0122094	WASHER	N0122094 WASHER RONDELLA	-	1	Enquire
036	7M103035	PLUG	7M103035 PLUG	-	1	Enquire
037	8402609	WASHER	8402609 WASHER RONDELLA	-	1	Enquire
