Intake Manifold (Valid From Engine No. 1889) of Lamborghini Lamborghini Diablo SV (1998)

View All

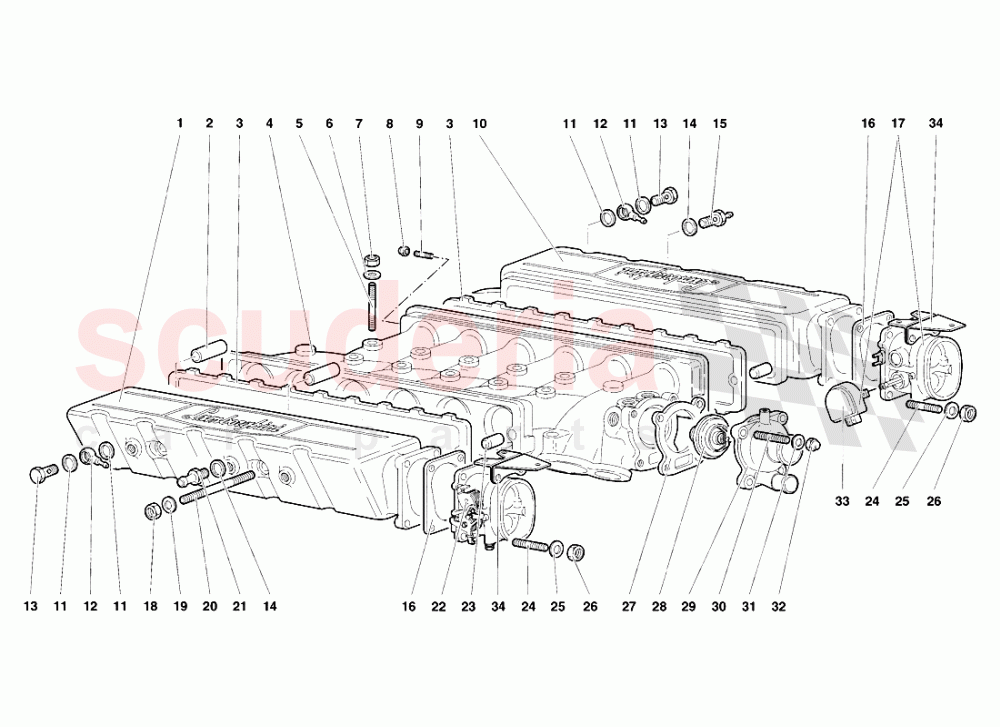

Lamborghini Diablo SV (1998) - Intake Manifold (Valid From Engine No. 1889)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	13001063	RIGHT COVER	13001063 RIGHT COVER (Valid from engine no. 1889) COPERCHIO DX	-	1	Enquire
002	13001226	SPACER	13001226 SPACER (Valid from engine no. 1889) DISTANZIALE	-	4	Enquire
003	1323717	Gasket	1323717 Gasket (Valid from engine no. 1889) GUARNIZIONE	-	2	Enquire
004	490132009	INLET MANIFOLD	490132009 INLET MANIFOLD (Valid from engine no. 1889) COLLETTORE ASPIRAZIONE	-	1	Enquire
005	8300614	STUD	8300614 STUD (Valid from engine no. 1889) PRIGIONIERO	-	11	Enquire
006	8400606	WASHER	8400606 WASHER (Valid from engine no. 1889) RONDELLA	-	11	Enquire
007	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING (Valid from engine no. 1889) DADO	-	11	Enquire
008	8200605	NUT	8200605 NUT (Valid from engine no. 1889) DADO	-	1	Enquire
009	8300613	STUD BOLT	8300613 STUD BOLT (Valid from engine no. 1889) PRIGIONIERO	-	1	Enquire
010	13001062	LEFT COVER	13001062 LEFT COVER (Valid from engine no. 1889) COPERCHIO SX	-	1	Enquire
011	8401621	WASHER	8401621 WASHER (Valid from engine no. 1889) RONDELLA	-	4	Enquire
012	13001440	CONNECTION	13001440 CONNECTION (Valid from engine no. 1889) RACCORDO	-	2	Enquire
013	13001439	SCREW	13001439 SCREW (Valid from engine no. 1889) VITE	-	2	Enquire
014	8401621	WASHER	8401621 WASHER (Valid from engine no. 1889) RONDELLA	-	2	Enquire
015	1330455	CONNECTION	1330455 CONNECTION (Valid from engine no. 1889) RACCORDO	-	1	Enquire
016	1326311	GASKET	1326311 GASKET (Valid from engine no. 1889) GUARNIZIONE	-	2	Enquire
017	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER (Valid from engine no. 1889) CORPO FARFALLATO SX	-	1	Enquire
018	8201003	NUT	8201003 NUT (Valid from engine no. 1889) DADO	-	4	Enquire
019	8401008	WASHER	8401008 WASHER (Valid from engine no. 1889) RONDELLA	-	4	Enquire
020	8301043	STUD	8301043 STUD (Valid from engine no. 1889) PRIGIONIERO	-	4	Enquire
021	1330882	CONNECTION	1330882 CONNECTION (Valid from engine no. 1889) RACCORDO	-	1	Enquire
022	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER (Valid from engine no. 1889) CORPO FARFALLATO DX	-	1	Enquire
023	WHT003577	DOWEL	WHT003577 DOWEL (Valid from engine no. 1889) GRANO	-	4	Enquire
024	WHT003028	THREADED PIN	WHT003028 THREADED PIN (Valid from engine no. 1889) PRIGIONIERO	-	8	Enquire
025	WHT000771	WASHER	WHT000771 WASHER (Valid from engine no. 1889) RONDELLA	-	8	Enquire
026	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT (Valid from engine no. 1889) DADO	-	8	Enquire
027	1732808	GASKET	1732808 GASKET (Valid from engine no. 1889) GUARNIZIONE	-	1	Enquire
028	17006576	THERMOSTAT	17006576 THERMOSTAT (Valid from engine no. 1889) TERMOSTATO	-	1	Enquire
029	1732806	COVER	1732806 COVER (Valid from engine no. 1889) COPERCHIO	-	1	Enquire
030	8300803	STUD BOLT	8300803 STUD BOLT (Valid from engine no. 1889) PRIGIONIERO	-	4	Enquire
031	WHT000771	WASHER	WHT000771 WASHER (Valid from engine no. 1889) RONDELLA	-	4	Enquire
032	8200816	NUT	8200816 NUT (Valid from engine no. 1889) DADO	-	4	Enquire
033	1327641	POTENTIOMETER	1327641 POTENTIOMETER (Valid from engine no. 1889) POTENZIOMETRO	-	1	Enquire
034	1335307	BRACKET	1335307 BRACKET (Valid from engine no. 1889) STAFFA	-	2	Enquire
