Front Brakes of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

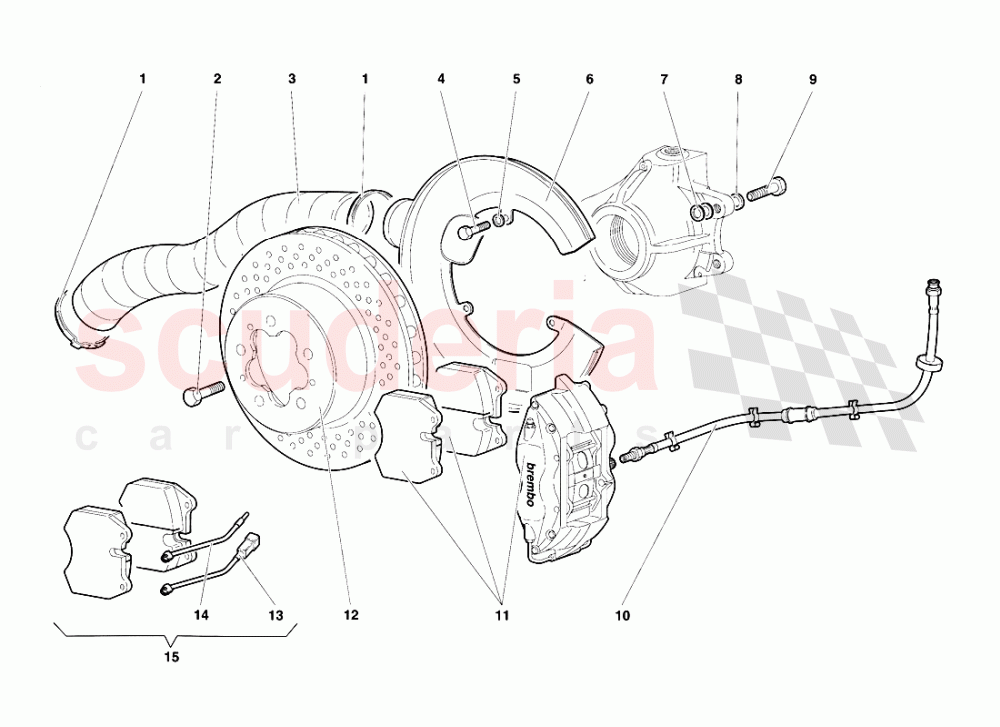

Lamborghini Diablo SV (1995-1997) - Front Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8837501	STRAP	8837501 STRAP FASCETTA	$17.09	4
002	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$1.22 MSRP: ~~7.23~~ (83.1% off)	6
003	9453133	PIPE	9453133 PIPE TUBO	$244.43	2
004	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$0.67 MSRP: ~~7.31~~ (90.8% off)	6
005	8410503	WASHER	8410503 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	6
006	3137075	RIGTH MUDGUARDS	3137075 RIGTH MUDGUARDS PARASPRUZZI DX	$299.02	1
006	3137076	LEFT MUDGUARDS	3137076 LEFT MUDGUARDS PARASPRUZZI SX	$299.02	1
007	3230721	SHIM	3230721 SHIM DISTANZIALE 0,2 MM	$0.40	1
007	3230720	SHIM	3230720 SHIM DISTANZIALE 0,1 MM	$14.65	1
007	3230727	SHIM	3230727 SHIM DISTANZIALE 1 MM	$3.24	1
007	3230724	SHIM	3230724 SHIM DISTANZIALE 0,5 MM	$0.40	1
008	8401306	WASHER	8401306 WASHER RONDELLA	$2.29	4
009	3132195	SCREW	3132195 SCREW VITE	$30.77	4
010	3229882	PIPE IN STOCK	3229882 PIPE TUBO IN STOCK	$172.36 MSRP: ~~174.50~~ (1.2% off)	2
011	3133609	BRAKE CALIPER CPL.	3133609 BRAKE CALIPER CPL. PINZA FRENI SX (GALFER)	$2,748.14	1
011	3133610	BRAKE CALIPER CPL.	3133610 BRAKE CALIPER CPL. PINZA FRENI DX (GALFER)	$2,748.14	1
012	3137349	BRAKE DISC	3137349 BRAKE DISC DISCO FRENO	$786.61	2
013	3135644	ELECT CABLE	3135644 ELECT CABLE CAVO ELETTRICO	$352.36	2
014	3135643	ELECT CABLE	3135643 ELECT CABLE CAVO ELETTRICO	$30.84	2
015	3136085	FRO. BRAK. PADS KIT	3136085 FRO. BRAK. PADS KIT KIT PASTIGLIE FRENO PAGID	$1,032.26	1
015	3136086	FRO. BRAK. PADS KIT	3136086 FRO. BRAK. PADS KIT KIT PASTIGLIE FRENO GALFER	-	1	Enquire
