Brake System of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

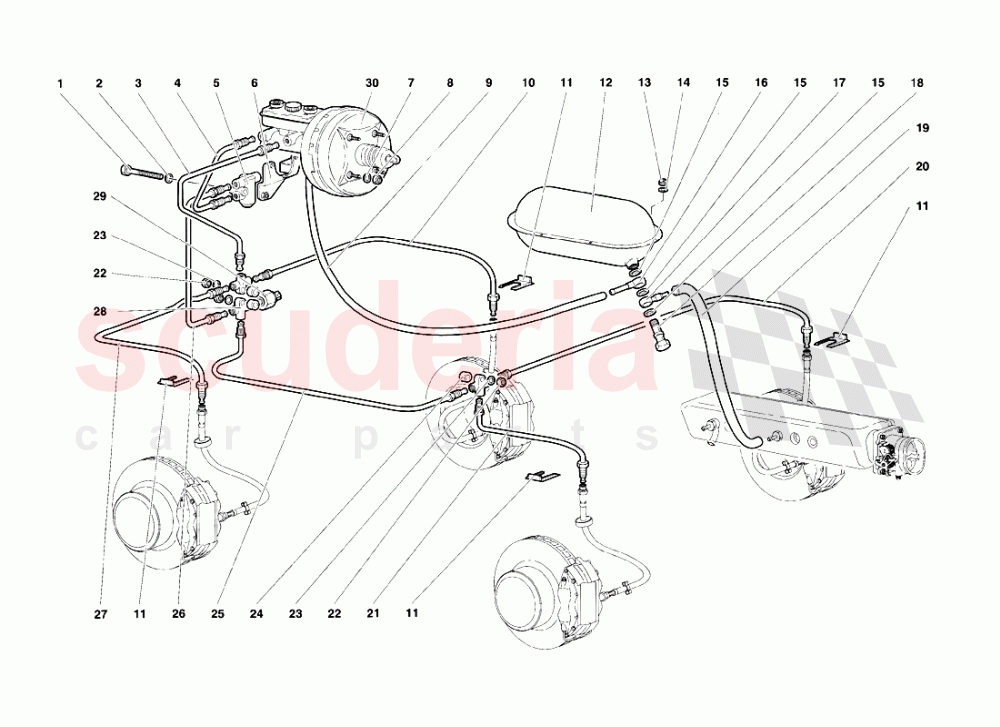

Lamborghini Diablo SV (1995-1997) - Brake System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8100810	SCREW	8100810 SCREW VITE	-	1	Enquire
002	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
003	3131522	PIPE	3131522 PIPE TUBO	$159.43	1
004	3234633	PIPE	3234633 PIPE TUBO	$168.13	1
005	3229833	BRAKE COMPENSATOR	3229833 BRAKE COMPENSATOR RIPARTiTORE Dl FRENATA	$467.76	1
006	4236495	SUPPORT - SUPPORTO	4236495 SUPPORT - SUPPORTO O	$113.41	1
007	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	4
008	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
009	3226068	PIPE	3226068 PIPE TUBO	$186.73 MSRP: ~~195.00~~ (4.2% off)	1
010	3133449	PIPE	3133449 PIPE TUBO	$36.06	1
011	191611715	HOSE BRACKET	191611715 HOSE BRACKET PIASTRA	$2.08 MSRP: ~~7.14~~ (70.9% off)	4
012	3204974	Vacum tank	3204974 Vacum tank SERBATOIO A DEPRES-	$4,769.43	1
013	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.76	4
014	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	4
015	3101513	WASHER IN STOCK	3101513 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.32~~ (80.3% off)	3
016	3230031	CONNECTION	3230031 CONNECTION RACCORDO	$34.62	1
017	3230030	VALVE	3230030 VALVE VALVOLA Dl NON RITORNO	$26.68	1
018	3101486	SCREW	3101486 SCREW VITE FORATA	$32.14	1
019	410611937	VACUUM MANIFOLD BRANCH PIPE	410611937 VACUUM MANIFOLD BRANCH PIPE TUBO	$86.02	1
020	3233451	PIPE	3233451 PIPE TUBO	$79.19	1
021	3233450	PIPE	3233450 PIPE TUBO	$150.54	1
022	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	3
023	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
024	3130441	BUSHING	3130441 BUSHING BOCCOLA	$18.93	3
025	3233558	PIPE	3233558 PIPE TUBO	$129.66	1
026	3235237	PIPE	3235237 PIPE TUBO	$27.99	1
027	3131523	PIPE	3131523 PIPE TUBO	$105.95	1
028	3208682	CONNECTION	3208682 CONNECTION RACCORDO	$55.02	3
029	3208693	STOP SWITCH	3208693 STOP SWITCH INTERRUTTORE STOP	$121.46	1
030	4224655	BRAKE-SERVO	4224655 BRAKE-SERVO LHD & RHD	$2,221.89	1
