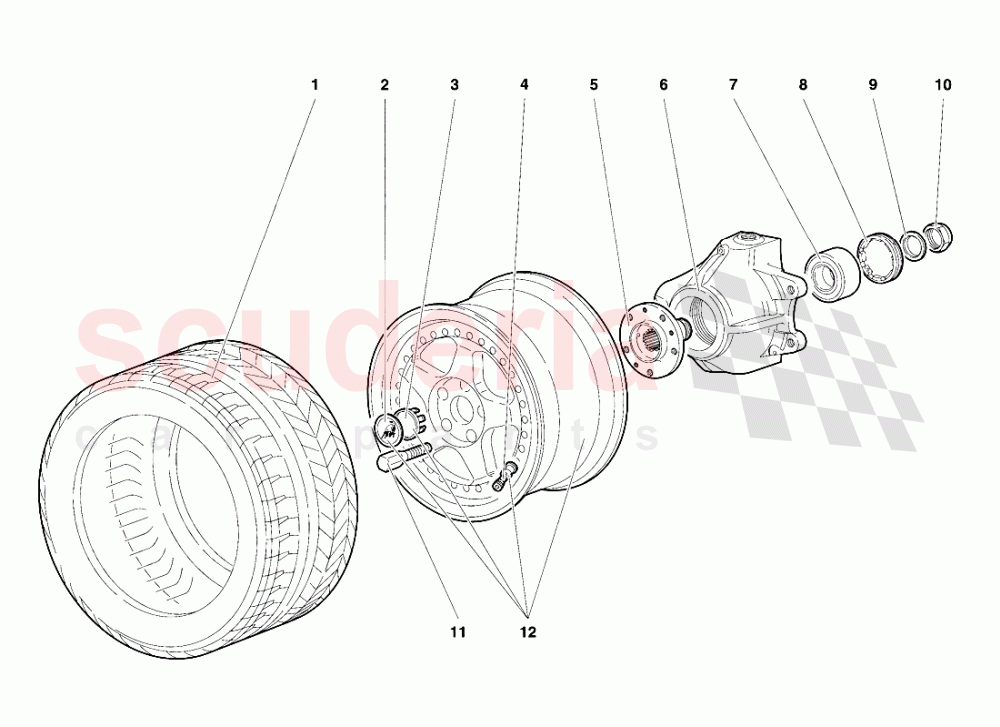

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5333230	FRONT TIRE/TYRE	5333230 FRONT TIRE/TYRE PNEUMATICO ANTERIORE	-	2	Enquire
002	5236291	ORNAMENT	5236291 ORNAMENT FREGIO -USE: 0052006285	$34.81	2
003	5236290	PLUG - PLUG - USE: 0052006285	5236290 PLUG - PLUG - USE: 0052006285 - USE: 0052006285	$72.58	2
004	5330906	VALVE	5330906 VALVE VALVOLA	$51.18	2
005	5137149	HUB	5137149 HUB MOZZO	$502.48	2
006	5137347	LEFT HUB HOUSING	5137347 LEFT HUB HOUSING PORTAMOZZO SX	$1,161.30	1
006	5137348	RIGHT HUB HOUSING	5137348 RIGHT HUB HOUSING PORTAMOZZO DX	$2,444.16	1
007	8515002	BEARING IN STOCK	8515002 BEARING CUSCINETTO IN STOCK	$122.34	2
008	5133902	PLUG	5133902 PLUG GHIERA	$122.45	2
009	5134901	WASHER	5134901 WASHER RONDELLA	$36.16	2
010	410501226	RING NUT	410501226 RING NUT DADO	$200.96	2
011	5237310	STUD	5237310 STUD COLONNETTA	$31.02	10
012	5137413	FRONT RIM	5137413 FRONT RIM 17'' size	$1,780.39	2
