Front Suspension of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

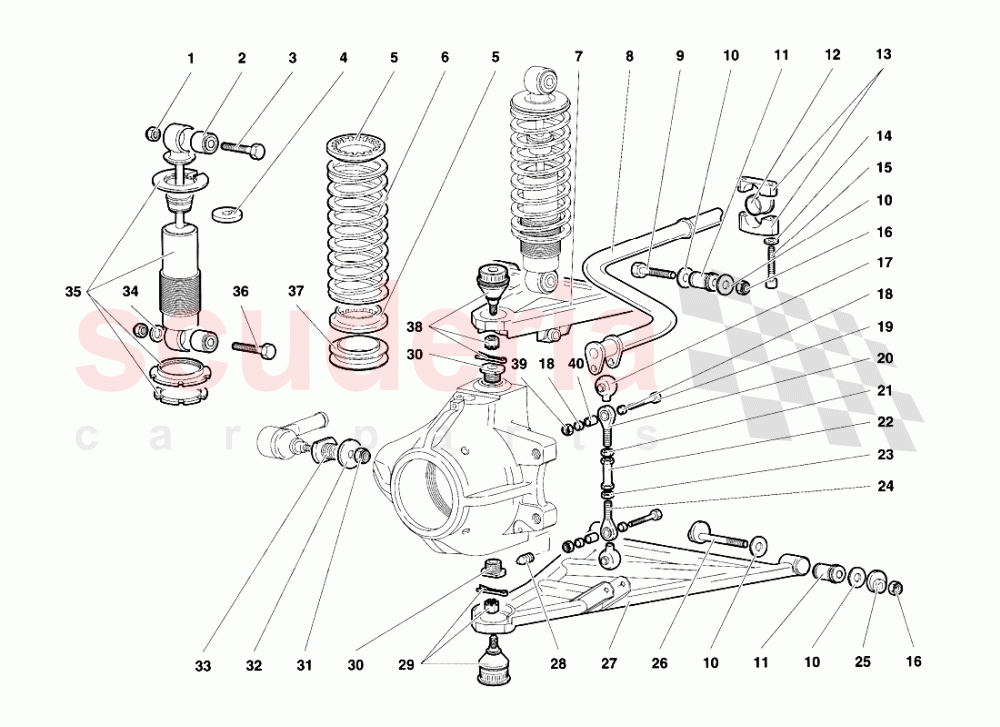

Lamborghini Diablo SE30 (1993-1995) - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 DADO	-	4	Enquire
002	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	-	4	Enquire
003	8101259	SCREW	8101259 SCREW VITE	-	2	Enquire
004	5131484	SPACER	5131484 SPACER DISTANZIALE	-	2	Enquire
005	410512385	RUBBER RING	410512385 RUBBER RING	-	4	Enquire
006	5135181	FRONT SUSPE. SPRING	5135181 FRONT SUSPE. SPRING MOLLA X SOSPENS.ANTER.	-	2	Enquire
007	5133345	ARM	5133345 ARM BRACCIO SUP.SX.	-	1	Enquire
007	5133344	ARM	5133344 ARM BRACCIO SUP.DX.	-	1	Enquire
008	5134057	TORSION BAR	5134057 TORSION BAR BARRA Dl TORSIONE ANTER.	-	1	Enquire
009	8101269	SCREW	8101269 SCREW VITE	-	4	Enquire
010	410407295D	WASHER	410407295D WASHER RONDELLA SP = 3 MM	-	1	Enquire
010	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM RONDELLA SP = 2 MM	-	1	Enquire
010	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM RONDELLA SP = 2,5 MM	-	1	Enquire
010	5133488	SHIM	5133488 SHIM RONDELLA SP = 1,5 MM	-	1	Enquire
010	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM RONDELLA SP = 1 MM	-	1	Enquire
011	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	-	8	Enquire
012	5238302	BUSHING	5238302 BUSHING BOCCOLA X BARRA Dl TORSIONE	-	2	Enquire
013	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	-	2	Enquire
014	8410602	WASHER	8410602 WASHER RONDELLA	-	4	Enquire
015	8700609	SCREW	8700609 SCREW VITE	-	4	Enquire
016	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25 DADO	-	8	Enquire
017	5109714	BOOT	5109714 BOOT CAPPUCCIO	-	4	Enquire
018	5227297	BUSHING	5227297 BUSHING BOCCOLA X SNODO SFERICO	-	8	Enquire
019	8100810	SCREW	8100810 SCREW VITE	-	4	Enquire
020	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	-	2	Enquire
021	8201014	NUT	8201014 NUT DADO	-	2	Enquire
022	5209770	TIE ROD	5209770 TIE ROD TIRANTE	-	2	Enquire
023	8201016	NUT	8201016 NUT DADO	-	2	Enquire
024	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	-	2	Enquire
025	410407127A	BOLT	410407127A BOLT ECCENTRICO	-	4	Enquire
026	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	-	4	Enquire
027	5133038	ARM	5133038 ARM BRACCIO INFERIORE DX.	-	1	Enquire
027	5133039	ARM	5133039 ARM BRACCIO INFERIORE SX.	-	1	Enquire
028	8700606	SCREW	8700606 SCREW VITE	-	4	Enquire
029	410407361B	COUPLING	410407361B COUPLING TESTA A SNODO	-	2	Enquire
030	410407171C	BUSH	410407171C BUSH BUSSOLA PORTAM.X BRACCI	-	4	Enquire
031	8201003	NUT	8201003 NUT DADO	-	2	Enquire
032	8401230	WASHER	8401230 WASHER RONDELLA	-	2	Enquire
033	5129541	BUSHING	5129541 BUSHING BUSSOLA	-	2	Enquire
034	8401234	WASHER	8401234 WASHER RONDELLA	-	12	Enquire
035	5129802	SHOCK ABSORBER	5129802 SHOCK ABSORBER AMMORTIZZATORE ANT.	-	2	Enquire
036	5133229	SCREW	5133229 SCREW VITE	-	2	Enquire
037	5135183	SPACER	5135183 SPACER DISTANZIALE	-	2	Enquire

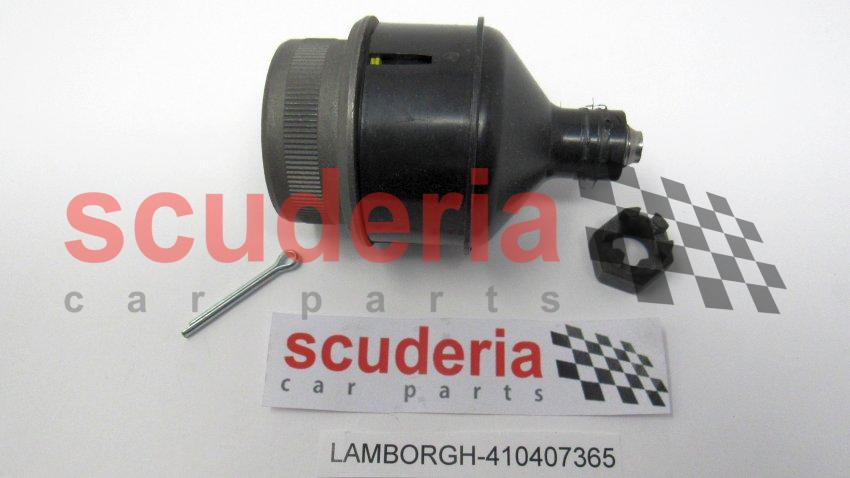

038	410407365	Coupling	410407365 Coupling TESTA A SNODO	-	2	Enquire
039	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
040	5227298	BUSHING	5227298 BUSHING BOCCOLA	-	4	Enquire
