Steering 2 of Lamborghini Lamborghini Diablo SE30 (1993-1995)

View All

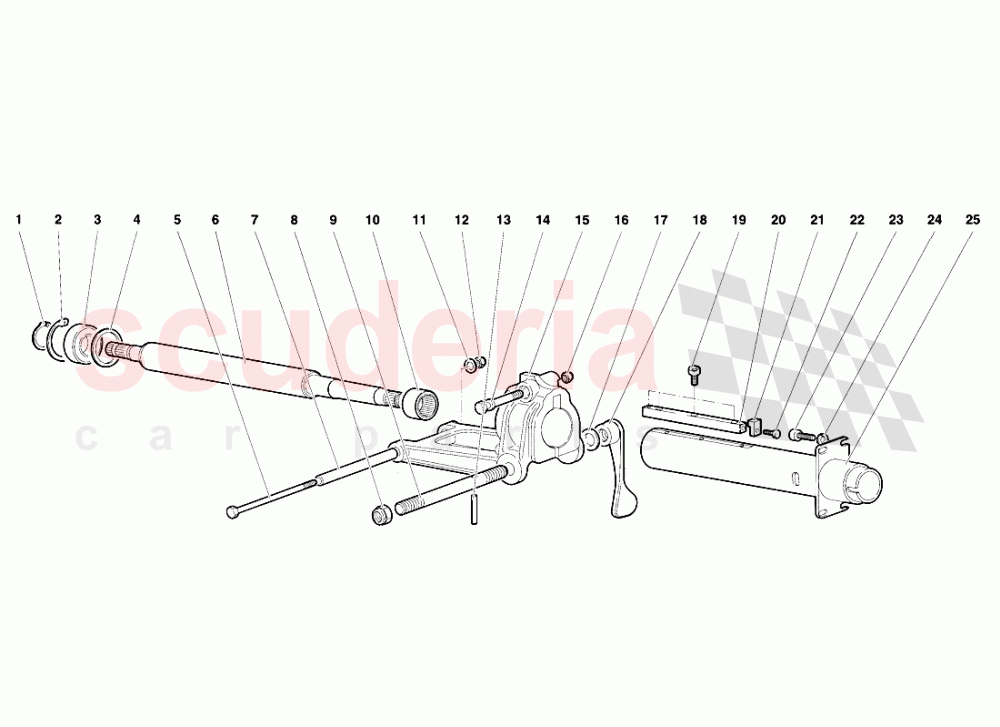

Lamborghini Diablo SE30 (1993-1995) - Steering 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8581501	RETAINER RING	8581501 RETAINER RING ANELLO RITEGNO	-	1	Enquire
002	7M109381	RETAINING RING	7M109381 RETAINING RING ANELLO RITEGNO	-	1	Enquire
003	8501703	BEARING	8501703 BEARING CUSCINETTO	-	1	Enquire
004	4330714	SHIM	4330714 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
004	4330715	SHIM	4330715 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
004	4330716	SHIM	4330716 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
005	8100815	SCREW	8100815 SCREW VITE	-	1	Enquire
006	4319324	STEERING COLUMN	4319324 STEERING COLUMN PIANTONE STERZO	-	1	Enquire
007	4309824	PIN	4309824 PIN PERNO	-	1	Enquire
008	8201416	NUT	8201416 NUT DADO	-	1	Enquire
009	4331627	PIN	4331627 PIN PERNO	-	1	Enquire
010	8522002	BEARING	8522002 BEARING CUSCINETTO	-	1	Enquire
011	8400801	WASHER	8400801 WASHER RONDELLA	-	1	Enquire
012	8200804	NUT M8	8200804 NUT M8 DADO	-	1	Enquire
013	8900401	PIN	8900401 PIN SA	-	1	Enquire
014	8100852	SCREW	8100852 SCREW VITE	-	1	Enquire
015	4327449	SUPPORT - SUPPORTO CANOTTO	4327449 SUPPORT - SUPPORTO CANOTTO O CANOTTO	-	1	Enquire
016	8200804	NUT M8	8200804 NUT M8 DADO	-	1	Enquire
017	8401427	WASHER	8401427 WASHER RONDELLA	-	1	Enquire
018	4331626	LEVER	4331626 LEVER LEVA	-	1	Enquire
019	N10648502	SCREW M5X10	N10648502 SCREW M5X10 VITE	-	4	Enquire
020	4310698	GUIDE	4310698 GUIDE GUIDA	-	1	Enquire
021	4330628	LOCK KEY	4330628 LOCK KEY CHIAVE Dl FERMO	-	1	Enquire
022	8100401	SCREW	8100401 SCREW VITE	-	1	Enquire
023	8700611	SCREW UNI 5931 6X14	8700611 SCREW UNI 5931 6X14 VITE	-	4	Enquire
024	8410603	WASHER	8410603 WASHER RONDELLA	-	4	Enquire
025	4330288	PIPE	4330288 PIPE TUBO PORTA ALBERO	-	1	Enquire
