Pedal Mounting of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

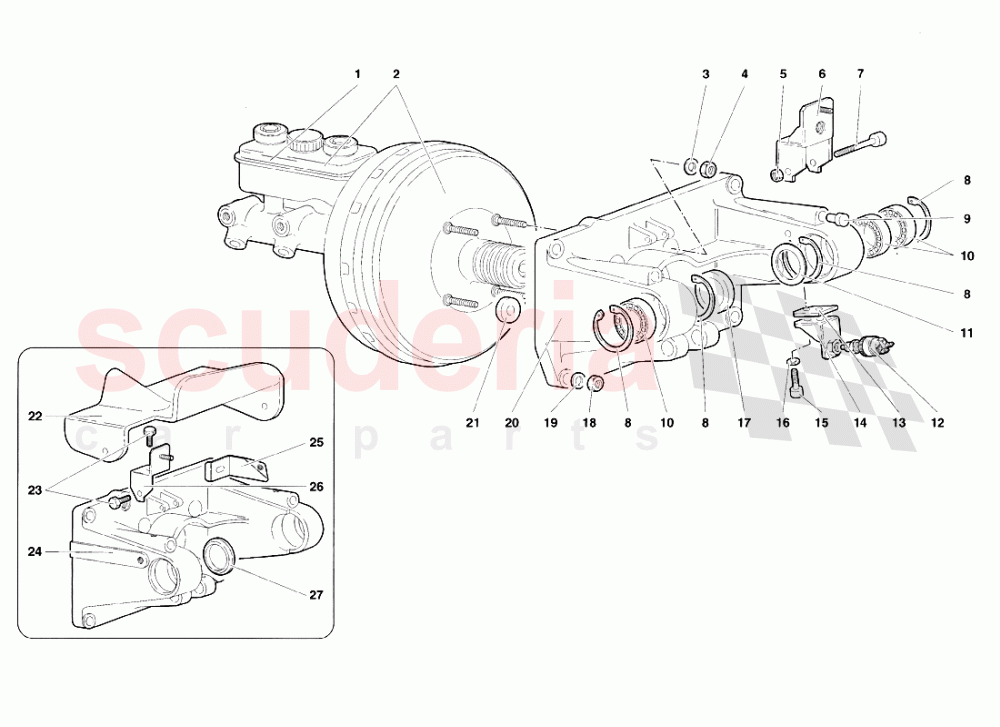

Lamborghini Diablo VT Roadster (1998-2000) - Pedal Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4236817	BRAKE-SERVO RESER.	4236817 BRAKE-SERVO RESER. SERBATOIO SERVOFRENO	-	1	Enquire
002	42001085	BRAKE-SERVO	42001085 BRAKE-SERVO SERVOFRENO	-	1	Enquire
003	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
004	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
005	8400606	WASHER	8400606 WASHER DADO	-	2	Enquire
006	4231515	SUPPORT - SUPPORTO	4231515 SUPPORT - SUPPORTO O	-	1	Enquire
007	8700644	SCREW	8700644 SCREW VITE	-	2	Enquire
008	8573701	RETAINING RING	8573701 RETAINING RING ANELLO RITEGNO	-	4	Enquire
009	410721381	STOP	410721381 STOP	-	2	Enquire
010	8502513	BEARING	8502513 BEARING CUSCINETTO	-	3	Enquire
011	8402507	WASHER	8402507 WASHER RONDELLA	-	1	Enquire
012	42001192	ABS SWITCH	42001192 ABS SWITCH INTERRUTTORE ABS	-	1	Enquire
013	42001530	SPACER	42001530 SPACER DISTANZIALE	-	1	Enquire
014	42001489	SUPPORT - SUPPORTO	42001489 SUPPORT - SUPPORTO O	-	1	Enquire
015	8700644	SCREW	8700644 SCREW VITE	-	2	Enquire
016	8400606	WASHER	8400606 WASHER RONDELLA	-	2	Enquire
017	4230923	SPACER	4230923 SPACER DISTANZIALE	-	1	Enquire
018	8200804	NUT M8	8200804 NUT M8 DADO	-	4	Enquire
019	8400801	WASHER	8400801 WASHER RONDELLA	-	4	Enquire
020	4233483	PEDALS SUPPORT	4233483 PEDALS SUPPORT SUPPORTO PEDALIERA	-	1	Enquire
021	42000931	SPACER	42000931 SPACER DISTANZIALE	-	4	Enquire
022	4332774	SHIELD	4332774 SHIELD (Valid for U.K.1998) PROTEZIONE	-	1	Enquire
023	8700644	SCREW	8700644 SCREW (Valid for U.K.1998) VITE	-	2	Enquire
024	4233485	PEDALS SUPPORT	4233485 PEDALS SUPPORT (Valid for U.K.1998) SUPPORTO PEDALIERA	-	1	Enquire
025	4234610	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	4234610 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for U.K.1998) O	-	1	Enquire
026	4232996	PLATE	4232996 PLATE (Valid for U.K.1998) PIASTRINA	-	1	Enquire
027	4232777	SPACER	4232777 SPACER (Valid for U.K.1998) DISTANZIALE	-	1	Enquire
