Gearbox Oil Pump of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Gearbox Oil Pump

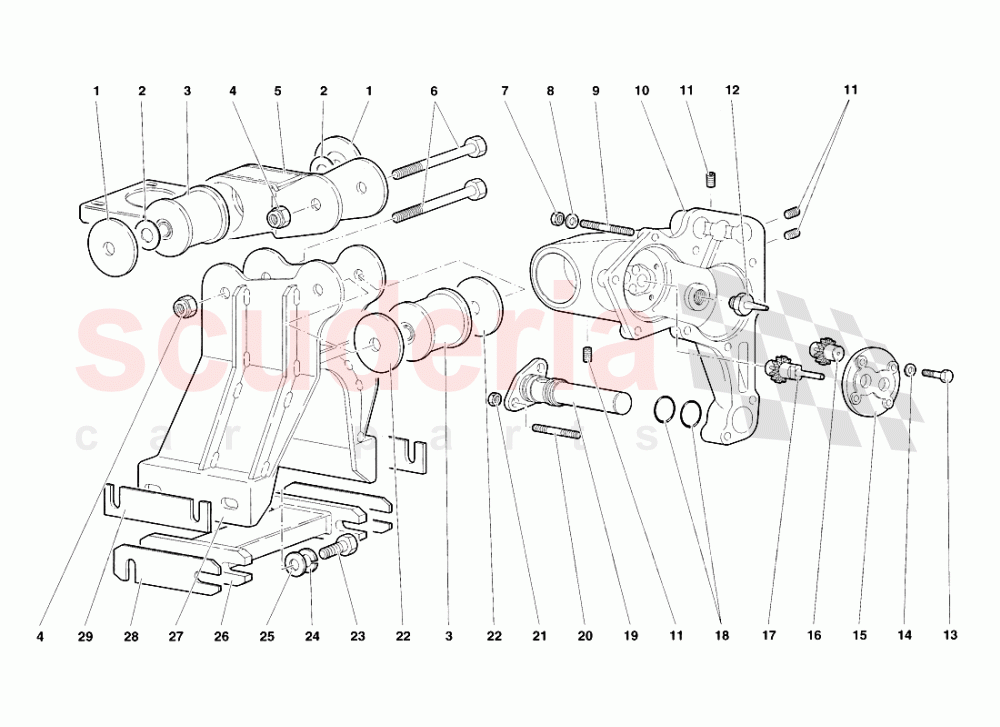

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2433939	SPACER	2433939 SPACER DISTANZIALE	$241.94	2
002	8401421	WASHER	8401421 WASHER RONDELLA	$0.53 MSRP: ~~7.29~~ (92.7% off)	2
003	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	2
004	8201414	NUT	8201414 NUT DADO	$20.59 MSRP: ~~20.90~~ (1.5% off)	2
005	2433937	SUPPORT - SUPPORTO	2433937 SUPPORT - SUPPORTO O	$415.65 MSRP: ~~421.00~~ (1.3% off)	1
006	8101411	SCREW	8101411 SCREW VITE	$6.52 MSRP: ~~6.75~~ (3.4% off)	2
007	8200806	NUT	8200806 NUT DADO	$0.36 MSRP: ~~7.33~~ (95.1% off)	8
008	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	8
009	8300840	STUD	8300840 STUD PRIGIONIERO	$3.37	8
010	2431783	COVER	2431783 COVER COPERCHIO	$2,562.04	1
011	8701204	PLUG	8701204 PLUG TAPPO	$2.09 MSRP: ~~2.15~~ (2.8% off)	4
012	2425259	JET	2425259 JET UGELLO	$20.47 MSRP: ~~21.35~~ (4.1% off)	1
013	8100617	SCREW	8100617 SCREW VITE	$5.82 MSRP: ~~6.00~~ (3% off)	4
014	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
015	2431778	COVER	2431778 COVER COPERCHIO	$430.52	1
016	2425185	DRIVEN GEAR	2425185 DRIVEN GEAR INGRANAGGIO CONDOTTO	$555.82 MSRP: ~~579.00~~ (4% off)	1
017	2425184	GEAR	2425184 GEAR INGRANAGGIO	$492.57 MSRP: ~~513.00~~ (4% off)	1
018	8602301	SEAL	8602301 SEAL ANELLO TENUTA	$1.74 MSRP: ~~7.04~~ (75.3% off)	2
019	2425246	OIL FILTER	2425246 OIL FILTER FILTRO OLIO	$176.61	1
020	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	$6.09 MSRP: ~~6.30~~ (3.3% off)	2
021	8200821	NUT	8200821 NUT DADO	$2.81	2
022	2434272	WASHER	2434272 WASHER RONDELLA	$50.08	2
023	8100862	SCREW	8100862 SCREW VITE	$0.64	4
024	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	4
025	8400802	WASHER	8400802 WASHER RONDELLA	$1.50 MSRP: ~~7.27~~ (79.4% off)	4
026	2433990	CROSSRAIL	2433990 CROSSRAIL TRAVERSA	$45.97	1
027	2433346	SUPPORT - SUPPORTO	2433346 SUPPORT - SUPPORTO O	$434.25 MSRP: ~~439.00~~ (1.1% off)	1
028	2433991	SPACER	2433991 SPACER DISTANZIALE	$61.24	1
029	4126766	SPACER	4126766 SPACER DISTANZIALE	-	1	Enquire
