Front Differential Case (Version 4X) of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

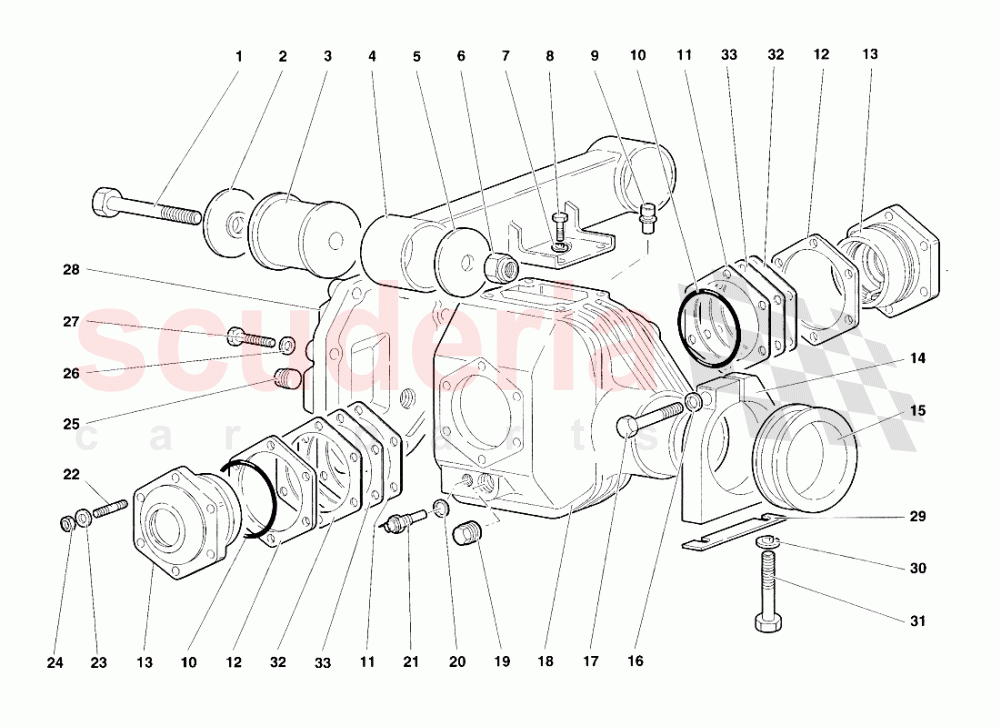

Lamborghini Diablo VT Roadster (1998-2000) - Front Differential Case (Version 4X)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8101434	SCREW	8101434 SCREW VITE	$2.81	2
002	4134280	WASHER	4134280 WASHER RONDELLA	$44.91 MSRP: ~~46.95~~ (4.3% off)	2
003	B9501144	support mount	B9501144 support mount	$243.94	2
004	2326142	SUPPORT - SUPPORTO	2326142 SUPPORT - SUPPORTO O	$225.82	1
005	8401415	WASHER	8401415 WASHER RONDELLA	$16.51	2
006	8201416	NUT	8201416 NUT DADO	$1.74	2
007	N0152785	WASHER	N0152785 WASHER RONDELLA	$0.40	4
008	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$1.22 MSRP: ~~7.23~~ (83.1% off)	4
009	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO	$69.10	1
010	WHT002158	SEAL RING	WHT002158 SEAL RING ANELLO TENUTA	$20.84	2
011	2336158	SHIM	2336158 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
011	2334027	SHIM	2334027 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
012	2334026	SHIM	2334026 SHIM SPESSORE Dl REGISTRO	-	2	Enquire
013	2334044	FLANGE	2334044 FLANGE FLANGIA	$217.75	2
014	400399177	COLLAR	400399177 COLLAR	$135.74	1
015	2325441	CLAMP	2325441 CLAMP STAFFA-COLLARE	$267.37	1
016	WHT000768	WASHER	WHT000768 WASHER	$1.96 MSRP: ~~7.28~~ (73.1% off)	1
017	8101018	SCREW	8101018 SCREW VITE	$0.56 MSRP: ~~7.28~~ (92.3% off)	1
018	2325400	CASE	2325400 CASE SCATOLA DIFFER.	$3,641.44	1
019	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$37.19	1
020	8401425	WASHER	8401425 WASHER RONDELLA	-	1	Enquire
021	6033681	TEMPERATURE SENS.	6033681 TEMPERATURE SENS. SENSORE	-	1	Enquire
022	8300801	STUD	8300801 STUD PRIGIONIERO	$6.40 MSRP: ~~6.60~~ (3% off)	12
023	WHT000771	WASHER	WHT000771 WASHER RONDELLA	$1.19	12
024	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	$1.89	12
025	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO	$37.19	1
026	WHT000771	WASHER	WHT000771 WASHER RONDELLA	$1.19	8
027	8100821	SCREW	8100821 SCREW VITE	$1.26	8
028	2325401	COVER	2325401 COVER COPERCHIO SCATOLA	$240.08	1
029	4134398	SHIM	4134398 SHIM SPESSORE Dl REGISTRO 2 MM	$10.62 MSRP: ~~10.75~~ (1.2% off)	1
029	4134397	SHIM	4134397 SHIM SPESSORE Dl REGISTRO 1,5 MM	$10.62 MSRP: ~~10.75~~ (1.2% off)	1
030	8411005	WASHER	8411005 WASHER RONDELLA	$0.07	2
031	8101031	SCREW	8101031 SCREW VITE	$0.92 MSRP: ~~7.24~~ (87.3% off)	2
032	23002122	SHIM	23002122 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
033	23002142	SHIM	23002142 SHIM SPESSORE Dl REGISTRO	-	1	Enquire
