Climate Control 3 of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

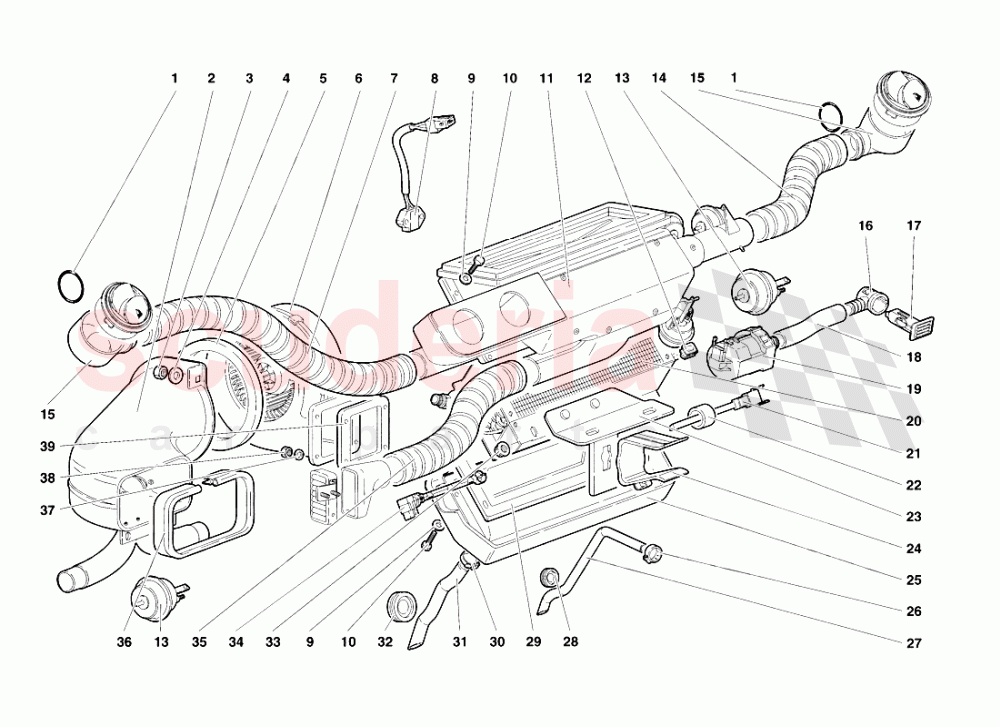

Lamborghini Diablo VT Roadster (1998-2000) - Climate Control 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8604401	SEAL	8604401 SEAL ANELLOTENUTA	$0.33 MSRP: ~~7.33~~ (95.5% off)	2
002	9453182	CONVEYOR	9453182 CONVEYOR CONVOGLIATORE	$732.01	1
003	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	3
004	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	3
005	9490202	GASKET	9490202 GASKET GUARNIZIONE	$10.49	1
006	4537176	ELECTROFAN	4537176 ELECTROFAN ELETTROVENTILATORE	$387.11	1
007	9414546	PIPE	9414546 PIPE TUBO	$20.53 MSRP: ~~24.31~~ (15.5% off)	1
008	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMP. ESTERNA	$233.07	1
009	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System) RONDELLA	$7.53	8
010	8100502	SCREW IN STOCK	8100502 SCREW VITE IN STOCK	$0.16	8
011	9414038	CONVEYOR	9414038 CONVEYOR CONVOGLIATORE	-	1	Enquire
012	8220503	CLIP	8220503 CLIP MOLLETTA	$10.49 MSRP: ~~10.90~~ (3.8% off)	8
013	9414548	CONTROL	9414548 CONTROL ATTUATORE	-	6	Enquire
014	9414545	PIPE	9414545 PIPE TUBO	$807.69	1
015	7014135	CONNECTION	7014135 CONNECTION RACCORDO	-	2	Enquire
016	4526666	CONNECTION	4526666 CONNECTION RACCORDO	$34.68	1
017	4526661	TEMPERATURE SENS.	4526661 TEMPERATURE SENS. SENSORE TEMP. ABITACOLO	$169.98 MSRP: ~~172.00~~ (1.2% off)	1
018	6032223	PIPE	6032223 PIPE TUBO	$9.61 MSRP: ~~10.00~~ (3.9% off)	1
019	4526665	ELECTROFAN	4526665 ELECTROFAN ELETTROVENTOLA	$338.73	1
020	4535410	EVAPORATOR - EVAPORATORE - RISCALDATORE	4535410 EVAPORATOR - EVAPORATORE - RISCALDATORE E - RISCALDATORE	$423.06 MSRP: ~~428.00~~ (1.2% off)	1
021	4526663	TEMPERATURE SENS.	4526663 TEMPERATURE SENS. SENSORE TEMPERATURA	$1,968.56	1
022	4532839	PIPE	4532839 PIPE PROTEZIONE	$10.00 MSRP: ~~10.15~~ (1.5% off)	1
023	5931538	SUPPORT - SUPPORTO	5931538 SUPPORT - SUPPORTO O	$39.95	1
024	5931539	SUPPORT - SUPPORTO RADIO	5931539 SUPPORT - SUPPORTO RADIO O RADIO	$2.50 MSRP: ~~2.55~~ (2% off)	1
025	9414505	CONVEYOR	9414505 CONVEYOR CONVOGLIATORE	$274.21	1
026	N0245097	CLAMP	N0245097 CLAMP FASCETTA	$18.10	1
027	9414537	PIPE	9414537 PIPE TUBO SCARICO	$38.78	1
028	8612804	RUBBER RING	8612804 RUBBER RING GUARNIZIONE	$6.28 MSRP: ~~6.55~~ (4.1% off)	1
029	9490203	GASKET	9490203 GASKET GUARNIZIONE	$18.68 MSRP: ~~18.90~~ (1.2% off)	1
030	8832806	STRAP	8832806 STRAP FASCETTA	$3.06	1
031	9414540	PIPE	9414540 PIPE TUBO SCARICO	$63.65	1
032	8611606	GASKET	8611606 GASKET GUARNIZIONE	$1.74 MSRP: ~~7.04~~ (75.3% off)	1
033	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.21	2
034	4526664	TEMPERATURE SENS.	4526664 TEMPERATURE SENS. SENSORE TEMP. ARIA	$39.45	1
035	9414544	PIPE	9414544 PIPE TUBO	$13.59 MSRP: ~~13.75~~ (1.2% off)	1
036	9490201	GASKET	9490201 GASKET GUARNIZIONE	$43.80	1
037	8400401	WASHER	8400401 WASHER RONDELLA	$0.13	4
038	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	4
039	4731661	GASKET	4731661 GASKET GUARNIZIONE	$9.55 MSRP: ~~9.70~~ (1.5% off)	1
