Engine Oil System of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

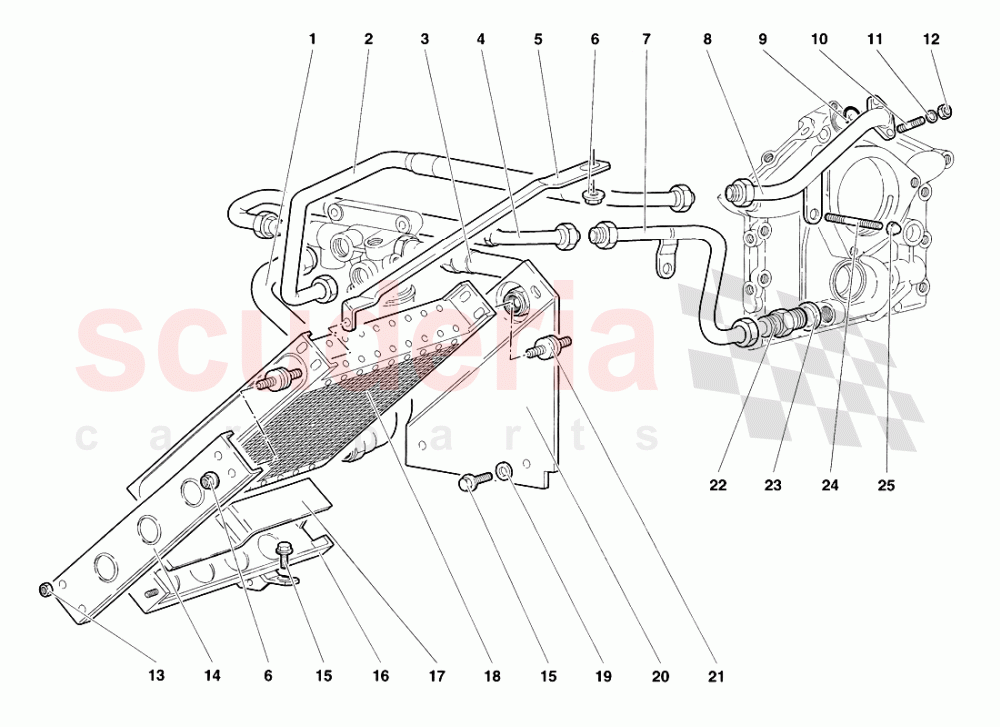

Lamborghini Diablo VT Roadster (1998-2000) - Engine Oil System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	15001970	FLEX. HOSE	15001970 FLEX. HOSE TUBO FLESSIBILE	$881.52	1
002	1535966	PIPE	1535966 PIPE TUBO	$269.23	1
003	15001970	FLEX. HOSE	15001970 FLEX. HOSE TUBO FLESSIBILE	$881.52	1
004	1535965	PIPE	1535965 PIPE TUBO	$508.06	1
005	4138028	TIE ROD	4138028 TIE ROD TIRANTE	$97.14	1
006	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT DADO	$0.21	5
007	1537292	PIPE	1537292 PIPE TUBO	$385.88 MSRP: ~~402.00~~ (4% off)	1
008	1535967	PIPE	1535967 PIPE TUBO	$125.92	1
009	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	$6.61	1
010	8300828	STUD	8300828 STUD PRIGIONIERO	-	2	Enquire
011	8410820	WASHER	8410820 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
012	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT DADO	$1.89	2
013	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	$2.04	2
014	4138030	BRACKET	4138030 BRACKET STAFFA	$29.03	1
015	N90319404	SCREW	N90319404 SCREW VITE	$1.89	5
016	4138033	SUPPORT - SUPPORTO	4138033 SUPPORT - SUPPORTO O	$204.82	1
017	410813585	RUBBER WEATHER-	410813585 RUBBER WEATHER- PROFILATO GOMMA	$13.97	1
018	7M117021	OIL RADIATOR	7M117021 OIL RADIATOR RADIATORE OLIO	$4,334.67	1
019	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	2
020	4138040	SUPPORT - SUPPORTO	4138040 SUPPORT - SUPPORTO O	$68.05	1
021	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$14.65	2
022	400115707	CONNECTOR	400115707 CONNECTOR RACCORDO	$34.14	1
023	8403007	WASHER	8403007 WASHER RONDELLA	$1.10	1
024	8300905	STUD	8300905 STUD PRIGIONIERO	$18.60 MSRP: ~~19.45~~ (4.4% off)	1
025	8200816	NUT	8200816 NUT DADO	$5.14	1
