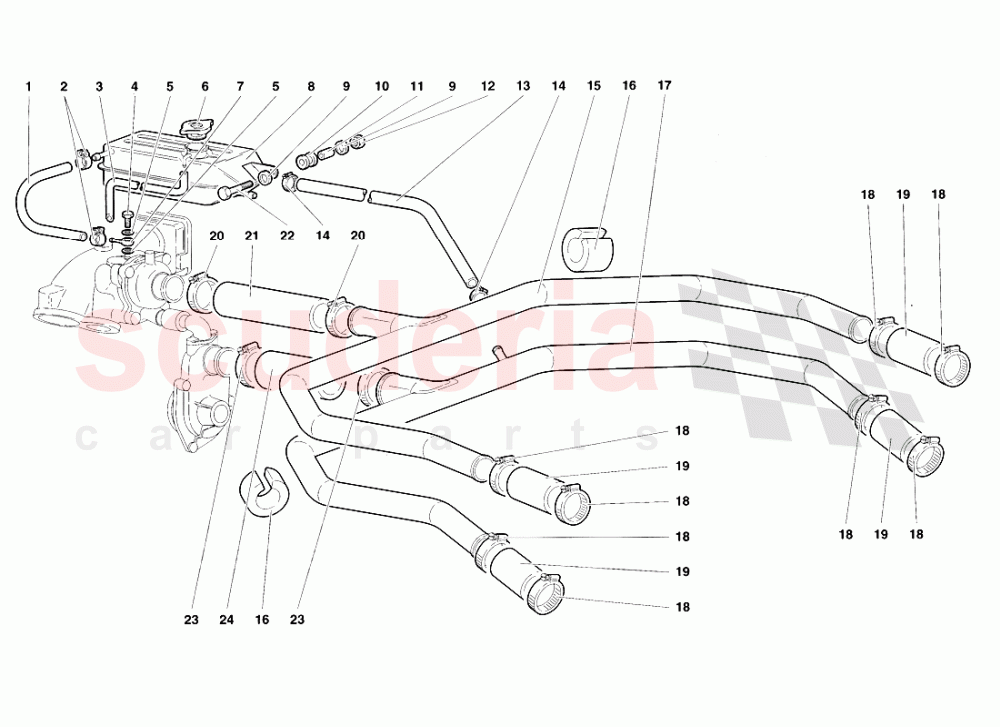

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1735264	PIPE	1735264 PIPE TUBO	-	1	Enquire
002	8830817	CLAMP	8830817 CLAMP FASCETTA	-	2	Enquire
003	1731993	PIPE	1731993 PIPE TUBO	-	1	Enquire
004	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	-	1	Enquire
005	8400818	WASHER	8400818 WASHER RONDELLA	-	2	Enquire
006	1734185	TANK CAP	1734185 TANK CAP TAPPO SERBATOIO	-	1	Enquire
007	1733714	CONNECTION	1733714 CONNECTION RACCORDO	-	1	Enquire
008	1733712	RESERVOIR	1733712 RESERVOIR SERBATOIO	-	1	Enquire
009	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	2	Enquire
010	8610903	RUBBER BUSHING	8610903 RUBBER BUSHING BOCCOLA GOMMA	-	1	Enquire
011	8800602	BUSHING	8800602 BUSHING BOCCOLA	-	1	Enquire
012	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	1	Enquire
013	1737088	PIPE	1737088 PIPE TUBO	-	1	Enquire
014	8831524	STRAP	8831524 STRAP FASCETTA	-	2	Enquire
015	1735106	PIPE	1735106 PIPE TUBO	-	1	Enquire
016	7L121199	PROTECTION	7L121199 PROTECTION PROTEZIONE	-	4	Enquire
017	17001314	PIPE	17001314 PIPE TUBO	-	1	Enquire
018	8833001	STRAP	8833001 STRAP FASCETTA	-	8	Enquire
019	1730574	PIPE	1730574 PIPE TUBO	-	4	Enquire
020	N0245022	CLAMP	N0245022 CLAMP FASCETTA	-	2	Enquire
021	1732812	PIPE	1732812 PIPE TUBO	-	1	Enquire
022	8100623	SCREW	8100623 SCREW VITE	-	1	Enquire
023	8834501	STRAP	8834501 STRAP FASCETTA	-	2	Enquire
024	7M121057	PIPE	7M121057 PIPE	-	1	Enquire
