Passenger Compartment Interior Panels Without Air Bag of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

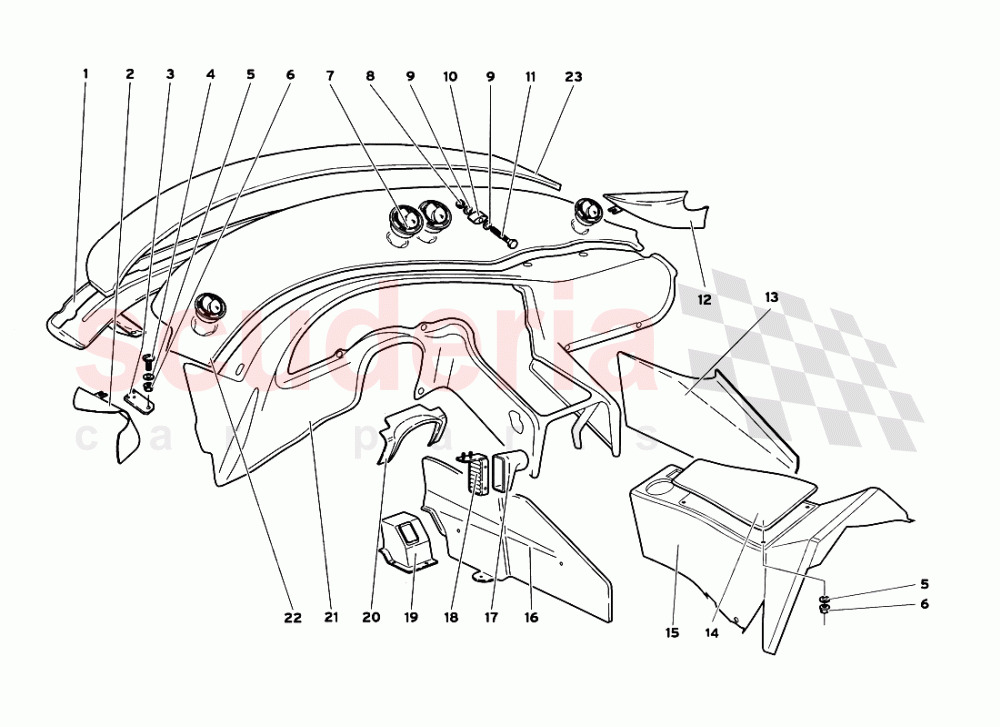

Lamborghini Diablo GT (1999-2000) - Passenger Compartment Interior Panels Without Air Bag

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414019	CONVEYOR	9414019 CONVEYOR CONVOGLIATORE	-	1	Enquire
002	9414338	LEFT PANEL	9414338 LEFT PANEL PANNELLO SX	-	1	Enquire
003	9414136	PLATE	9414136 PLATE PIASTRINA	-	2	Enquire
004	9421547	SCREW	9421547 SCREW VITE	-	2	Enquire
005	WHT002961	WASHER	WHT002961 WASHER RONDELLA	-	6	Enquire
006	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	6	Enquire
007	9914500	AIR VENT	9914500 AIR VENT BOCCHETTONE	-	4	Enquire
008	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING DADO	-	2	Enquire
009	8400606	WASHER	8400606 WASHER RONDELLA	-	4	Enquire
010	9414129	SPACER	9414129 SPACER DISTANZIALE	-	2	Enquire
011	8100636	SCREW	8100636 SCREW VITE	-	2	Enquire
012	9414337	RIGHT PANEL	9414337 RIGHT PANEL PANNELLO DX	-	1	Enquire
013	69005331	CONS. R. SIDE PANEL	69005331 CONS. R. SIDE PANEL FIANCHETTO DX CONSOLLE	-	1	Enquire
014	78005149	PANEL ON TUNNEL	78005149 PANEL ON TUNNEL PANNELLO COPRITUNNEL	-	1	Enquire
015	78004669	TUNNEL COVERING	78004669 TUNNEL COVERING RIVESTIMENTO TUNNEL	-	1	Enquire
016	9414336	PANEL	9414336 PANEL FIANCHETTO SX CONSOLLE	-	1	Enquire
017	9458356	UNION	9458356 UNION BOCCHETTONE	-	1	Enquire
018	9958402	GRILLE	9958402 GRILLE GRIGLIA	-	1	Enquire
019	9458364	CASE	9458364 CASE SCATOLA	-	1	Enquire
020	9414321	COVERING	9414321 COVERING RIVESTIMENTO	-	1	Enquire
021	69004795	PANEL	69004795 PANEL CRUSCOTTO	-	1	Enquire
022	69004799	UPPER COVERING	69004799 UPPER COVERING PARTE SUP. PLANCIA	-	1	Enquire
023	9414345	BEND	9414345 BEND CURVANO	-	1	Enquire
