Three-Point Seat Belts of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

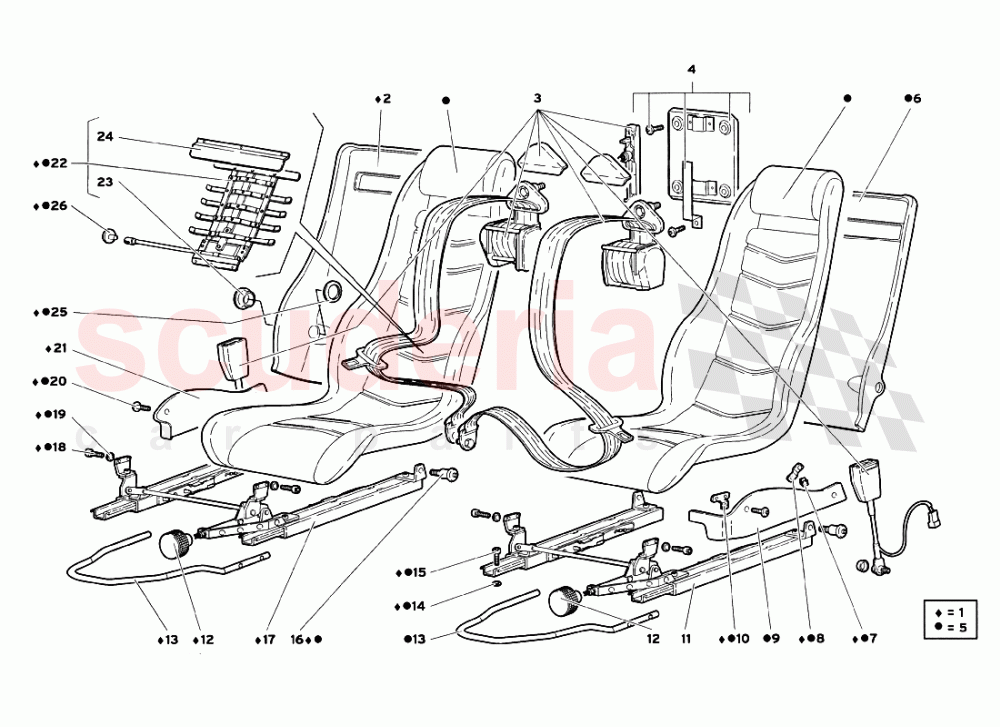

Lamborghini Diablo GT (1999-2000) - Three-Point Seat Belts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	75005133	RIGHT SEAT	75005133 RIGHT SEAT SEDILE DX	-	1	Enquire
002	9435112	R. REAR PANEL SEAT	9435112 R. REAR PANEL SEAT (? -These Parts Are Valid For The R.H Seat) PANNELLO RETROSCHIENALE DX	$228.89	1
003	97001596	SEATS BELTS	97001596 SEATS BELTS CINTURA Dl SICUREZZA A 3 PUNTI	$467.55	1
004	9490324	SUPPORT - SUPPORTO	9490324 SUPPORT - SUPPORTO O	$67.23	1
005	75005135	LEFT SEAT	75005135 LEFT SEAT SEDILE SX	-	1	Enquire
006	9435113	L. REAR PANEL SEAT	9435113 L. REAR PANEL SEAT (? -These Parts Are Valid For The L.H Seat) PANNELLO RETROSCHIENALE SX	$228.89	1
007	8220503	CLIP	8220503 CLIP (??These Parts Are Valid For Both Seats) MOLLETTA	$10.49 MSRP: ~~10.90~~ (3.8% off)	4
008	9435261	BRACKET	9435261 BRACKET (??These Parts Are Valid For Both Seats) STAFFA	$6.70 MSRP: ~~6.85~~ (2.2% off)	2
009	9435332	RIGHT SIDE PANEL	9435332 RIGHT SIDE PANEL (? = Left Seat) PANNELLO LATERALE SX	$76.07	1
010	9435263	LEFT BRACKET	9435263 LEFT BRACKET (??These Parts Are Valid For Both Seats) STAFFA SX	$6.70 MSRP: ~~6.85~~ (2.2% off)	1
010	9435262	RIGHT BRACKET	9435262 RIGHT BRACKET STAFFA DX	$6.70 MSRP: ~~6.85~~ (2.2% off)	1
011	9435019	LEFT SEAT GUIDE	9435019 LEFT SEAT GUIDE GUIDA SEDILE SX	$1,019.84	1
012	9435264	KNOB	9435264 KNOB POMELLO	$6.52 MSRP: ~~6.60~~ (1.2% off)	2
013	9435207	LEVER	9435207 LEVER (? -These Parts Are Valid For The L.H Seat) LEVA SEDILE	-	2	Enquire
014	9435257	SPACER	9435257 SPACER (??These Parts Are Valid For Both Seats) DISTANZIALE	$14.52	8
015	8700847	SCREW	8700847 SCREW (??These Parts Are Valid For Both Seats) VITE	$1.86 MSRP: ~~7.06~~ (73.7% off)	8
016	9435232	PIN	9435232 PIN (??These Parts Are Valid For Both Seats) PERNO	$31.32 MSRP: ~~32.70~~ (4.2% off)	4
017	9435018	RIGHT SEAT GUIDE	9435018 RIGHT SEAT GUIDE (? -These Parts Are Valid For The R.H Seat) GUIDA SEDILE DX	$1,019.84	1
018	8700670	SCREW	8700670 SCREW (??These Parts Are Valid For Both Seats) VITE	$0.28 MSRP: ~~7.35~~ (96.2% off)	8
019	8410601	WASHER	8410601 WASHER (??These Parts Are Valid For Both Seats) RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	8
020	8700544	SCREW	8700544 SCREW (??These Parts Are Valid For Both Seats) VITE	$1.68	4
021	9435331	RIGHT SIDE PANEL	9435331 RIGHT SIDE PANEL (? -These Parts Are Valid For The R.H Seat) PANNELLO LATERALE DX	$76.07	1
022	9435031	BACK-REST ADJU.-R.	9435031 BACK-REST ADJU.-R. (??These Parts Are Valid For Both Seats) REGOLATORE LOMBARE DX	$378.42 MSRP: ~~395.00~~ (4.2% off)	1
022	9435032	BACK-REST ADJU.-L.	9435032 BACK-REST ADJU.-L. REGOLATORE LOMBARE SX	$375.92 MSRP: ~~392.00~~ (4.1% off)	1
023	9435119	BUSHING	9435119 BUSHING BOCCOLA	$81.63	2
024	9435118	ANGLE PIECE	9435118 ANGLE PIECE ANGOLARE	$32.46 MSRP: ~~33.85~~ (4.1% off)	2
025	9435120	RING	9435120 RING (??These Parts Are Valid For Both Seats) ANELLO	$11.17 MSRP: ~~11.30~~ (1.2% off)	2
026	75005132	KNOB	75005132 KNOB (??These Parts Are Valid For Both Seats) POMELLO	$66.62 MSRP: ~~69.60~~ (4.3% off)	2
