Dashboard Instruments of Lamborghini Lamborghini Diablo GT (1999-2000)

View All

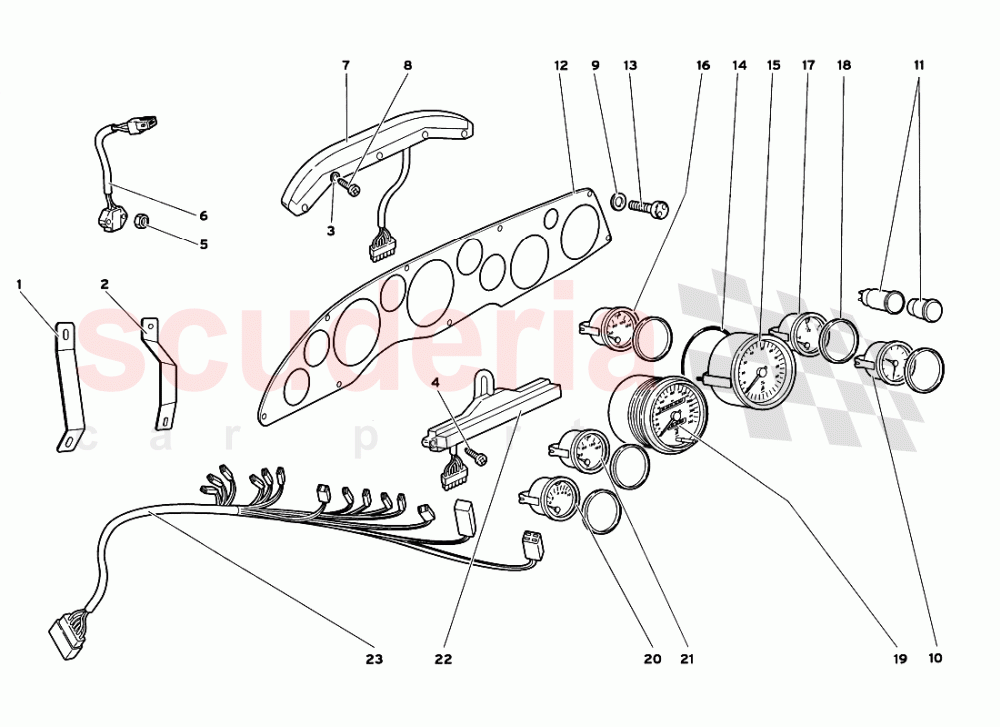

Lamborghini Diablo GT (1999-2000) - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	69003051	LEFT BRACKET	69003051 LEFT BRACKET STAFFA SX	-	1	Enquire
002	69003050	RIGHT BRACKET	69003050 RIGHT BRACKET STAFFA DX	-	1	Enquire
003	8400511	WASHER	8400511 WASHER RONDELLA	$0.33	5
004	N10247302	OVAL HEAD PANEL SCREW IN STOCK	N10247302 OVAL HEAD PANEL SCREW VITE IN STOCK	$0.36 MSRP: ~~7.35~~ (95.1% off)	2
005	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
006	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	$233.07	1
007	60004480	WARNING LIGHTS	60004480 WARNING LIGHTS GRUPPOSPIE	$532.25	1
008	8700444	SCREW IN STOCK	8700444 SCREW VITE IN STOCK	$0.13 MSRP: ~~7.37~~ (98.2% off)	5
009	8220306	SPRING	8220306 SPRING MOLLA	$3.54 MSRP: ~~3.65~~ (3% off)	9
010	60002603	CLOCK	60002603 CLOCK OROLOGIO	$635.23 MSRP: ~~665.00~~ (4.5% off)	1
011	5933188	CIGAR LIGHTER	5933188 CIGAR LIGHTER ACCENDISIGARI	$23.15	1
012	60004668	INSTRUMENT PANEL	60004668 INSTRUMENT PANEL PLANCIA PORTASTRUMENTI	-	1	Enquire
013	8700347	SCREW	8700347 SCREW VITE	$31.26	9
014	8609802	SEAL	8609802 SEAL ANELLO COMMA	$0.62 MSRP: ~~7.28~~ (91.5% off)	1
015	60002598	REVOLUTION COUNT.	60002598 REVOLUTION COUNT. CONTAGIRI	$879.65 MSRP: ~~919.00~~ (4.3% off)	1
016	60002601	WATER TEMP. GAUGE	60002601 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACOUA	$151.38 MSRP: ~~153.00~~ (1.1% off)	1
017	60002602	FUEL LEVEL GAUGE	60002602 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	$555.82 MSRP: ~~579.00~~ (4% off)	1
018	6030886	SPACER	6030886 SPACER DISTANZIALE	$55.02	5
019	60002597	SPEEDOMETER - KM	60002597 SPEEDOMETER - KM CONTACHILOMETRI	$3,148.25	1
020	60002599	OIL PRESSURE GAUGE	60002599 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	$151.38 MSRP: ~~153.00~~ (1.1% off)	1
021	60002600	OIL TEMPERA. GAUGE	60002600 OIL TEMPERA. GAUGE INDICATORE TEMPERATURA OLIO	$557.09 MSRP: ~~580.00~~ (3.9% off)	1
022	60002493	WARNING LIGHTS	60002493 WARNING LIGHTS GRUPPOSPIE	$421.83 MSRP: ~~427.00~~ (1.2% off)	1
023	61002126	ELECT CABLE	61002126 ELECT CABLE CABLAGGIO CRUSCOTTO	$245.04 MSRP: ~~256.00~~ (4.3% off)	1
