Fuel System (Valid for USA & Canada - March 2001) 2 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

Lamborghini Diablo VT 6.0 (2000-2001) - Fuel System (Valid for USA & Canada - March 2001) 2

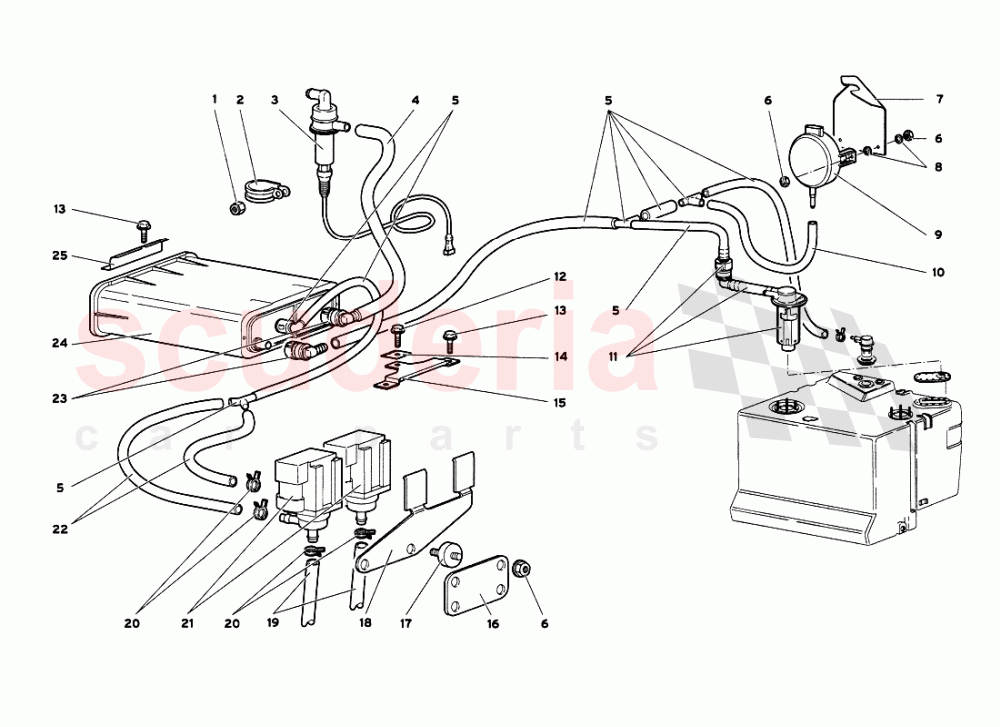

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING (Valid for USA & CANADA - March 2001)	$2.04	1
002	8832603	CLAMP	8832603 CLAMP (Valid for USA & CANADA - March 2001)	$11.31 MSRP: ~~11.70~~ (3.3% off)	1
003	400906283	SOLENOID VALVE	400906283 SOLENOID VALVE (Valid for USA & CANADA - March 2001)	$98.00	1
004	62005001	PIPE	62005001 PIPE (Valid for USA & CANADA - March 2001)	$32.95 MSRP: ~~33.30~~ (1.1% off)	1
005	62006821	PIPE KIT	62006821 PIPE KIT (Valid for USA & CANADA - March 2001)	-	1	Enquire
006	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT (Valid for USA & CANADA - March 2001)	$0.21	4
007	62007774	SUPPORT	62007774 SUPPORT (Valid for USA & CANADA - March 2001)	-	1	Enquire
008	WHT002961	WASHER	WHT002961 WASHER (Valid for USA & CANADA - March 2001)	$0.42	2
009	400906206	EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR	400906206 EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR (Valid for USA & CANADA - March 2001)	$2,634.41	1
010	6231411	PIPE	6231411 PIPE (Valid for USA & CANADA - March 2001)	$12.42 MSRP: ~~12.60~~ (1.4% off)	1
011	62007249	FLOATING VALVE	62007249 FLOATING VALVE (Valid for USA & CANADA - March 2001)	-	1	Enquire
012	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT (Valid for USA & CANADA - March 2001)	$0.95	1
013	N90319404	SCREW	N90319404 SCREW (Valid for USA & CANADA - March 2001)	$1.89	3
014	62006543	SUPPORT	62006543 SUPPORT (Valid for USA & CANADA - March 2001)	-	1	Enquire
015	62006533	BRACKET	62006533 BRACKET (Valid for USA & CANADA - March 2001)	-	1	Enquire
016	62007398	SUPPORT	62007398 SUPPORT (Valid for USA & CANADA - March 2001)	-	1	Enquire
017	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT (Valid for USA & CANADA - March 2001)	$14.65	2
018	62001379	BRACKET	62001379 BRACKET (Valid for USA & CANADA - March 2001)	$70.10	1
019	62001422	PIPE	62001422 PIPE (Valid for USA & CANADA - March 2001)	-	2	Enquire
020	8830128	CLAMP	8830128 CLAMP (Valid for USA & CANADA - March 2001)	$0.46	4
021	400906283	SOLENOID VALVE	400906283 SOLENOID VALVE (Valid for USA & CANADA - March 2001)	$98.00	2
022	62001420	PIPE	62001420 PIPE (Valid for USA & CANADA - March 2001)	$13.40	2
023	62007253	CONNECTOR	62007253 CONNECTOR (Valid for USA & CANADA - March 2001)	-	3	Enquire
024	62006532	VAPOUR FILTER	62006532 VAPOUR FILTER (Valid for USA & CANADA - March 2001)	$606.48	1
025	62006534	BRACKET	62006534 BRACKET (Valid for USA & CANADA - March 2001)	-	1	Enquire
