Lamborghini Diablo VT 6.0 (2000-2001) - Fuel System (Valid for USA & Canada - March 2001) 1

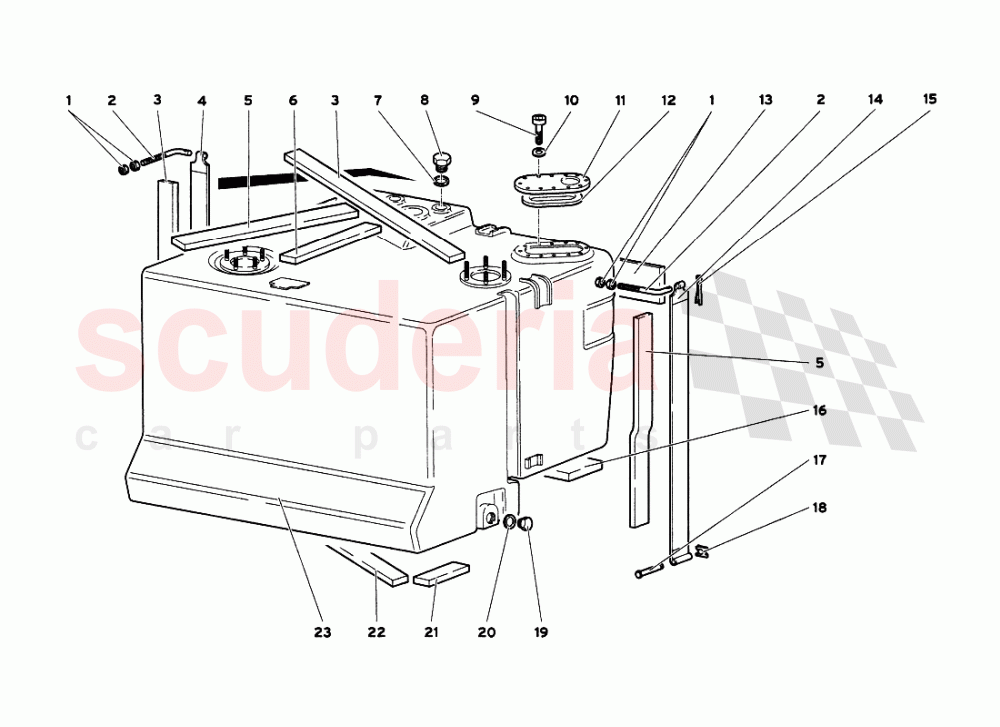

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT (Valid for USA & CANADA - March 2001) IN STOCK	$1.89	4
002	6226884	TIE ROD	6226884 TIE ROD (Valid for USA & CANADA - March 2001)	-	2	Enquire
003	410201644	PROTECTION	410201644 PROTECTION (Valid for USA & CANADA - March 2001)	$17.47	2
004	6237360	STRAP	6237360 STRAP (Valid for USA & CANADA - March 2001)	$77.54	1
005	6231704	GASKET	6231704 GASKET (Valid for USA & CANADA - March 2001)	$73.32	2
006	6237956	SHIELD	6237956 SHIELD (Valid for USA & CANADA - March 2001)	-	1	Enquire
007	N91122801	WASHER 18,5X24X1,5 IN STOCK	N91122801 WASHER 18,5X24X1,5 (Valid for USA & CANADA - March 2001) IN STOCK	$3.05 MSRP: ~~7.18~~ (57.5% off)	1
008	62005022	PLUG	62005022 PLUG (Valid for USA & CANADA - March 2001)	$12.17 MSRP: ~~12.70~~ (4.2% off)	1
009	8700614	SCREW	8700614 SCREW (Valid for USA & CANADA - March 2001)	$0.27	12
010	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for USA & CANADA - March 2001) IN STOCK	$0.28	12
011	62004954	FLANGE	62004954 FLANGE (Valid for USA & CANADA - March 2001)	$214.02 MSRP: ~~216.50~~ (1.1% off)	1
012	8609912	GASKET	8609912 GASKET (Valid for USA & CANADA - March 2001)	-	1	Enquire
013	6237368	SHIELD	6237368 SHIELD (Valid for USA & CANADA - March 2001)	$19.36	1
014	6229506	STRAP	6229506 STRAP (Valid for USA & CANADA - March 2001)	$39.13	1
015	8820304	SPLIT PIN	8820304 SPLIT PIN (Valid for USA & CANADA - March 2001)	$1.74 MSRP: ~~7.09~~ (75.5% off)	2
016	6231701	GASKET	6231701 GASKET (Valid for USA & CANADA - March 2001)	$58.63	2
017	6233763	JOURNAL	6233763 JOURNAL (Valid for USA & CANADA - March 2001)	$11.22	2
018	8580604	CLIP	8580604 CLIP (Valid for USA & CANADA - March 2001)	$2.26	2
019	8931203	PLUG	8931203 PLUG (Valid for USA & CANADA - March 2001)	$27.29	1
020	WHT003362	WASHER	WHT003362 WASHER (Valid for USA & CANADA - March 2001)	$1.37 MSRP: ~~7.17~~ (80.9% off)	1
021	6231706	GASKET	6231706 GASKET (Valid for USA & CANADA - March 2001)	$36.68	1
022	6231702	GASKET	6231702 GASKET (Valid for USA & CANADA - March 2001)	$4.90 MSRP: ~~5.00~~ (2% off)	1
023	62004960	FUEL TANK	62004960 FUEL TANK (Valid for USA & CANADA - March 2001)	$2,952.85	1
