Fuel System 2 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001)

View All

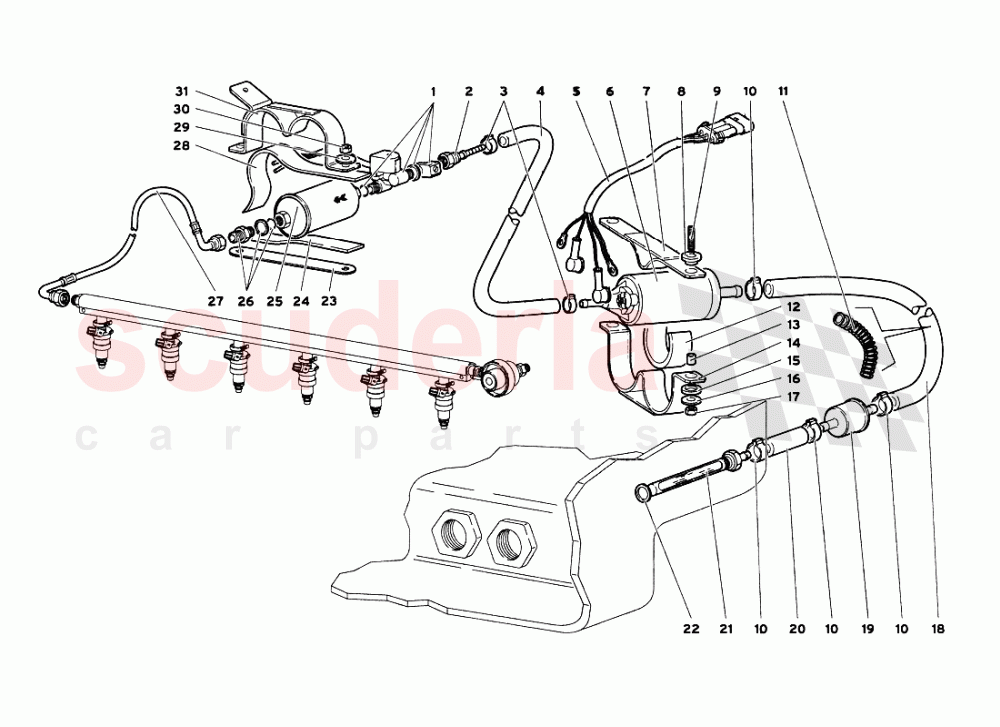

Lamborghini Diablo VT 6.0 (2000-2001) - Fuel System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	61006426	MED SOLENOID VALVE KIT	61006426 MED SOLENOID VALVE KIT	$602.99	2
002	6227630	CONNECTION	6227630 CONNECTION	$14.99	2
003	8831528	CLAMP	8831528 CLAMP	$9.27	4
004	6230218	PIPE	6230218 PIPE	$50.01	2
005	61008760	FUEL PUMP WIRING	61008760 FUEL PUMP WIRING	$42.76	1
006	2024398	FUEL PUMP	2024398 FUEL PUMP	$764.28	2
007	6229532	STRAP	6229532 STRAP	$109.32	1
008	1701495	RUBBER RING	1701495 RUBBER RING	$58.63	2
009	WHT003031	STUD BOLT	WHT003031 STUD BOLT	$9.61	2
010	400251189B	CLAMP	400251189B CLAMP	$10.80	8
011	62002430	SPRING	62002430 SPRING	-	2	Enquire
012	6226900	GASKET	6226900 GASKET	$26.79	2
013	1701592	DOWEL	1701592 DOWEL	$28.90	2
014	6229533	PLATE	6229533 PLATE	$60.93 MSRP: ~~63.80~~ (4.5% off)	1
015	WHT001189	PLASTIC WASHER	WHT001189 PLASTIC WASHER	$6.27	2
016	WHT001942	WASHER	WHT001942 WASHER	$3.30	2
017	N0111849	NUT	N0111849 NUT	$2.15 MSRP: ~~7.25~~ (70.3% off)	2
018	6230225	PIPE	6230225 PIPE	$22.45	2

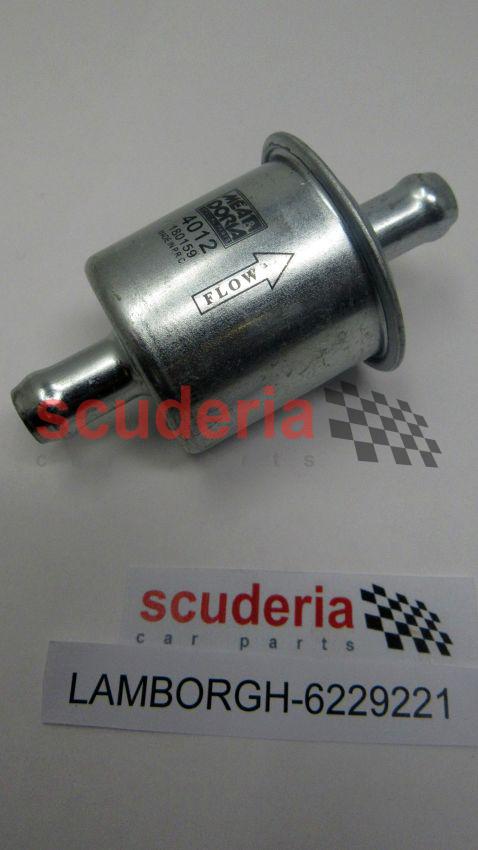

019	6229221	OIL FILTER	6229221 OIL FILTER	$115.46	2
020	6230226	PIPE	6230226 PIPE	$46.38	2
021	62001649	PIPE	62001649 PIPE	$600.51 MSRP: ~~626.00~~ (4.1% off)	2
022	WHT003048	WASHER 22 X 28 X 1.5	WHT003048 WASHER 22 X 28 X 1.5	$3.67	2
023	62007226	PLATE	62007226 PLATE	-	1	Enquire
024	410201196	GASKET	410201196 GASKET	$4.98	1

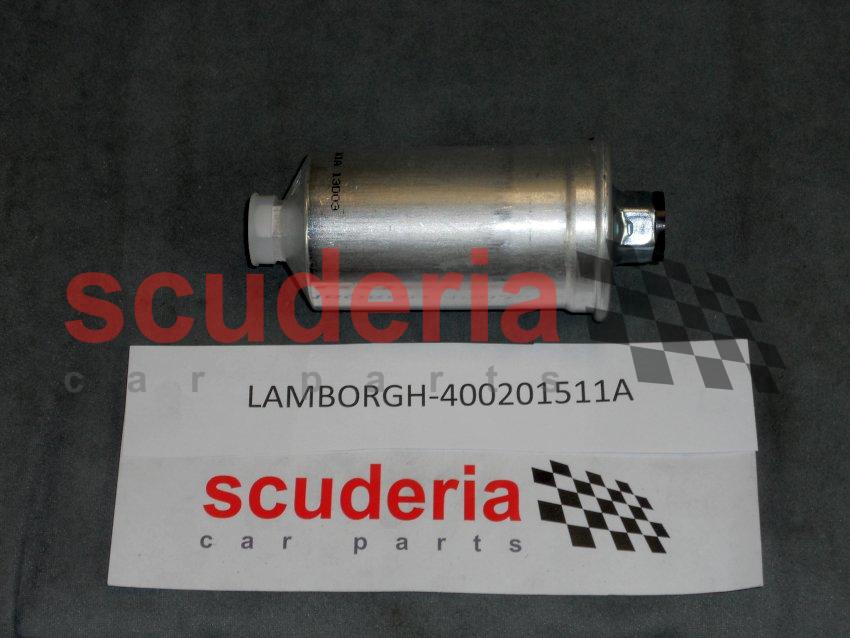

025	400201511A	Fuel Filter	400201511A Fuel Filter	$260.17	2
026	6230564	CONNECTION	6230564 CONNECTION	-	2	Enquire
027	6231554	PIPE	6231554 PIPE	$151.98	1
027	6231552	PIPE	6231552 PIPE	$259.13	1
028	6230214	STRAP	6230214 STRAP	-	1	Enquire
029	WHT002961	WASHER	WHT002961 WASHER	$0.42	2
030	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING	$2.04	2
031	62006493	CLAMP	62006493 CLAMP	-	1	Enquire
