Exhaust System 1

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Exhaust System 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

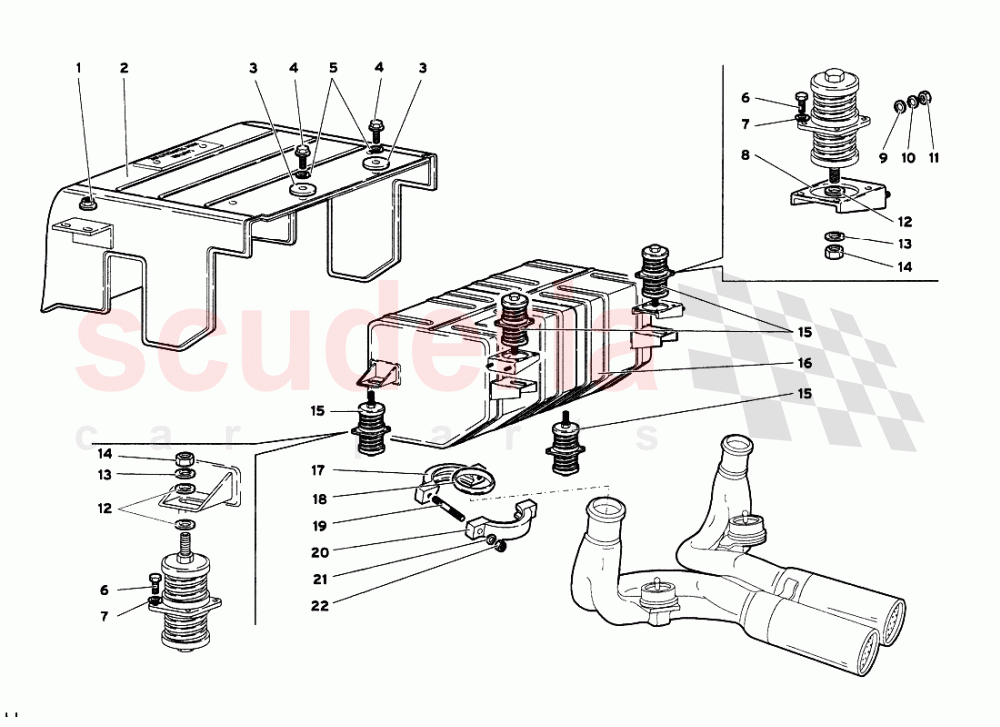

Exhaust System 1 of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.21 7
002 4435003
SHIELD 		$5,485.91 1
003 9444151
WASHER 		- 2 Enquire
004 N10158604
SCREW 		$26.83 2
005 N91115501
WASHER 		$1.25 (82.9% off) 2
006 N01020717
SCREW M5X12
IN STOCK 		$0.67 (90.8% off) 16
007 8410508
WASHER 		$0.04 (99.5% off) 16
008 4437428
SUPPORT - SUPPORTO 		$98.00 2
009 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.55 4
010 N0152785
WASHER
IN STOCK 		$0.40 4
011 N01100845
HEXAGON NUT
IN STOCK 		$1.89 4
012 8401006
WASHER 		$0.61 (91.6% off) 8
013 8451005
WASHER 		$0.16 (97.8% off) 4
014 N10155210
NUT 		$1.96 (72.9% off) 4
015 4432031
SHOCK ABSORBER 		- 4 Enquire
016 4430979
SILENCER/MUFFLER 		$6,966.48 (4.4% off) 1
017 4425084
HALF RING 		$503.73 2
018 4424070
BI-CONE RING 		$167.21 2
019 N0444416
STUD BOLT
IN STOCK 		$3.45 (51% off) 4
020 4425084
HALF RING 		$503.73 2
021 8440806
WASHER
use : WHT001185 		$0.27 (96.3% off) 4
022 N02214621
HEXAGON NUT M8 SELF-LOCKING
IN STOCK 		$90.94 4
