Lamborghini Diablo VT 6.0 (2000-2001) - Exhaust System (My 2000) 2

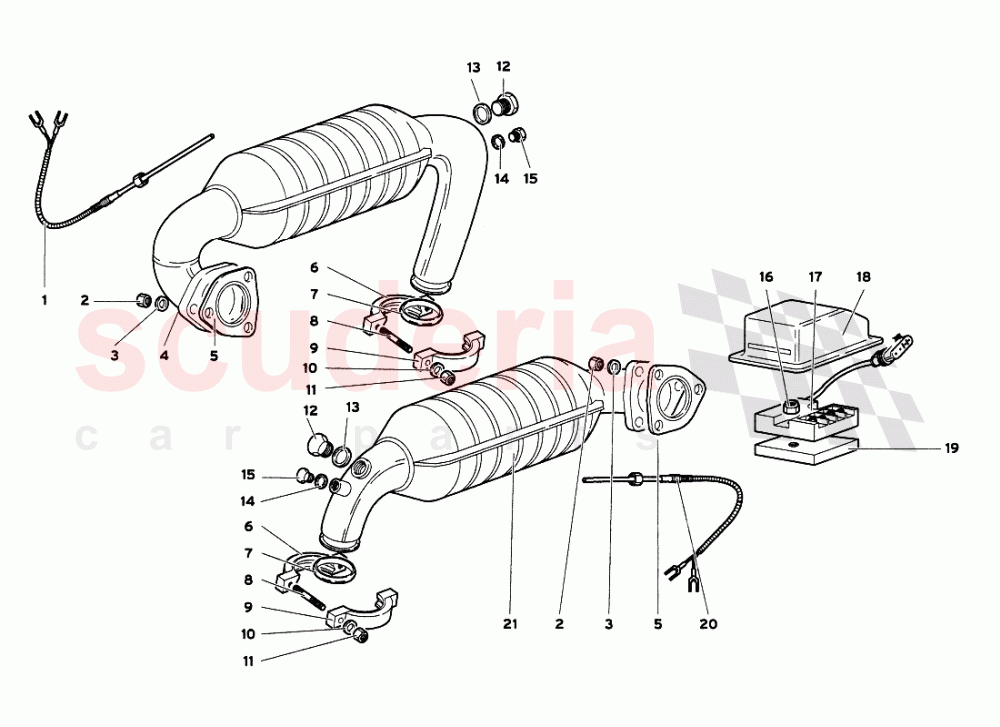

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	R1470005	THERMOCOUPLE KIT	R1470005 THERMOCOUPLE KIT (x2 heat probs & x1 ECU)	-	1	Enquire
002	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	6	Enquire
003	8440806	WASHER	8440806 WASHER use : WHT001185	-	6	Enquire
004	44003565	RIGHT CATAL. CON.	44003565 RIGHT CATAL. CON. (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	1	Enquire
005	4432145	GASKET	4432145 GASKET (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
006	4425084	HALF RING	4425084 HALF RING (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
007	4424070	BI-CONE RING	4424070 BI-CONE RING (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
008	N0444416	STUD BOLT	N0444416 STUD BOLT (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	4	Enquire
009	4425084	HALF RING	4425084 HALF RING (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
010	8440806	WASHER	8440806 WASHER use : WHT001185	-	4	Enquire
011	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	4	Enquire
012	4431147	PLUG	4431147 PLUG (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
013	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Included in the engine gasket kit) (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
014	8401008	WASHER	8401008 WASHER (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
015	44006437	PLUG	44006437 PLUG (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
016	WHT002959	CLAMPING NUT	WHT002959 CLAMPING NUT (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	2	Enquire
017	6033680	ELECTR. CONT. UNIT	6033680 ELECTR. CONT. UNIT (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	1	Enquire
018	5934453	SHIELD	5934453 SHIELD (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	1	Enquire
019	6035446	SHIM	6035446 SHIM (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	1	Enquire
020	6033687	THERMOCOUPLE	6033687 THERMOCOUPLE (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	1	Enquire
021	44003566	LEFT CATALYTIC CON.	44003566 LEFT CATALYTIC CON. (Valid form engine No. 2411 for Diablo 6.0 MY 2000)	-	1	Enquire
