Lamborghini Diablo VT 6.0 (2000-2001) - Exhaust System (My 2001) 1

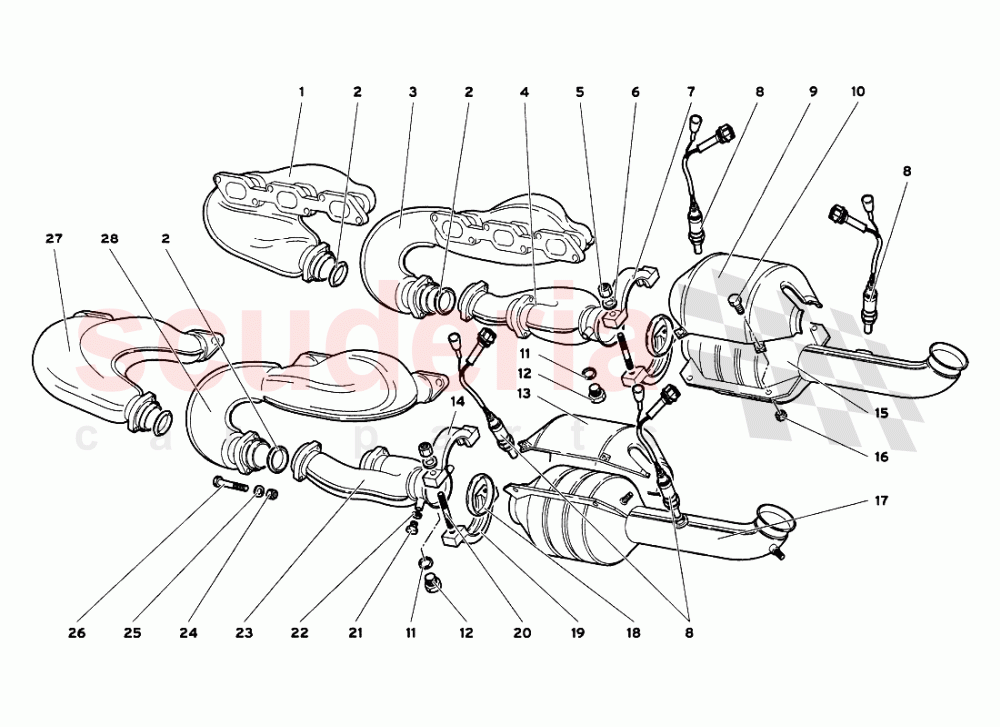

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4435456CB	RH FRONT EXHAUST MANIFOLD	4435456CB RH FRONT EXHAUST MANIFOLD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
002	4435972	BI-CONE RING	4435972 BI-CONE RING (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	4	Enquire
003	4435457CB	RH REAR EXHAUST MANIFOLD	4435457CB RH REAR EXHAUST MANIFOLD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
004	44001748	EXHAUST MANIFOLD	44001748 EXHAUST MANIFOLD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
005	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	4	Enquire
006	8440806	WASHER	8440806 WASHER use : WHT001185	-	4	Enquire
007	4425084	HALF RING	4425084 HALF RING (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
008	R1470226	OXIGEN SENSOR	R1470226 OXIGEN SENSOR	-	4	Enquire
009	4435463	SHIELD	4435463 SHIELD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
010	N10648502	SCREW M5X10	N10648502 SCREW M5X10 (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	8	Enquire
011	N91122801	WASHER 18,5X24X1,5	N91122801 WASHER 18,5X24X1,5 (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
012	8931808	PLUG	8931808 PLUG (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
013	4435971	SHIELD	4435971 SHIELD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
014	4425084	HALF RING	4425084 HALF RING (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
015	44003569	RIGHT CAT. CONVE.	44003569 RIGHT CAT. CONVE. (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
016	8200513	NUT	8200513 NUT (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	8	Enquire
017	44003570	LEFT CAT. CONVE.	44003570 LEFT CAT. CONVE. (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
018	4424070	BI-CONE RING	4424070 BI-CONE RING (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
019	4425084	HALF RING	4425084 HALF RING (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
020	N0444416	STUD BOLT	N0444416 STUD BOLT (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	4	Enquire
021	44006437	PLUG	44006437 PLUG (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
022	8401008	WASHER	8401008 WASHER (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	2	Enquire
023	44001747	EXHAUST MANIFOLD	44001747 EXHAUST MANIFOLD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
024	N02214621	HEXAGON NUT M8 SELF-LOCKING	N02214621 HEXAGON NUT M8 SELF-LOCKING (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	8	Enquire
025	8440806	WASHER	8440806 WASHER use : WHT001185	-	8	Enquire
026	8100870	SCREW	8100870 SCREW (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	8	Enquire
027	4435458CB	LH FRONT EXHAUST MANIFOLD	4435458CB LH FRONT EXHAUST MANIFOLD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
028	4435459CB	LH REAR EXHAUST MANIFOLD	4435459CB LH REAR EXHAUST MANIFOLD (Valid from engine No. 0002 for Diablo 6.0 MY 2001 (EUROPE, USA & CANADA)	-	1	Enquire
