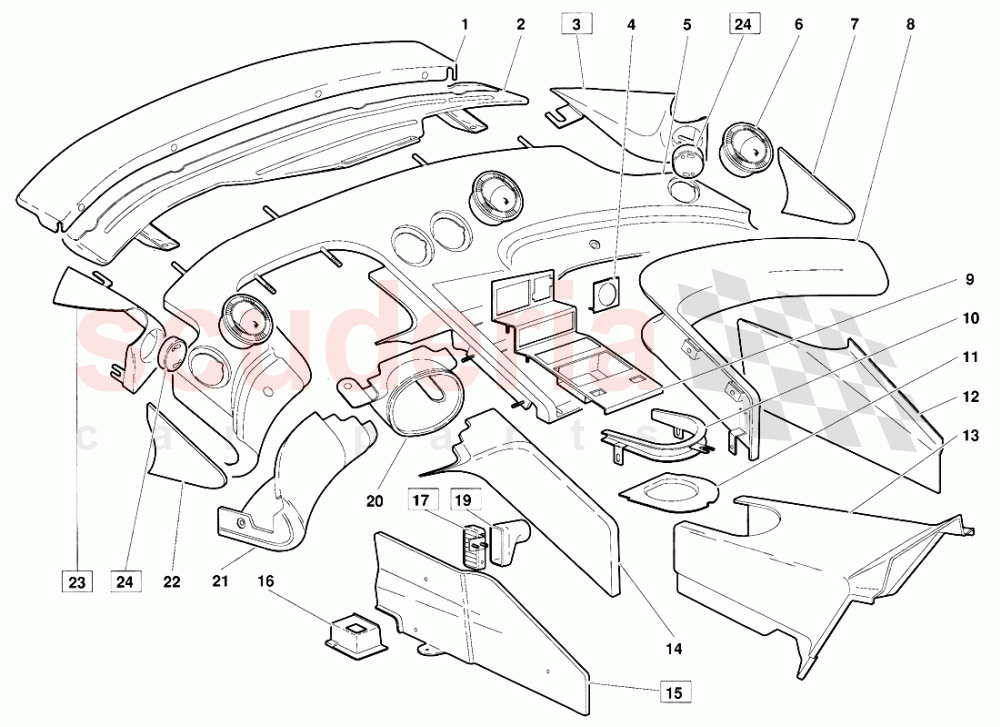

Lamborghini Diablo (1990-1998) - Passenger Compartment Trim (Valid for June 1992 Version) 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414305	PANEL	9414305 PANEL (Valid for June 1992 version) PANNELLO SOTTO PARABREZZA	-	1	Enquire
002	9414019	CONVEYOR	9414019 CONVEYOR (Valid for June 1992 version) CONVOGLIATORE ARIA PARABREZZA	-	1	Enquire
003	9414310	PANEL	9414310 PANEL (Valid for June 1992 version) PANNELLO TWEETER DX (fino 12774)	-	1	Enquire
003	9414333	RIGHT PANEL	9414333 RIGHT PANEL (Valid for June 1992 version) PANNELLO TWEETER DX (dalla 12775)	-	1	Enquire
004	9414103	FRAME	9414103 FRAME (Valid for June 1992 version) O OROLOGIO VDO	-	1	Enquire
005	9414100	DASHBOARD PANEL	9414100 DASHBOARD PANEL (Valid for June 1992 version) CRUSCOTTO	-	1	Enquire
006	9414507	air vent	9414507 air vent (Valid for June 1992 version) BOCCHETTONE USCITA ARIA	-	4	Enquire
007	9414306	RIGHT SIDE PANEL	9414306 RIGHT SIDE PANEL (Valid for June 1992 version) ANNELLO CHIUSURA LATERALE	-	1	Enquire
008	9414302	PANEL	9414302 PANEL (Valid for June 1992 version) PANNELLO FRONTALE	-	1	Enquire
009	9414102	PANEL	9414102 PANEL (Valid for June 1992 version) PLANCIA CENTRALE	-	1	Enquire
010	9458424	FRAME	9458424 FRAME (Valid for June 1992 version) CORNICE	-	1	Enquire
011	9458423	PLATE	9458423 PLATE (Valid for June 1992 version) PIASTRA	-	1	Enquire
012	9414303	PANEL	9414303 PANEL (Valid for June 1992 version) FIANCHETTO	-	1	Enquire
013	9458401	TUNNEL COVERING	9458401 TUNNEL COVERING (Valid for June 1992 version)	-	1	Enquire
014	9414300	PANEL	9414300 PANEL (Valid for June 1992 version) FIANCHETTO SINISTRO	-	1	Enquire
015	9414331	SIDE PANEL	9414331 SIDE PANEL (Valid for June 1992 version) FIANCHETTO (dalla 12406)	-	1	Enquire
015	9414331	SIDE PANEL	9414331 SIDE PANEL (Valid for June 1992 version) FIANCHETTO (fino 12405)	-	1	Enquire
016	9458316	CASE	9458316 CASE (Valid for June 1992 version) SCATOLA PEDALE ACCELERATORE	-	1	Enquire
017	9458361	GRILLE	9458361 GRILLE (Valid for June 1992 version) GRIGLIA (dalla 12406)	-	1	Enquire
017	9458361	GRILLE	9458361 GRILLE (Valid for June 1992 version) GRIGLIA (fino 12405)	-	1	Enquire
018	9458335	PANEL	9458335 PANEL (Valid for June 1992 version) PANNELLO (particolare eliminato)	-	1	Enquire
019	9458356	UNION	9458356 UNION (Valid for June 1992 version) BOCCHETTONE (dalla 12406)	-	1	Enquire
019	9458356	UNION	9458356 UNION (Valid for June 1992 version) BOCCHETTONE (fino 12405)	-	1	Enquire
020	9414321	COVERING	9414321 COVERING (Valid for June 1992 version) RIVESTIMENTO PIANTONE	-	1	Enquire
021	9414301	PANEL	9414301 PANEL (Valid for June 1992 version) PANNELLO	-	1	Enquire
022	9414307	LEFT SIDE PANEL	9414307 LEFT SIDE PANEL (Valid for June 1992 version) PANNELLO CHIUSURA LATERALE	-	1	Enquire
023	9414334	LEFT PANEL	9414334 LEFT PANEL (Valid for June 1992 version) PANNELLO TWEETER SX (dalla 12775)	-	1	Enquire
023	9414311	PANEL	9414311 PANEL (Valid for June 1992 version) PANNELLO TWEETER SX (fino 12774)	-	1	Enquire
024	9414335	TWEETER SUPPORT	9414335 TWEETER SUPPORT (Valid for June 1992 version) SUPPORTO TWEETER (dalla 12775)	-	2	Enquire
