Lamborghini Diablo (1990-1998) - Dashboard Instruments

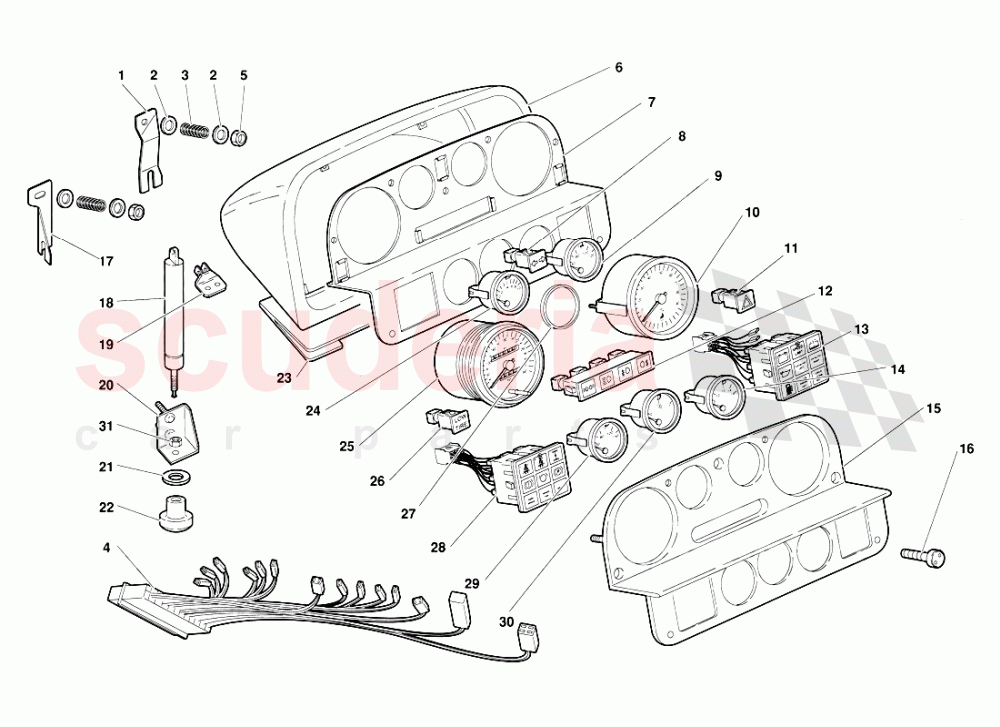

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414414	BRACKET	9414414 BRACKET STAFFA DESTRA	$44.25	1
002	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	4
003	9414416	SPRING	9414416 SPRING MOLLA	$18.74 MSRP: ~~19.60~~ (4.4% off)	2
004	6130623	ELECT CABLE	6130623 ELECT CABLE CABLAGGIO	$272.95	1
005	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING DADO	$1.96 MSRP: ~~7.29~~ (73.1% off)	2
006	9414417	DASHBOARD	9414417 DASHBOARD CRUSCOTTO	$683.63	1
007	9414418	INSTRUMENT PANEL	9414418 INSTRUMENT PANEL PLANCIA PORTASTRUMENTI	-	1	Enquire
008	6030265	TURN SIGNAL INDIC.	6030265 TURN SIGNAL INDIC. SPIA INDICATOR! Dl DIREZIONE	$45.21	1
009	6029660	WATER TEMP. GAUGE	6029660 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACQUA	$400.75	1
010	6029656	REVOLUTION COUNT.	6029656 REVOLUTION COUNT. CONTAGIRI	$1,594.30	1
011	6030267	HAZARD WARN. LIGHT	6030267 HAZARD WARN. LIGHT SPIA HAZARD	$45.21	1
012	6030268	WARNING LIGHTS	6030268 WARNING LIGHTS GRUPPOSPIE	$204.73	1
013	6030264	WARNING LIGHTS	6030264 WARNING LIGHTS GRUPPO SPIE DESTRO	$574.46	1
014	6029661	VOLTMETER	6029661 VOLTMETER VOLTMETRO	$189.83	1
015	9414419	PANEL	9414419 PANEL PLANCIA	$7,375.91	1
016	9414420	SCREW	9414420 SCREW VITE	$32.82	4
017	9414415	BRACKET	9414415 BRACKET STAFFA SINISTRA	$69.12	1
018	9414421	SHOCK ABSORBER	9414421 SHOCK ABSORBER AMMORTIZZATORE	$456.58	1
019	9414411	SUPPORT - SUPPORTOSUPERIORE	9414411 SUPPORT - SUPPORTOSUPERIORE OSUPERIORE	$92.19	1
020	9414412	SUPPORT - SUPPORTO INFERIORE	9414412 SUPPORT - SUPPORTO INFERIORE O INFERIORE	$60.74	1
021	8400825	WASHER	8400825 WASHER RONDELLA	$0.36	1
022	9414425	KNOB	9414425 KNOB POMELLO	$70.85	1
023	9414408	FLEX PAD	9414408 FLEX PAD SPESSORE IN GOMMA	$366.00	1
024	6029658	OIL PRESSURE GAUGE	6029658 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	$400.75	1
025	6029655	SPEEDOMETER-KM	6029655 SPEEDOMETER-KM CONTACHILOMETRI	$1,317.21	1
026	6030266	LOW TIRES WARN L.	6030266 LOW TIRES WARN L. SPIA LOW TIRES	$17.70	1
027	6030886	SPACER	6030886 SPACER ANELLO	$55.02	5
028	6030575	WARNING LIGHTS	6030575 WARNING LIGHTS GRUPPO SPIE SINISTRO	$576.93	1
029	6029659	OIL TEMPERATURE GA.	6029659 OIL TEMPERATURE GA. INDICATORE TEMPERATURA OLIO	$631.53	1
030	6029657	FUEL LEVEL GAUGE	6029657 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	$269.25	1
031	8200815	NUT	8200815 NUT DADO	$0.55 MSRP: ~~7.31~~ (92.5% off)	1
