Lamborghini Diablo (1990-1998) - Seats and Safety Belts (Valid for June 1992 Version)

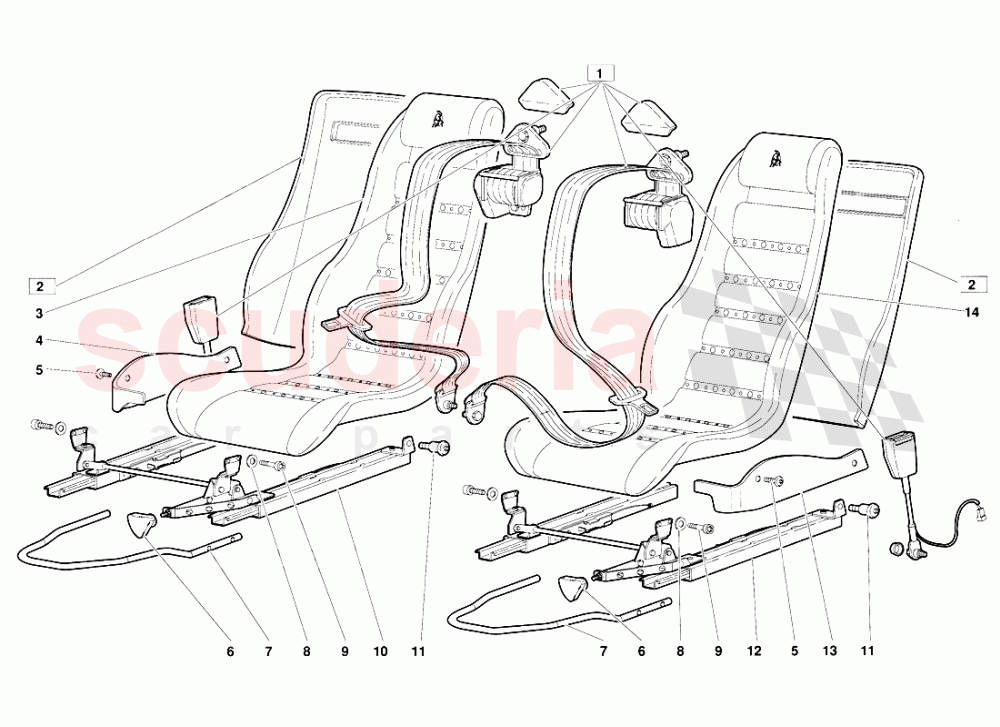

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9490300	SEATS BELTS	9490300 SEATS BELTS (Valid for June 1992 version) ASSIEME CINTURE Dl SICUREZZA (particolare intercambiabile sostltuisce il 009490310)	-	1	Enquire
002	9435231	REAR PANEL SEAT	9435231 REAR PANEL SEAT (Valid for June 1992 version) PANNELLO RETROSCHIENALE SEDILE (variata quantita)	-	2	Enquire
003	9435004	RIGHT SEAT	9435004 RIGHT SEAT (Valid for June 1992 version) SEDILE DESTRO	-	1	Enquire
004	9435312	RIGHT SIDE PANEL	9435312 RIGHT SIDE PANEL (Valid for June 1992 version) PANNELLO LATERALE SEDILE DX	-	1	Enquire
005	8700543	SCREW	8700543 SCREW (Valid for June 1992 version) VITE	-	4	Enquire
006	7035114	KNOB	7035114 KNOB (Valid for June 1992 version) POMELLO	-	2	Enquire
007	9435207	LEVER	9435207 LEVER (Valid for June 1992 version) LEVA	-	2	Enquire
008	8410601	WASHER	8410601 WASHER (Valid for June 1992 version) RONDELLA	-	8	Enquire
009	8700617	SCREW	8700617 SCREW (Valid for June 1992 version) VITE	-	8	Enquire
010	9435002	RIGHT SEAT GUIDE	9435002 RIGHT SEAT GUIDE (Valid for June 1992 version) GUIDA MOBILE SEDILE DX	-	1	Enquire
011	9435232	PIN	9435232 PIN (Valid for June 1992 version) VITE A PERNO	-	4	Enquire
012	9435003	LEFT SEAT GUIDE	9435003 LEFT SEAT GUIDE (Valid for June 1992 version) GUIDA MOBILE SEDILE SX	-	1	Enquire
013	9435313	LEFT SIDE PANEL	9435313 LEFT SIDE PANEL (Valid for June 1992 version) PANNELLO LATERALE SEDILE SX	-	1	Enquire
014	9435005	LEFT SEAT	9435005 LEFT SEAT (Valid for June 1992 version) SEDILE SINISTRO	-	1	Enquire
015	9435233	PANEL	9435233 PANEL (Valid for June 1992 version) PANNELLO RETROSCHIENALE SX (particolare sostituito dal 009435231)	-	1	Enquire
