Lamborghini Aventador LP740 S - Activated Carbon Filter System 2

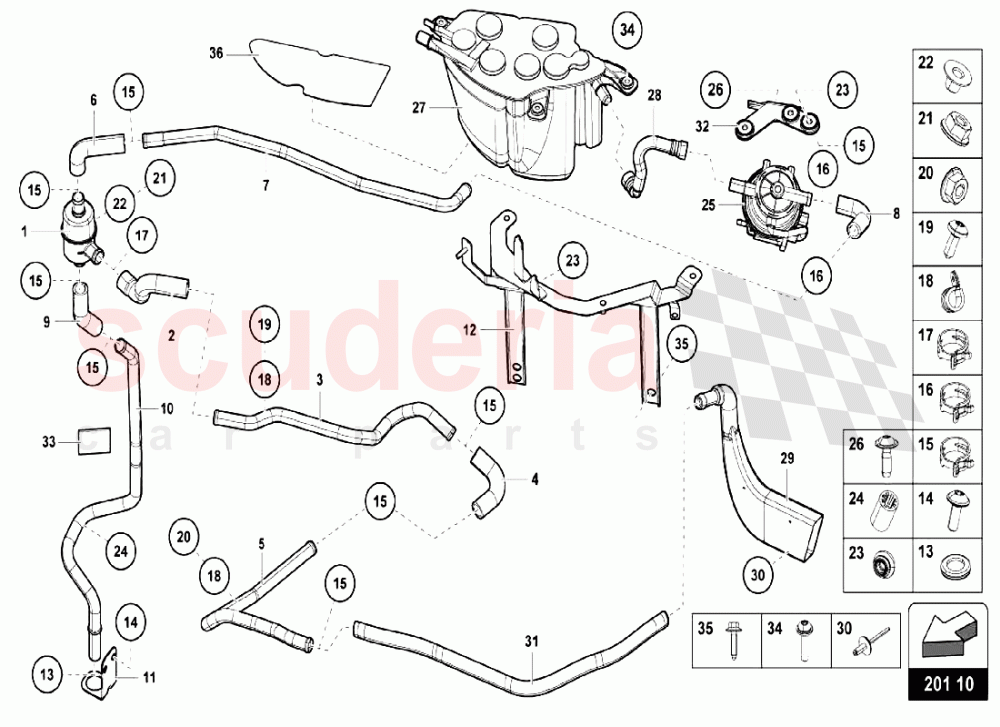

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4S0201752	KOMBI VALVE	4S0201752 KOMBI VALVE	-	1	Enquire
002	470201352A	PIPE	470201352A PIPE	-	1	Enquire
003	470201728	Pipe	470201728 Pipe	-	1	Enquire
004	470201384	Pipe	470201384 Pipe	-	1	Enquire
005	470201730	Pipe	470201730 Pipe	-	1	Enquire
006	470201908A	PIPE	470201908A PIPE	-	1	Enquire
007	470131491C	BREATHER LINE	470131491C BREATHER LINE	-	1	Enquire
008	470201153C	PIPE	470201153C PIPE	-	1	Enquire
009	470201817	PIPE	470201817 PIPE	-	1	Enquire
010	470201411A	Pipe	470201411A Pipe	-	1	Enquire
011	470201938	MOUNTING BAR	470201938 MOUNTING BAR	-	1	Enquire
012	470201898B	Bracket	470201898B Bracket	-	1	Enquire
013	400821190	GROMMET	400821190 GROMMET	-	1	Enquire
014	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
015	4B0422379A	SPRING BAND CLAMP	4B0422379A SPRING BAND CLAMP	-	15	Enquire
016	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP	-	2	Enquire
017	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP	-	1	Enquire
018	N0206405	CLAMP	N0206405 CLAMP	-	2	Enquire
019	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT	-	2	Enquire
020	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	5	Enquire
021	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT	-	1	Enquire
022	8Z0129734	BUSH	8Z0129734 BUSH	-	4	Enquire
023	8Z0129669A	GROMMET	8Z0129669A GROMMET	-	5	Enquire
024	3L121722	Spacer Ring (19x30x30)	3L121722 Spacer Ring (19x30x30)	-	1	Enquire
025	3C0906271A	DIAGNOSIS PUMP FOR FUEL SYSTEM	3C0906271A DIAGNOSIS PUMP FOR FUEL SYSTEM	-	1	Enquire
026	N90829802	HEXAGON SOCKET HEAD PANEL BOLT	N90829802 HEXAGON SOCKET HEAD PANEL BOLT	-	3	Enquire
027	3D0201801F	VAPOR FILTER	3D0201801F VAPOR FILTER	-	1	Enquire
028	470906272	VENT HOSE	470906272 VENT HOSE	-	1	Enquire
029	470117157D	Drain Nozzle	470117157D Drain Nozzle	-	1	Enquire
030	N90248401	POP RIVET	N90248401 POP RIVET	-	1	Enquire
031	470133739	Breather Line	470133739 Breather Line	-	1	Enquire
032	470201369	BRACKET	470201369 BRACKET	-	1	Enquire
033	410863939	DAMPING ELEMENT	410863939 DAMPING ELEMENT	-	1	Enquire
