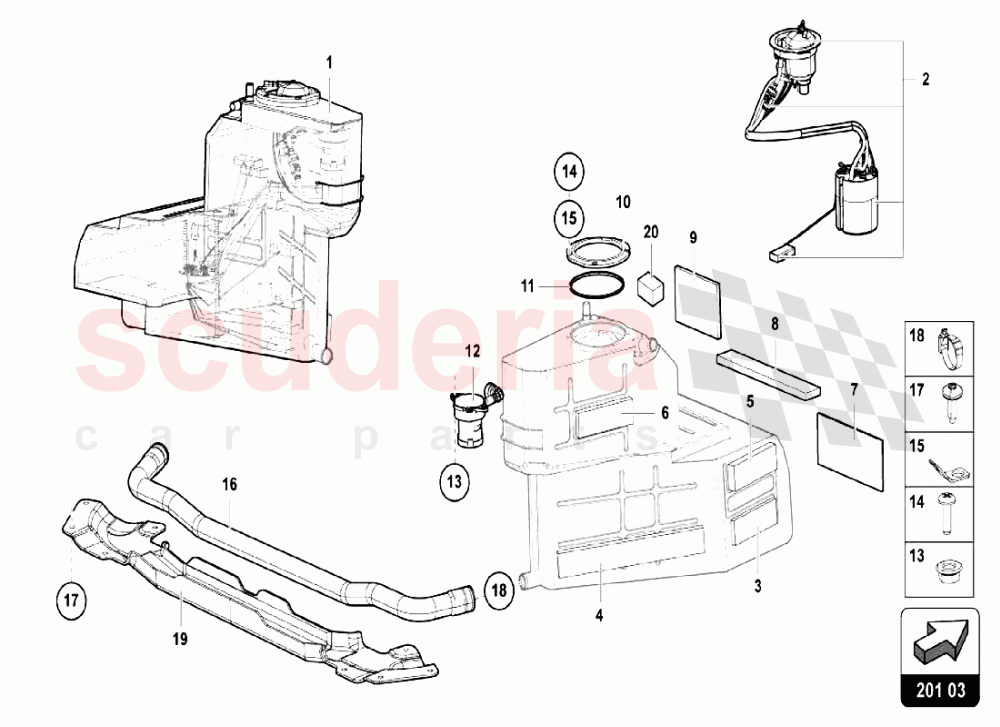

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470201022H	Fuel Tank (right)	470201022H Fuel Tank (right)	-	1	Enquire
002	470906091C	FUEL PUMP	470906091C FUEL PUMP	-	1	Enquire
003	470201615D	PROTECTION	470201615D PROTECTION	-	1	Enquire
004	470201615E	PROTECTION	470201615E PROTECTION	-	1	Enquire
005	470201615C	PROTECTION	470201615C PROTECTION	-	1	Enquire
006	470201615G	PROTECTION	470201615G PROTECTION	-	1	Enquire
007	470201615B	PROTECTION	470201615B PROTECTION	-	1	Enquire
008	470201615A	PROTECTION	470201615A PROTECTION	-	1	Enquire
009	470201615K	PROTECTION	470201615K PROTECTION	-	1	Enquire
010	470201099	LOCATING FLANGE	470201099 LOCATING FLANGE	-	1	Enquire
011	470201209	SEAL	470201209 SEAL	-	1	Enquire
012	470201521D	NON-RETURN VALVE	470201521D NON-RETURN VALVE	-	1	Enquire
013	470298013	PRESS-FIT NUT	470298013 PRESS-FIT NUT	-	2	Enquire
014	N10430104	HEXAGON SOCKET FLAT HEAD BOLT	N10430104 HEXAGON SOCKET FLAT HEAD BOLT	-	5	Enquire
015	400201211	EARTHING STRAP	400201211 EARTHING STRAP	-	1	Enquire
016	470201787D	CONNECTING PIPE	470201787D CONNECTING PIPE	-	1	Enquire
017	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	-	8	Enquire
018	N91104001	SPRING BAND CLAMP	N91104001 SPRING BAND CLAMP	-	2	Enquire
019	470201259	PROTECTION	470201259 PROTECTION	-	1	Enquire
020	470201615J	PROTECTION	470201615J PROTECTION	-	1	Enquire
021	470298012	LOCKING WASHER	470298012 LOCKING WASHER	-	2	Enquire
