FRAME FLOOR PANELS of Lamborghini Lamborghini Aventador LP750 SV Roadster

View All

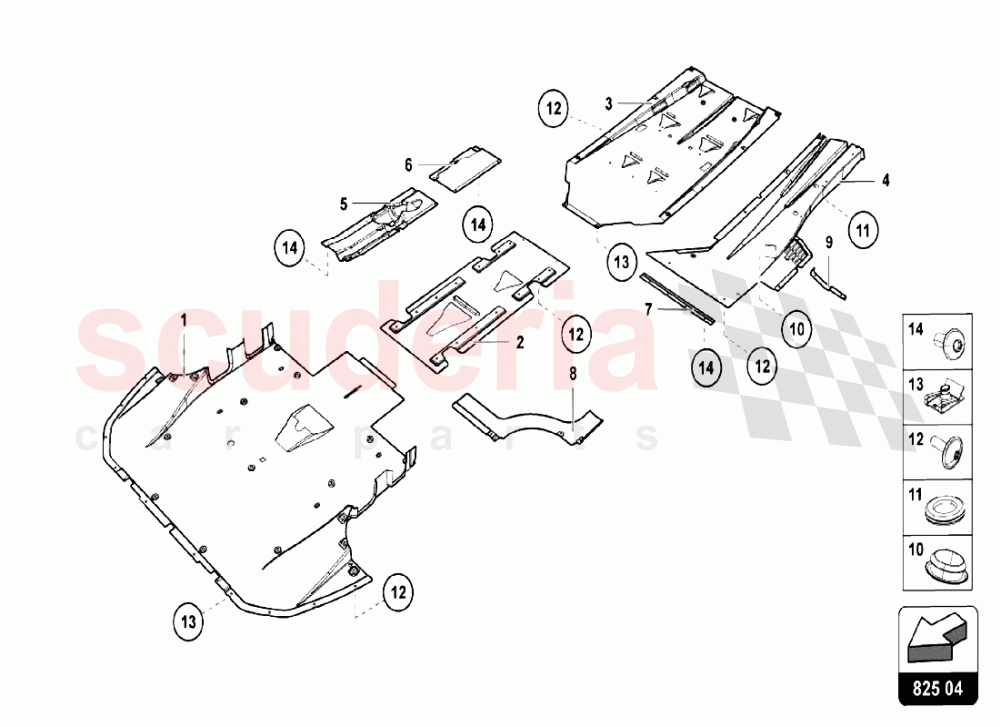

Lamborghini Aventador LP750 SV Roadster - FRAME FLOOR PANELS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470825189F	UNDERBODY TRIM	470825189F UNDERBODY TRIM	-	1	Enquire
002	470803969B	SCREENING PART INF.TUNNEL	470803969B SCREENING PART INF.TUNNEL	-	1	Enquire
003	470825210D	Underbody Trim (rear Center)	470825210D Underbody Trim (rear Center)	-	1	Enquire
004	470825212C	STREAMLINE SHROUD, REAR RH (CONTACT YOUR AREA MANAGER)	470825212C STREAMLINE SHROUD, REAR RH (CONTACT YOUR AREA MANAGER)	-	1	Enquire
004	470825211C	STREAMLINE SHROUD, REAR LH (CONTACT YOUR AREA MANAGER)	470825211C STREAMLINE SHROUD, REAR LH (CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	470803980C	Tunnel Trim (front, Inner)	470803980C Tunnel Trim (front, Inner)	-	1	Enquire
006	470803962A	Tunnel Trim (rear, Inner)	470803962A Tunnel Trim (rear, Inner)	-	1	Enquire
007	470801383A	REINFORCEMENT	470801383A REINFORCEMENT	-	2	Enquire
008	470801138	STREAMLINE SHROUD RH (CONTACT YOUR AREA MANAGER)	470801138 STREAMLINE SHROUD RH (CONTACT YOUR AREA MANAGER)	-	1	Enquire
008	470801137	STREAMLINE SHROUD LH (CONTACT YOUR AREA MANAGER)	470801137 STREAMLINE SHROUD LH (CONTACT YOUR AREA MANAGER)	-	1	Enquire
009	470853887A	SPOILER	470853887A SPOILER	-	1	Enquire
009	470853888A	SPOILER	470853888A SPOILER	-	1	Enquire
010	470804998	BUNGS	470804998 BUNGS	-	4	Enquire
011	400821190	GROMMET	400821190 GROMMET	-	4	Enquire
012	N91188301	HEXAGON SOCKET HEAD BOLT M6 X 20	N91188301 HEXAGON SOCKET HEAD BOLT M6 X 20	-	66	Enquire
013	N90688703	SPEED NUT	N90688703 SPEED NUT	-	14	Enquire
014	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
