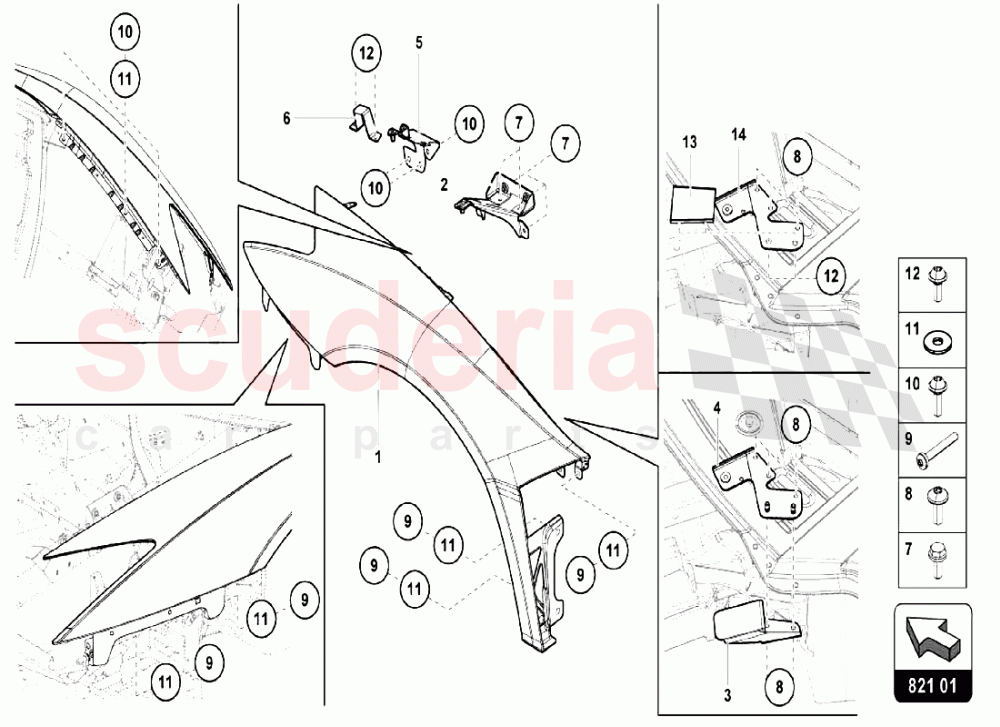

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470821021B	WING	470821021B WING	-	1	Enquire
001	470821022B	WING	470821022B WING	-	1	Enquire
002	470823663A	LEFT SUPPORT	470823663A LEFT SUPPORT	-	1	Enquire
002	470823664B	BRACKET	470823664B BRACKET	-	1	Enquire
003	470810438B	CARRIER	470810438B CARRIER	-	1	Enquire
003	470810437B	CARRIER	470810437B CARRIER	-	1	Enquire
004	470810679A	BRACKET - FENDER	470810679A BRACKET - FENDER	-	1	Enquire
004	470810680A	BRACKET - FENDER	470810680A BRACKET - FENDER	-	1	Enquire
005	470810863B	CARRIER	470810863B CARRIER	-	1	Enquire
005	470810864B	CARRIER	470810864B CARRIER	-	1	Enquire
006	470823228	CARRIER	470823228 CARRIER	-	1	Enquire
006	470823227	CARRIER	470823227 CARRIER	-	1	Enquire
007	N10006706	HEXAGON HEAD BOLT (COMBI)	N10006706 HEXAGON HEAD BOLT (COMBI)	-	8	Enquire
008	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	10	Enquire
009	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT	-	12	Enquire
010	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	6	Enquire
011	N0116945	WASHER	N0116945 WASHER	-	18	Enquire
012	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI)	-	8	Enquire
013	470810438B	CARRIER	470810438B CARRIER	-	1	Enquire
013	470810437B	CARRIER	470810437B CARRIER	-	1	Enquire
014	470810680A	BRACKET - FENDER	470810680A BRACKET - FENDER	-	1	Enquire
014	470810679A	BRACKET - FENDER	470810679A BRACKET - FENDER	-	1	Enquire
