Lamborghini Aventador LP700 Coupe - Front Tunnel 2

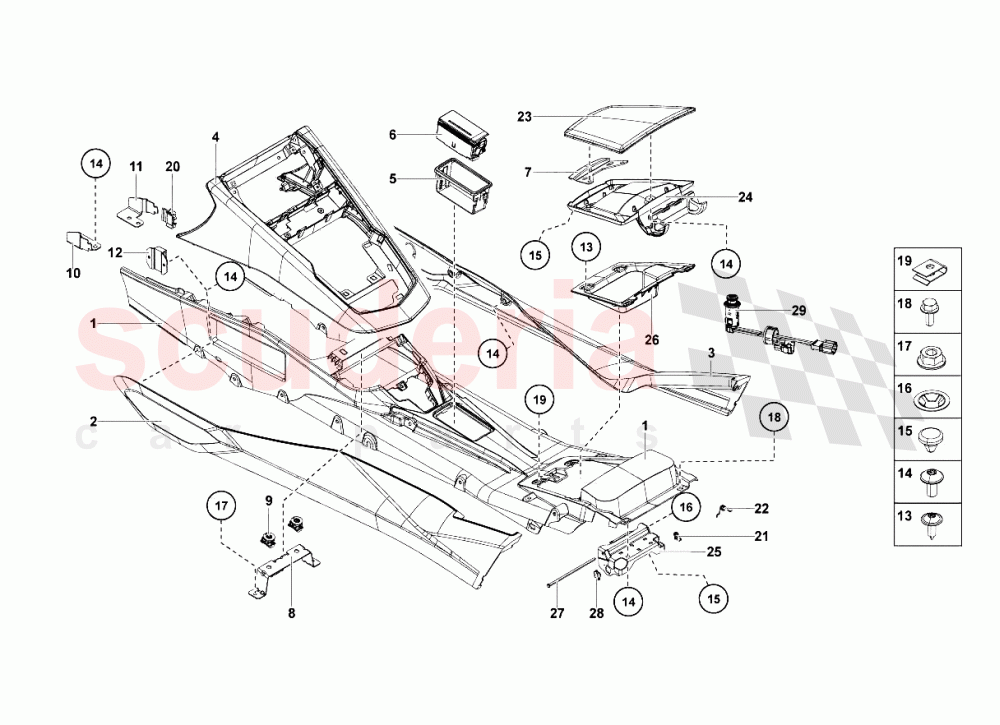

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	471863242A	Centre Console (with Ashtray - Leather Interior - Supply Vin )	471863242A Centre Console (with Ashtray - Leather Interior - Supply Vin )	-	1	Enquire
001	471863242B	Centre Console (without Ashtray - Leather Interior -supply Vin )	471863242B Centre Console (without Ashtray - Leather Interior -supply Vin )	-	1	Enquire
002	470863667	Side Panel Trim For Centre Console (leather Interior -supply Vin)	470863667 Side Panel Trim For Centre Console (leather Interior -supply Vin)	-	1	Enquire
002	470863667A	Side Panel Trim For Centre Console (alcantara Upholstery - Supply Vin)	470863667A Side Panel Trim For Centre Console (alcantara Upholstery - Supply Vin)	-	1	Enquire
003	470863668A	Side Panel Trim For Centre Console (alcantara Upholstery - Supply Vin)	470863668A Side Panel Trim For Centre Console (alcantara Upholstery - Supply Vin)	-	1	Enquire
003	470863668	Side Panel Trim For Centre Console (leather Interior -supply Vin)	470863668 Side Panel Trim For Centre Console (leather Interior -supply Vin)	-	1	Enquire
004	470863315A	Lining For Console (leather Interior - Supply Vin)	470863315A Lining For Console (leather Interior - Supply Vin)	-	1	Enquire
005	472863849	CORNER TRIM	472863849 CORNER TRIM	-	1	Enquire
006	4G8857406A6PS	ASHTRAY	4G8857406A6PS ASHTRAY	-	1	Enquire
007	470868186	T-BAR	470868186 T-BAR	-	1	Enquire
008	470863253	ATTACHMENT BARS	470863253 ATTACHMENT BARS	-	1	Enquire
009	8E0806193	COMPENSATING PIECE	8E0806193 COMPENSATING PIECE	-	1	Enquire
010	470863583	ATTACHMENT BARS	470863583 ATTACHMENT BARS	-	1	Enquire
011	470863584	ATTACHMENT BARS	470863584 ATTACHMENT BARS	-	1	Enquire
012	470863346	BRACKET	470863346 BRACKET	-	2	Enquire
013	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
014	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	-	16	Enquire
015	N91092001	RUBBER STOP 4.50X2.2X8.60	N91092001 RUBBER STOP 4.50X2.2X8.60	-	2	Enquire
016	N90657502	CLAMPING WASHER	N90657502 CLAMPING WASHER	-	1	Enquire
017	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT	-	3	Enquire
018	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	2	Enquire
019	N0154487	SPEED NUT	N0154487 SPEED NUT	-	4	Enquire
020	4D0857949A	GROMMET	4D0857949A GROMMET	-	2	Enquire
021	400863285	LEFT SPRING	400863285 LEFT SPRING	-	1	Enquire
022	400863286	RIGHT SPRING	400863286 RIGHT SPRING	-	1	Enquire
023	470863761	COVER FOR DRAWER	470863761 COVER FOR DRAWER	-	1	Enquire
023	470863761A	Cover For Drawer (alcantara Upholstery - Supply Vin-alcantara)	470863761A Cover For Drawer (alcantara Upholstery - Supply Vin-alcantara)	-	1	Enquire
024	470863273A	TRIM	470863273A TRIM	-	1	Enquire
025	470861871A	Lid Fixing Bracket	470861871A Lid Fixing Bracket	-	1	Enquire
026	470863300	Glove Compartment	470863300 Glove Compartment	-	1	Enquire
027	470863348	PIN	470863348 PIN	-	1	Enquire
028	418880324	BRAKE ELEMENT	418880324 BRAKE ELEMENT	-	2	Enquire
029	8J0919303	CIGARETTE LIGHTER	8J0919303 CIGARETTE LIGHTER	-	1	Enquire
029	8J0919303A	SOCKET	8J0919303A SOCKET	-	1	Enquire
