Front Tunnel 1 of Lamborghini Lamborghini Aventador LP700 Coupe

View All

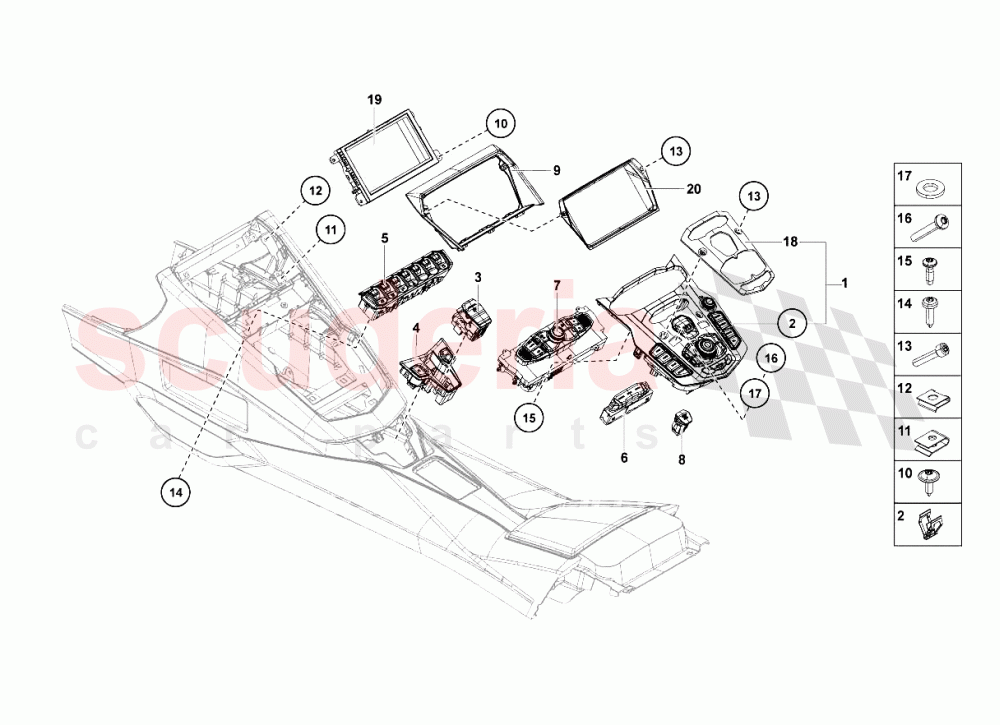

Lamborghini Aventador LP700 Coupe - Front Tunnel 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	903654765	LHD Tunnel cover	903654765 LHD Tunnel cover	-	1	Enquire
001	470919609	OPERATING UNIT FOR MULTIMEDIA SYSTEM -MMI- WITH JOYSTICK	470919609 OPERATING UNIT FOR MULTIMEDIA SYSTEM -MMI- WITH JOYSTICK	-	1	Enquire
002	1J0858137B	CLIP	1J0858137B CLIP	-	6	Enquire
003	470927225	SWITCH FOR ELECTROMECHANICAL PARKING BRAKE -EPB	470927225 SWITCH FOR ELECTROMECHANICAL PARKING BRAKE -EPB	-	1	Enquire
004	470863347	MULTIPLE SWITCH - E-GEAR - RM	470863347 MULTIPLE SWITCH - E-GEAR - RM	-	1	Enquire
005	471941567	MULTIPLE SWITCH	471941567 MULTIPLE SWITCH	-	1	Enquire
005	471941567A	MULTIPLE SWITCH (REAR VIEW CAMERA - PARK SENSOR)	471941567A MULTIPLE SWITCH (REAR VIEW CAMERA - PARK SENSOR)	-	1	Enquire
006	470959674	Multiple Switch (drive Select)	470959674 Multiple Switch (drive Select)	-	1	Enquire
007	470820043	Display And Control Panel For Electronically Controlled Air Conditioning (not Heated Seats)	470820043 Display And Control Panel For Electronically Controlled Air Conditioning (not Heated Seats)	-	1	Enquire
007	470820043A	DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (NOT HEATED SEATS)	470820043A DISPLAY AND CONTROL PANEL FOR ELECTRONICALLY CONTROLLED AIR CONDITIONING (NOT HEATED SEATS)	-	1	Enquire
008	470905217	Pushbutton For Start System	470905217 Pushbutton For Start System	-	1	Enquire
009	470863567	CORNER TRIM	470863567 CORNER TRIM	-	1	Enquire
010	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
011	N0154487	SPEED NUT	N0154487 SPEED NUT	-	4	Enquire
012	N90526602	SPEED NUT	N90526602 SPEED NUT	-	2	Enquire
013	WHT003088	HEXAGON SOCKET FLAT HEAD BOLT	WHT003088 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
014	N10656302	HEXAGON SOCKET OVAL HEAD BOLT	N10656302 HEXAGON SOCKET OVAL HEAD BOLT	-	2	Enquire
015	N10625802	HEXAGON SOCKET FLAT HEAD BOLT	N10625802 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
016	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	-	2	Enquire
017	N01152427	WASHER	N01152427 WASHER	-	2	Enquire
018	470907047	ORNAMENT	470907047 ORNAMENT	-	1	Enquire
019	8F0919604	DISPLAY UNIT FOR MULTIMEDIA INTERFACE 'MMI'	8F0919604 DISPLAY UNIT FOR MULTIMEDIA INTERFACE 'MMI'	-	1	Enquire
020	470919180	ORNAMENT	470919180 ORNAMENT	-	1	Enquire
021	470941531	MULTIPLE SWITCH (LIGHTS)	470941531 MULTIPLE SWITCH (LIGHTS)	-	1	Enquire
