Name: DOOR SEALS
Rating: 5.0 (1 reviews)

View All

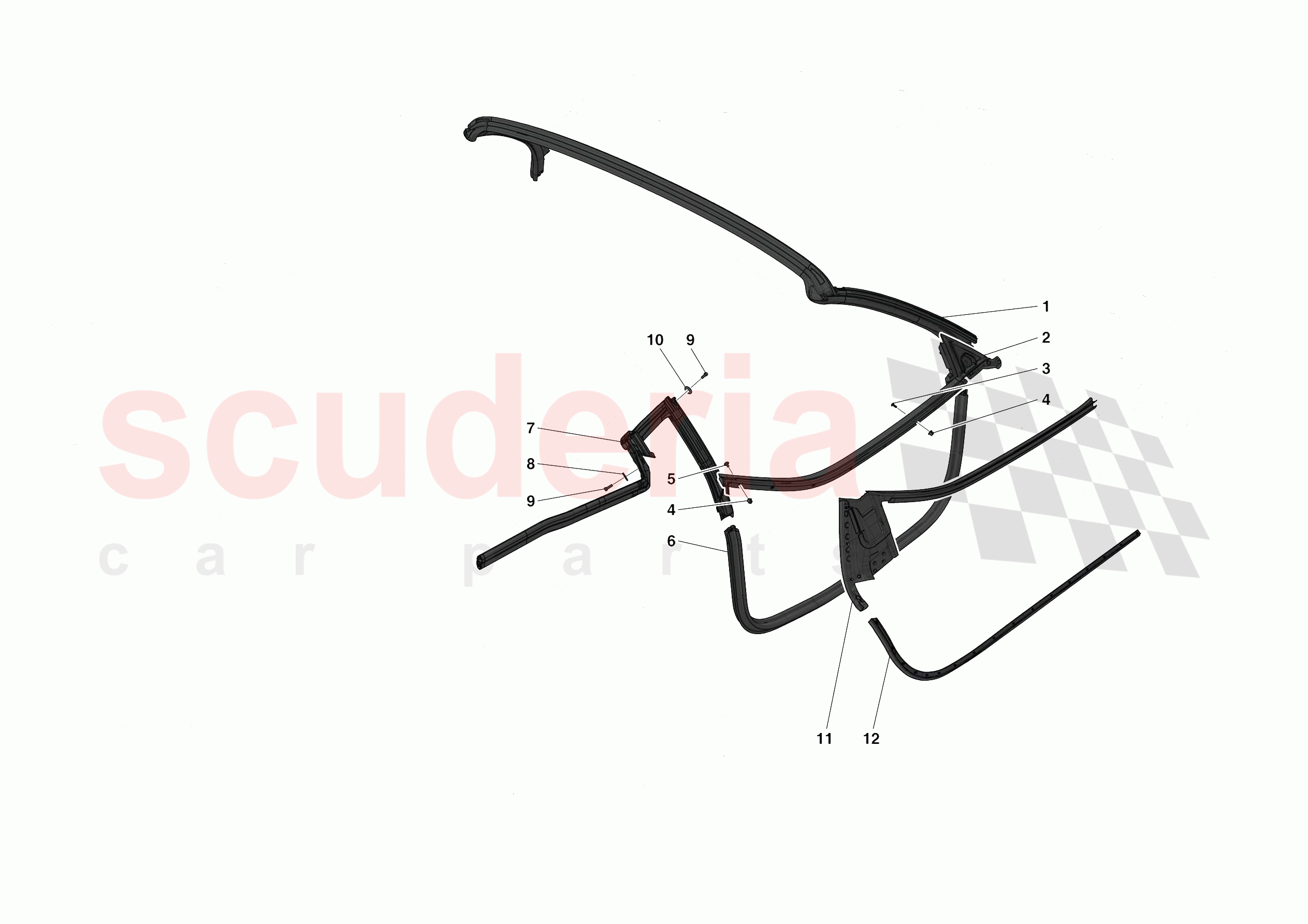

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	857095	WINDSCREEN PERIMETER SEAL	$834.47	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	898528	LOWER DOOR PERIMETER SEAL	$198.66	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	14304287	SCREW	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	917632	RH DOOR UPPER INNER PERIMETER SEAL	$304.63	To Order
	917630	LH DOOR UPPER INNER PERIMETER SEAL	$331.13	To Order

Photo	Part No	Description	Price (each)	Stock
	917633	RH DOOR LOWER INNER PERIMETER SEAL	$211.92	To Order
	917631	LH DOOR LOWER INNER PERIMETER SEAL	$211.92	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	857095	WINDSCREEN PERIMETER SEAL	857095 WINDSCREEN PERIMETER SEAL	$834.47	1
0002	898546	RH DOOR OUTER PERIMETER SEAL	898546 RH DOOR OUTER PERIMETER SEAL	$503.33	1
0002	898529	LH DOOR OUTER PERIMETER SEAL	898529 LH DOOR OUTER PERIMETER SEAL	$476.84	1
0003	15689601	SCREW	15689601 SCREW	$0.24	14
0004	14115885	BLOCK	14115885 BLOCK	$0.16	16
0005	15689601	SCREW	15689601 SCREW M8 X 13	$0.24	2
0006	898528	LOWER DOOR PERIMETER SEAL	898528 LOWER DOOR PERIMETER SEAL	$198.66	2
0007	981930	RH DOOR PERIMETER SEAL	981930 RH DOOR PERIMETER SEAL	$397.36	1
0007	981928	LH DOOR PERIMETER SEAL	981928 LH DOOR PERIMETER SEAL	$397.36	1
0008	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5	$0.28 MSRP: ~~0.50~~ (44% off)	2
0009	14304287	SCREW	14304287 SCREW M5 X 16	$0.36	4
0010	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
0011	917632	RH DOOR UPPER INNER PERIMETER SEAL	917632 RH DOOR UPPER INNER PERIMETER SEAL	$304.63	1
0011	917630	LH DOOR UPPER INNER PERIMETER SEAL	917630 LH DOOR UPPER INNER PERIMETER SEAL	$331.13	1
0012	917633	RH DOOR LOWER INNER PERIMETER SEAL	917633 RH DOOR LOWER INNER PERIMETER SEAL	$211.92	1
0012	917631	LH DOOR LOWER INNER PERIMETER SEAL	917631 LH DOOR LOWER INNER PERIMETER SEAL	$211.92	1
